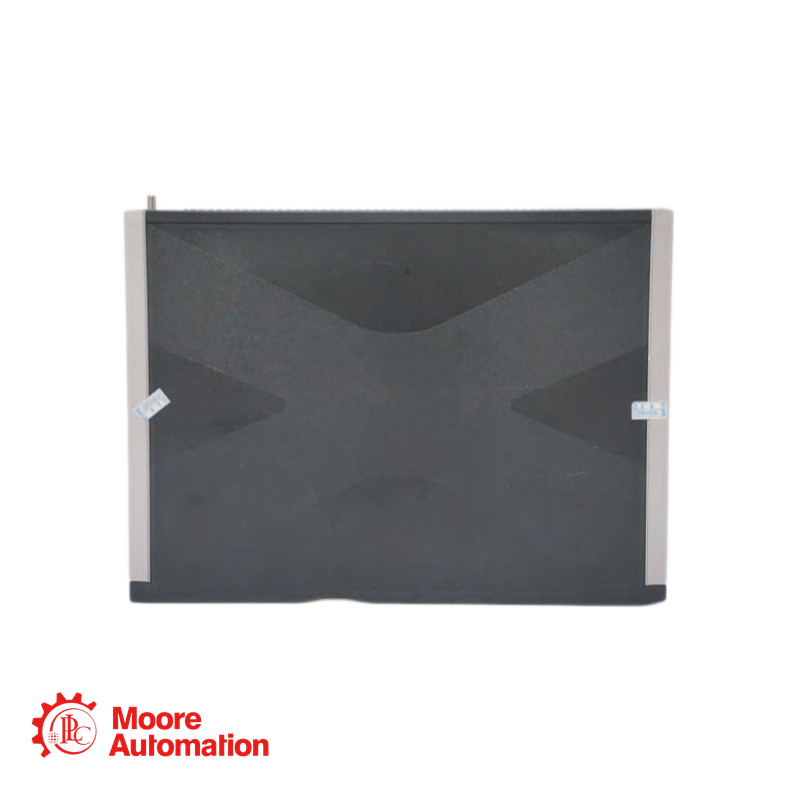

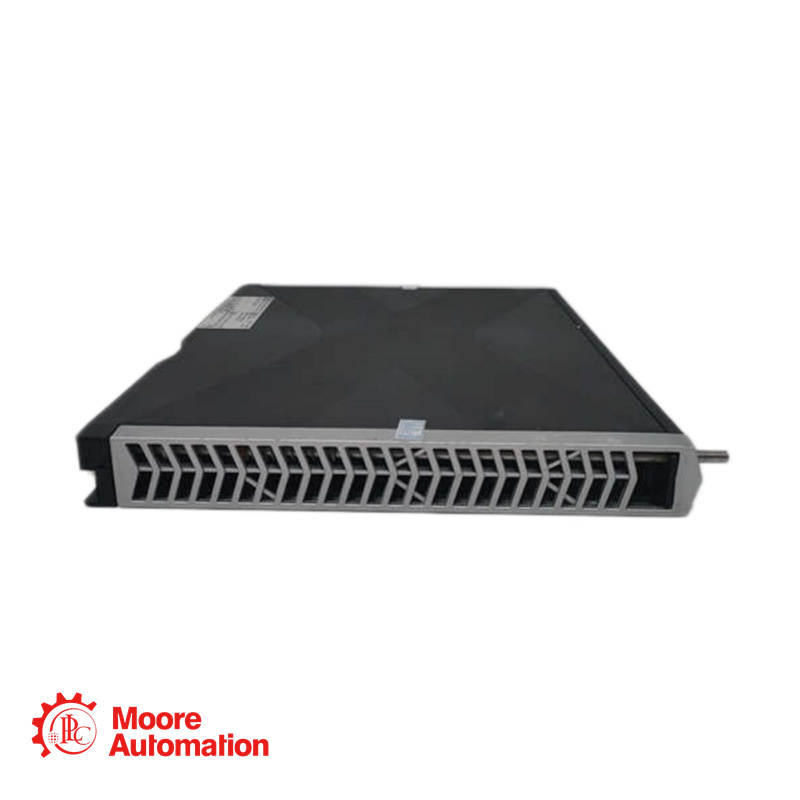

HIMA HIMAX X-AI 32 01 Analog Input Module

Contact Here!

Sales Manager Frida ★★★★★

Description

• The HIMAX X-AI 32 01 is a high-density analog input module for the HIMax safety system. Each of the 32 channels measures current from 0/4...20 mA transmitters and provides a short-circuit-proof transmitter supply.

Specification

●Supply voltage:24 VDC
●Operating temperature:0...+60 °C
●Storage temperature:-40...+85 °C
●Nominal range:0/4...20 mA
●Digital resolution:12-bit
●Shunt for current measurement:200 Ω
●Maximum permitted current via shunt:50 mA
●Withstand voltage of the input:≤ 10 VDC
●Number of transmittersupplies:32

Application

The HIMAX X-AI 32 01 is widely used in:

Process Industry:Chemical, petrochemical, pharmaceutical

Oil & Gas:Fire and gas detection systems, pipeline monitoring, wellhead control

Power Generation:Turbine control, boiler protection, burner management

Railway:Signal control, level crossing protection, rolling stock safety systems

Building Automation:Fire alarm systems

FAQ for HIMAX X-AI 32 01

• Q1: How many transmitter supplies can be short-circuited simultaneously?

A: Up to 12 transmitter supplies can be short-circuited at the same time. If more than 12 supplies are short-circuited for longer than 3 seconds, the entire transmitter supply for the module is switched off. If the overload disappears within 30 seconds, the supply is automatically switched back on.

• Q2: What are the default open-circuit and short-circuit thresholds?

A: Per NAMUR Recommendation NE 43:
Open-circuit (OC Limit): 3.6 mA (36,000 digits) – channel LED turns OFF
Short-circuit (SC Limit): 21.3 mA (213,000 digits) – channel LED blinks (Blinking2)
Both thresholds are configurable in SILworX.
