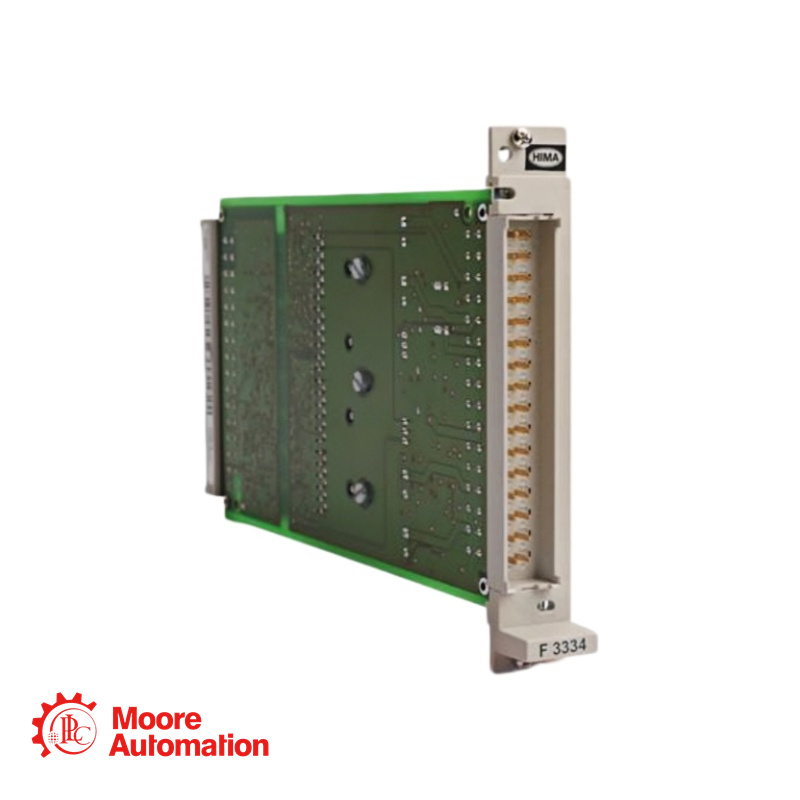

HIMA F3334 is a Fold Output Module with lamp connection up to 25 W, with integrated safety shutdown.
Marque :
HIMANuméro d'article :
F3334Lester :
0.14kgDimension :
1,2x19x12.8cmPays d'origine :
GermanyCode SH :
8537101190La description :
Fold Output Module
The F 3334 module is automatically tested during operation.
The main test routines are:
– Reading back of the output signals. The operating point of the 0 signal read back is ≤ 6,5 V. Up to this value the level of the 0 signal may arise in case of a fault and this will not be detected
– Switching capability the test signal and cross-talking (walking-bit test)
– line monitoring.
resistive load or inductive load up to 2 A (48 W),
lamp connection up to 25 W, with integrated safety shutdown,
with safe isolation, with line monitoring,
no output signal with break of the L- supply
requirement class AK 1 ... 6
▷CONTACT INFO: Frida - Sales Manager
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
▷SPECIFICATIONS
Outputs:2 A, k short circuit proof Internal voltage drop max.:2 V at 2 A load Admissible line resistance (in + out) max.:3.6 Ohm Undervoltage tripping at:≤ 16 V Operating points short circuit current:2.6 ... 5 A line break:0.5 ... 9.5 mA Outp. leakage current max.:550 µA Output voltage if output is reset max.:1.5 V Current input WD max.:30 mA Duration of the test signal max.:250 µs Space requirement:4 TE Operating data:5 V DC: 130 mA 24 V DC: 130 mA in add. Load
