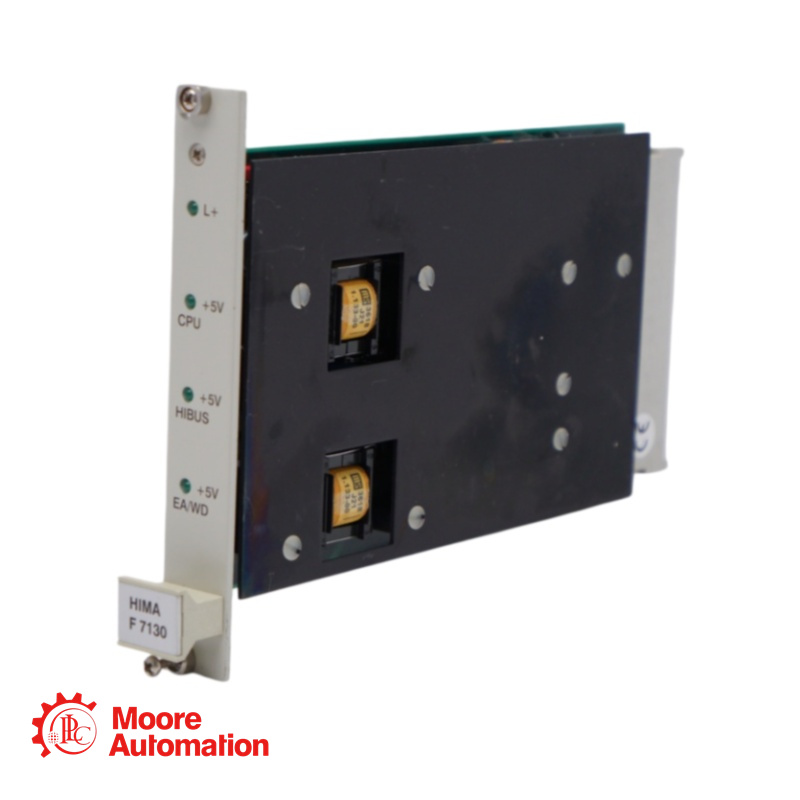

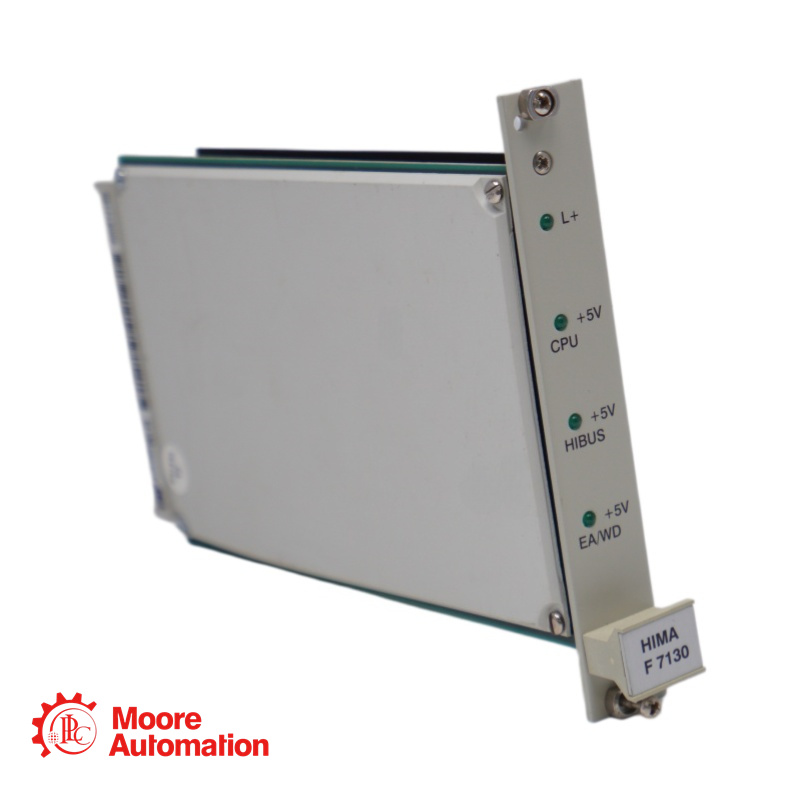

The F7130 is a power supply module for the HIMA PES H41q system.
Marque :
HimaNuméro d'article :
F 7130Lester :
0.3 kgDimension :
12.7x2.5x20.3cmPays d'origine :
USACode SH :
8537101190La description :
Power Supply Module
Brand
HIMA
Part number
F 7130
Origin
USA
Description
Power Supply Module
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Description of F 7130
The F7130 is a power supply module for the HIMA PES H41q system. It is a DC/DC converter that supplies the H41q with 5 VDC from a 24 VDC main supply. The module features electrical isolation between input and output voltage, overvoltage protection, current limitation, and short-circuit proof outputs.
Parameter
Input voltage:24 VDC, –15% … +20%, rpp < 15%
Primary fuse:5 A gL
Output (central device / I/O modules):5 VDC, ±0.25 V / 10 A
Output (HIBUS):5 VDC, ±0.25 V / 1 A
Efficiency rate: ≥ 70%
FAQ
What is the F7130 used for?
A: It supplies the HIMA H41q PES with 5 VDC power derived from a 24 VDC input supply.
What are the output specifications?
A: – 5 VDC, ±0.25 V / 10 A for central device and I/O modules
– 5 VDC, ±0.25 V / 1 A for HIBUS interface
Are the outputs short-circuit protected?
A: Yes, the outputs are short-circuit proof.
How do I know the module is working properly?
A: LEDs on the front plate indicate input voltage (L+) and output voltages. Even if the 5 V CPU/EA LED illuminates only slightly, proper operation is still assured.
What is the space requirement?
A: 4 SU (spacing units = 4 × 5.08 mm = approx. 20.3 mm width).
Benefits
The product offers a number of benefits, including:
· Wide input voltage range
· High output current
· Overvoltage protection
· Undervoltage protection
· Short-circuit protection
· Safety approvals
· Compact and lightweight design
