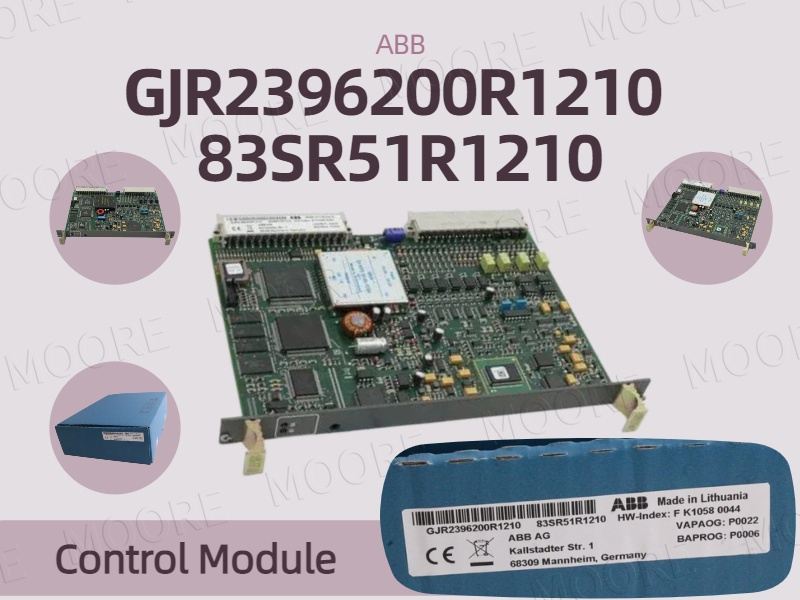

ABB 83SR51R1210 Control Module: Detailed I/O Configuration and Field Control Capabilities

Mar 27, 2026

What Role Does the 83SR51R1210 Play in the Procontrol P14 System?
The ABB 83SR51R1210 control module, product ID GJR2396200R1210, belongs to the Procontrol P14 control system and is classified as an I/O module used for field signal processing. It is positioned between field devices and the controller, handling both input acquisition and output execution. The module is listed under control and communication components within the P14 architecture and is designed for direct integration into existing racks without additional interface layers.

How Is the Internal Channel Structure Configured?
The module contains two independent channels for binary and analog control. Each channel is configured with 4 digital inputs, 1 digital output, 2 analog inputs, and 1 analog output. Based on this structure, the module provides a total of 12 input channels and 2 output channels. The channel types are defined as AX and DX, supporting both analog and digital signal handling within the same hardware. This configuration allows simultaneous acquisition of status signals and transmission of control signals through a single module.

What Are the Physical and Technical Specifications?
The hardware dimensions are fixed at 198 mm in depth, 261 mm in height, and 20 mm in width. The total net weight is 0.55 kg. These parameters determine installation spacing and cabinet layout in control systems using P14 racks. The module does not include any internal battery. It complies with EU Directive 2011/65/EU (RoHS) and is categorized under WEEE as small equipment with dimensions below 50 cm. The customs classification falls under electronic integrated circuits and controller-related components.

Which Types of Actuators Can Be Controlled Directly?
The 83SR51R1210 is designed to interface directly with multiple actuator types used in industrial systems. These include electrohydraulic actuators, electropneumatic actuators, and electric motor-driven actuators. The presence of both analog outputs and digital outputs allows it to send control signals while receiving feedback through analog and digital inputs, forming a closed control loop within the module's I/O structure.

How Is the Module Used in System Integration?

Within a Procontrol P14 system, this module is installed as part of the control module group and connected to higher-level controllers through the system backplane. It operates together with communication modules and power supply units, but its function is limited to signal input and output handling. Expansion is achieved by adding additional Distributed Control System modules of the same series, as the system structure supports multiple DCS spare parts working in parallel. The fixed channel configuration and defined signal types determine how it is assigned in engineering design and field wiring.

What Is the Current Stock Situation for This Series?
The Procontrol P14 control module series is kept in stock for long-term supply support. Common industrial automation parts are available for immediate shipment:

GJR2397800R0100 81AR01A-E Relay Output Module

GJR2368900R1550 87TS01K-E Digital I/O Module

GJR2389800R1210 81ET03N-E Temperature Input Module

GJR2392700R1210 83SR07F-E Control Module

GJR2368900R1348 87TS01K-E Coupling Module

GJR2394100R1210 81AA03B-E Analog Output Module

GJR2394100R1210 81AA03C-E Analog Output Module

GJR2391500R1210 81EU01H-E Input Module

GJR2390200R1411 83SR04AE Control Module Universal

GJR2390200R1411 83SR04C-E Control Module Universal

GJR2396200R1210 83SR51E-E Control Module

GJR2396200R1210 83SR51F-E Control Module

All units are stored with standard industrial packaging, and each module is checked before dispatch to confirm model and condition. Orders can be arranged with international couriers including DHL, FedEx, UPS, and TNT, depending on destination and delivery time requirements.

Contact Us:
5 Stars Sales Manager: Frida

Email:sales5@mooreplc.com
Phone/Whatsapp/Wechat:+86 15359408275

We supply ABB GJR2396200R1210 83SR51R1210 with available stock and standard export packaging.
Shipping can be arranged through DHL, FedEx, UPS, or TNT based on destination and delivery requirements.
