SYSTEM ROLE

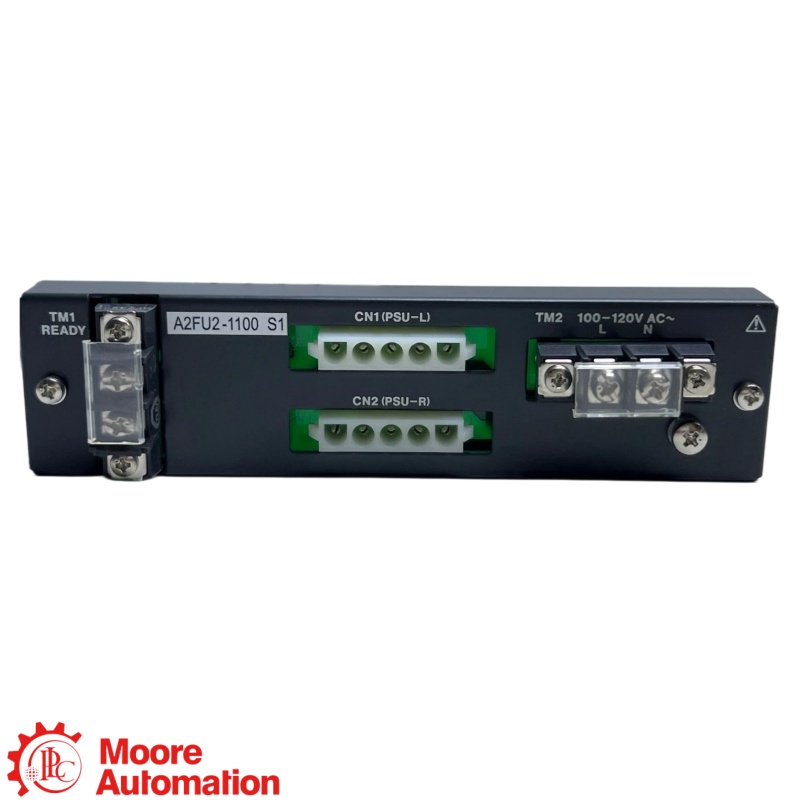

A2FU2‐1100‐S1 · FCU POWER INPUT
A2FU2‐1100‐S1 provides the A2BE1D-based FCU with a primary power-input interface and READY fault-contact output.
The A2FU2‐1100‐S1 is a Yokogawa Primary Power Distribution Unit for FCU use with the A2BE1D base plate. Confirm the complete identifier, 100–120 V AC supply, READY contact wiring and cabinet installation before ordering.
Marque :
YokogawaNuméro d'article :
A2FU2‐1100‐S1La description :
Primary Power Distribution Unit (for FCU)EXACT MODEL · 100–120 V AC · READY CONTACT · M4 TERMINALS
Confirmed values from Yokogawa GS 33J60E60-01EN for the A2FU2 Primary Power Distribution Unit.
Yokogawa GS 33J60E60-01EN identifies A2FU2 as the Primary Power Distribution Unit for FCU use. The -1100 suffix specifies 100–120 V AC, fixed code 1, Basic type and fixed code 0.
Official manufacturer-reference information for the Yokogawa A2FU2‐1100‐S1 Primary Power Distribution Unit (for FCU).
Yokogawa GS 33J60E60-01EN is the official A2FU2 specification. It identifies A2FU2 as the Primary Power Distribution Unit for FCU use and defines the -1100 power and type suffix codes.
OPEN OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Technical statements on this page are derived from Yokogawa GS 33J60E60-01EN.
Yokogawa is the brand; A2FU2‐1100‐S1 is a Primary Power Distribution Unit for FCU use; -1100 identifies the documented supply and type codes, while the appended S1 marking should be checked on the nameplate.
A2FU2‐1100‐S1 provides the A2BE1D-based FCU with a primary power-input interface and READY fault-contact output.
Confirm the 100–120 V AC input, M4 screw terminals, READY NC/C contact wiring, A2BE1D mounting and keyed metallic cabinet before commissioning.

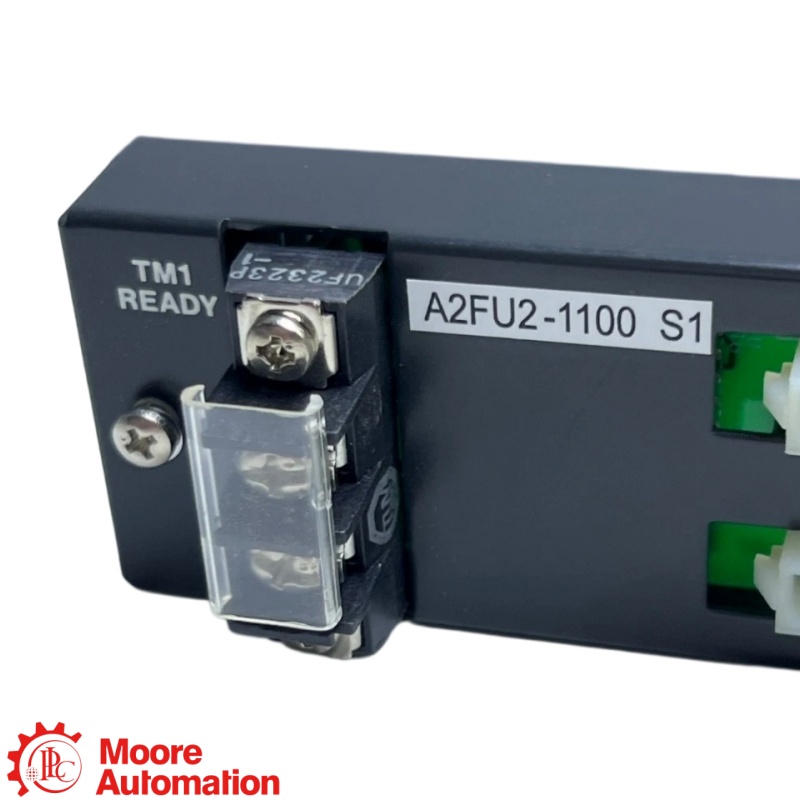

Yokogawa specifies two READY terminals (NC and C); the contact opens during FCU failure and is rated 30 V DC, maximum 0.3 A.
Match A2FU2‐1100‐S1 to the complete Yokogawa product label, -1100 suffix and installed hardware record.
Document the A2BE1D FCU base plate, 100–120 V AC source, M4 power terminals, READY contact terminals, cabinet and wiring.
Use the complete identifier, GS 33J60E60-01EN official specification, nameplate photographs and installed-system record to verify identity.
Do not substitute another catalog number until the complete identifier, supply voltage, A2BE1D fit, terminal arrangement and READY contact requirements are verified.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
