 /Woodward 8440-2280 easYgen-3100XT-P1-LITE Genset Controller

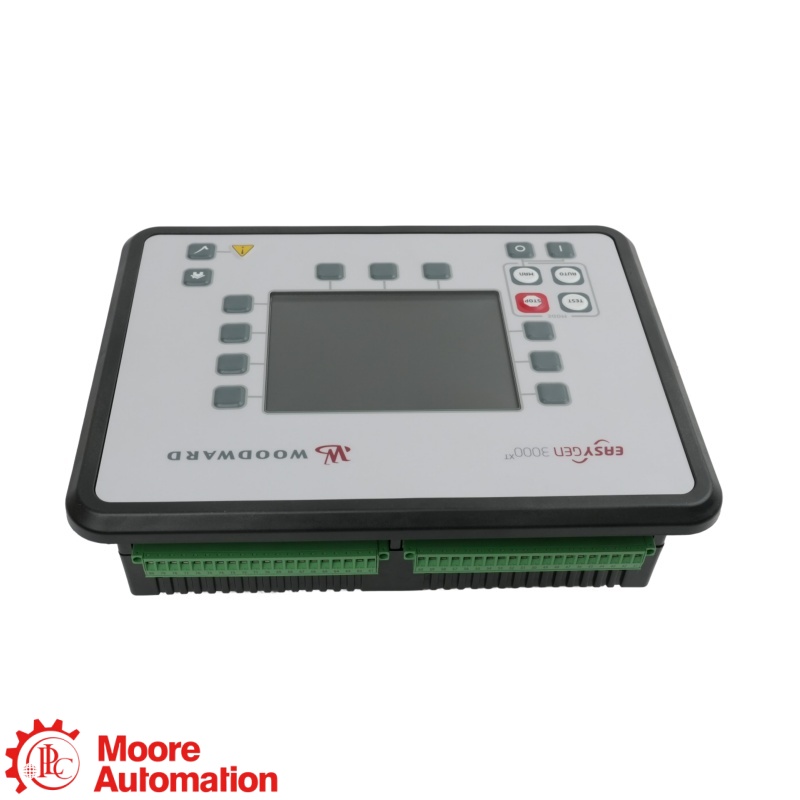

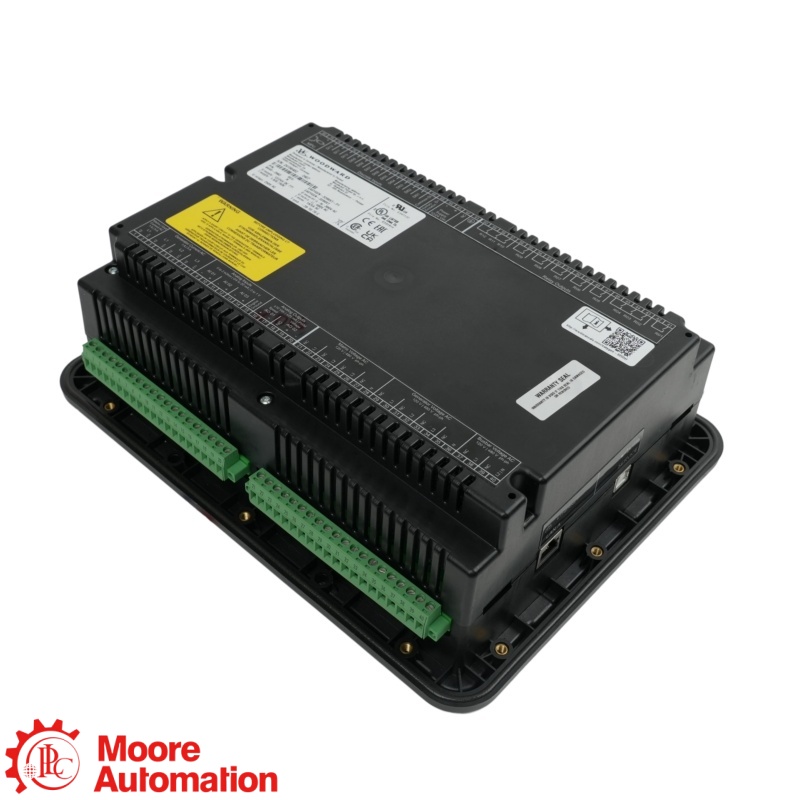

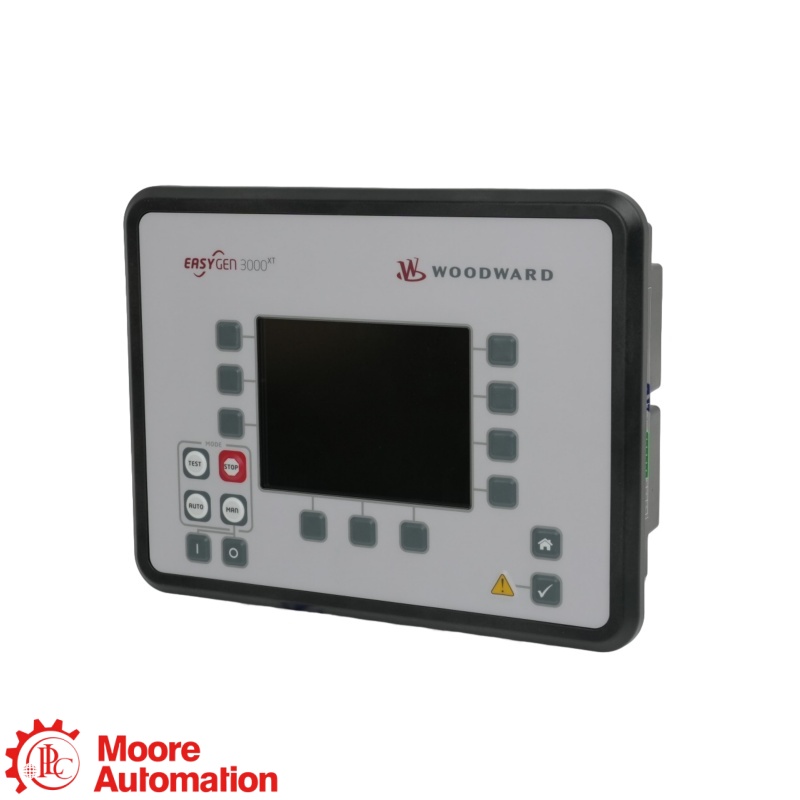

Woodward 8440-2280 easYgen-3100XT-P1-LITE Genset Controller
Woodward 8440-2280 easYgen-3100XT-P1-LITE Genset Controller
Woodward 8440-2280 easYgen-3100XT-P1-LITE Genset Controller

Woodward 8440-2280 easYgen-3100XT-P1-LITE Genset Controller

Woodward easYgen 3000XT · P1-LITE controller

8440-2280

The 8440-2280 is the Woodward easYgen-3100XT-P1-LITE back-panel genset controller for single backup-generator applications. It operates without an integrated HMI and can be paired with an RP-3000XT remote panel when local display and control are required.

DEVICE FAMILYeasYgen-3100XT-P1-LITE
APPLICATIONSingle backup genset
CONFIGURATIONBack-panel · remote HMI
ORDER NUMBER8440-2280
MANUFACTURERWoodward
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
WOODWARD ● GENSET CONTROLLER
Woodward easYgen 3000XT

8440-2280

easYgen-3100XT-P1-LITE · back-panel controller

Single backup genset · P1-LITE control

MODULE ROLE
8440-2280 is the Woodward easYgen-3100XT-P1-LITE controller for single backup gensets. This back-panel unit has no integrated HMI and can use a compatible RP-3000XT remote panel for local operation.
CONFIGURATION NOTE
For 8440-2280, confirm the P1-LITE part number, back-panel installation, RP-3000XT requirement, supply wiring, generator and mains measurements, configured I/O, breaker sequence, firmware and saved application settings.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 8440-2280 reference is identified

8440
Catalog seriesWoodward catalog-series identifier
2280
Exact ordered variantRetain the complete 8440-2280 order number when ordering
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Woodward easYgen 3000XT ↗
easYgen-3100XT-P1-LITE CONTROLLER

Engineering data at a glance

Exact order-number data must be confirmed from the nameplate and the applicable Woodward manual.

CONTROLLEReasYgen-3100XT-P1-LITE
APPLICATIONSingle backup genset
CONFIGURATIONBack-panel · remote HMI
ORDER NUMBER8440-2280
Woodward P1-LITE documentation identifies this exact controller part number.
Verification RequiredConfirm 8440-2280, the back-panel P1-LITE hardware, RP-3000XT interface, supply and I/O wiring, breaker arrangement, project settings and firmware before installation or replacement.
General Information −
BrandWoodward
Part number8440-2280
Product typeeasYgen-3100XT-P1-LITE genset controller
Product familyWoodward easYgen 3000XT
ApplicationSingle backup-generator control
Exact configurationVerification Required
Controller and Installation Checks ＋
Controller formatBack-panel unit without integrated HMI
Local operationUse a compatible RP-3000XT remote panel when required
Power, measurement, I/O and breaker wiringMatch the saved single-genset application and installed wiring
Documentation and Compliance ＋
Family manualseasYgen-3100XT/3200XT P1-LITE Manual B37927
Exact approvalsCheck markings on the 8440-2280 unit
Listings and Approvals ＋
Official family documentation provides compliance context, but do not assume an approval for 8440-2280 without checking the unit marking and applicable installation supplement.
Source: Woodward easYgen-3100XT/3200XT P1-LITE Technical Manual B37927, which identifies part number 8440-2280 as the easYgen-3100XT-P1-LITE controller.
FAQ

Questions Buyers Ask Most

What is 8440-2280 used for?＋

8440-2280 is a Woodward easYgen-3100XT-P1-LITE back-panel genset controller for single backup-generator applications. It must be configured for the installed mains, generator, breaker and I/O arrangement.

Does 8440-2280 include a local display?＋

8440-2280 is the back-panel version without an integrated HMI. Use a compatible RP-3000XT remote panel when local display and operation are required.

What limitations apply to 8440-2280 P1-LITE software?＋

8440-2280 P1-LITE software does not provide busbar voltage measurement, kW/kVAR load sharing, LDSS or import/export control, so it is not suitable for applications requiring those functions.

Can 8440-2280 perform kW or kVAR load sharing?＋

8440-2280 cannot perform kW or kVAR load sharing in the P1-LITE configuration. Select a controller and application package that officially supports load sharing when that function is required.

Which remote panel is used with 8440-2280?＋

8440-2280 can be paired with the Woodward RP-3000XT remote panel for local display and control. Confirm the panel, communication wiring and configured application before commissioning.

What must be checked before replacing 8440-2280?＋

8440-2280 replacement requires verification of the complete part number, back-panel mounting, supply and measurement wiring, breaker outputs, configured I/O, firmware and saved application settings.

What information should be supplied when requesting 8440-2280?＋

For 8440-2280, provide the exact model, quantity, nameplate and revision photos, installed genset and breaker arrangement, power and I/O details, firmware, saved project information and required delivery date.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
8440-2280

Woodward Technical Manual B37927 covers the easYgen-3100XT/3200XT P1-LITE family and identifies 8440-2280 as the easYgen-3100XT-P1-LITE back-panel controller.

Woodward easYgen-3100XT-P1-LITE

Woodward Technical Manual B37927 covers the easYgen-3100XT/3200XT P1-LITE family and identifies 8440-2280 as the easYgen-3100XT-P1-LITE back-panel controller.

OPEN OFFICIAL TECHNICAL MANUAL

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are based on publicly available official Woodward manufacturer documentation.

EASYGEN P1-LITE CONTROL SYSTEM RELATIONSHIP

How 8440-2280 fits the Woodward easYgen P1-LITE system

Woodward is the brand; easYgen-3100XT-P1-LITE is the controller designation; and 8440-2280 is the exact part number for the back-panel version without an integrated HMI.

Woodward · BRAND
Woodward easYgen-3100XT-P1-LITEGENSET CONTROLLER · BACK-PANEL P1-LITE
CONTROLLER PART NUMBER

8440-2280 · easYgen-3100XT-P1-LITE

The 8440-2280 back-panel controller supports single backup-generator applications; verify the installed mains, generator, breaker and I/O configuration.

LOCAL OPERATION

RP-3000XT REMOTE PANEL

Use a compatible RP-3000XT when local display and operation are required; confirm communication wiring and project settings.

APPLICATION LIMITS

P1-LITE FUNCTION SET

P1-LITE does not provide busbar voltage measurement, kW/kVAR load sharing, LDSS or import/export control.

System relationship: verify the complete 8440-2280 nameplate, back-panel installation, RP-3000XT requirement, power and I/O wiring, firmware and saved single-genset application before installation or replacement.
APPLICATION AREAS

Application mind map for 8440-2280

Single Backup GensetControls a compatible single backup-generator application
Remote Operator PanelPairs with a compatible RP-3000XT when local display and operation are needed
APPLICATION CENTER 8440-2280 easYgen-3100XT-P1-LITE
Back-Panel InstallationConfirm mounting, supply, measurement, I/O and breaker wiring
Application CompatibilityMatch firmware, saved settings and P1-LITE functional limits
