THERMOCOUPLE INPUT MODULE
SM 1231 TC
SM 1231 TC acquires four thermocouple signals with 15-bit resolution plus sign.

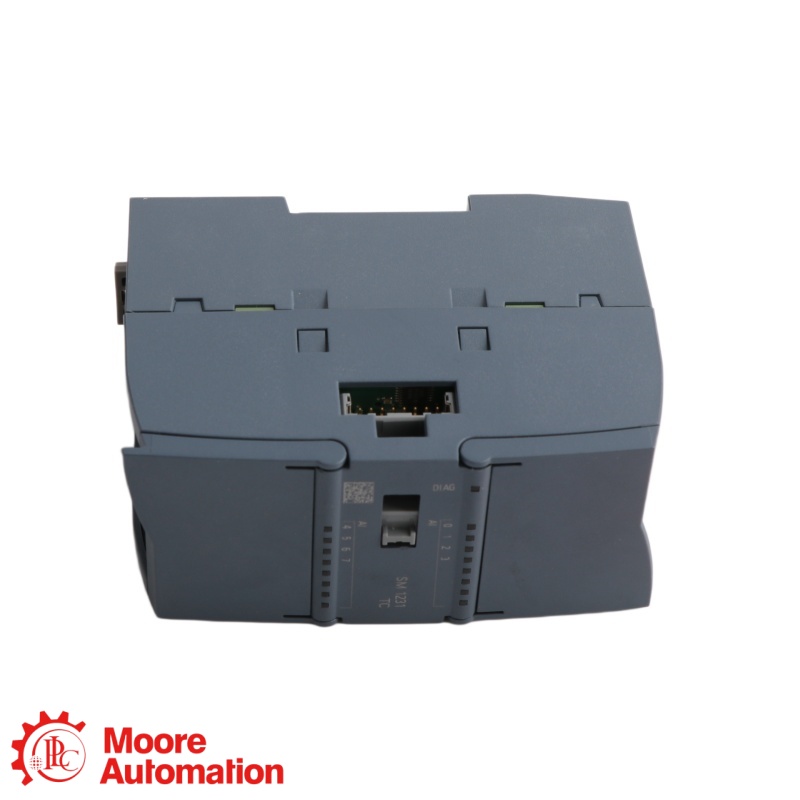

The 6ES7231-5QD32-0XB0 is a Siemens SIMATIC S7-1200 SM 1231 TC analog input module with 4 thermocouple channels, 15-bit resolution plus sign and ±80 mV input capability.
Click “+” to expand more specifications.
Official Siemens documentation for the SIMATIC S7-1200 SM 1231 TC analog input module.
Siemens technical datasheet for 6ES7231-5QD32-0XB0, including thermocouple types, resolution, supply, diagnostics, lifecycle, packaging dimensions and net weight.
OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.
Siemens is the brand; SIMATIC S7-1200 is the PLC family; and 6ES7231-5QD32-0XB0 is the four-channel thermocouple analog input module.
SM 1231 TC acquires four thermocouple signals with 15-bit resolution plus sign.
STEP 7 in TIA Portal is used to select thermocouple types, temperature units, diagnostics and channel processing.
The module supports J, K, T, E, R, S, N, C and TXK/XK(L) thermocouples over a ±80 mV input range.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
