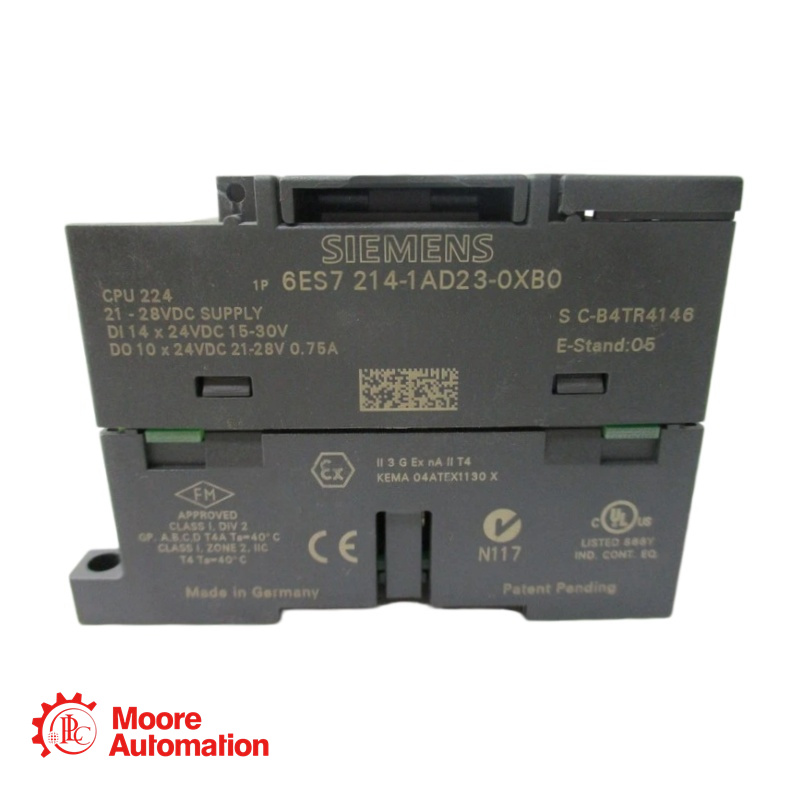

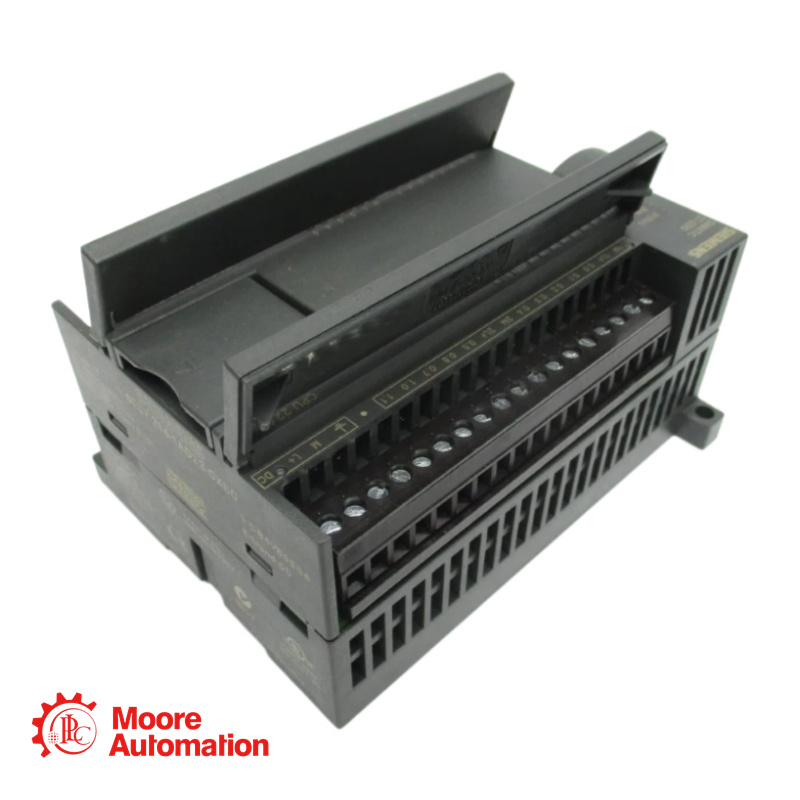

Siemens 6ES7214-1AD23-0XB0 - CPU Module

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

▷SPECIFICATIONS

Rated value (DC):24 V
permissible range, lower limit (DC):20.4 V
permissible range, upper limit (DC):28.8 V
Inrush current, max.:12 A; at 28.8 V
from supply voltage L+, max.:700 mA; 110 mA to 700 mA, output current for expansion modules (5 V DC) 660 mA
Work memory
integrated (for program):12 kbyte; 8 KB with active run-time edit
integrated (for data):8 kbyte

▷ABOUT 6ES7214-1AD23-0XB0 FAQ

What are the basic integrated I/O specifications?

It has 14 Digital Inputs (24V DC) and 10 Digital Outputs (24V DC).
What is the supply voltage requirement?
The rated power supply is 24V DC (permissible range: 20.4V to 28.8V DC).
How much memory is integrated into this CPU?
It includes 12 KB program memory (8 KB if active run-time edit is enabled) and 8 KB data memory.
