 /Siemens 6ES7132-1BL00-0XB0 ET 200L 32-Channel Digital Output Block

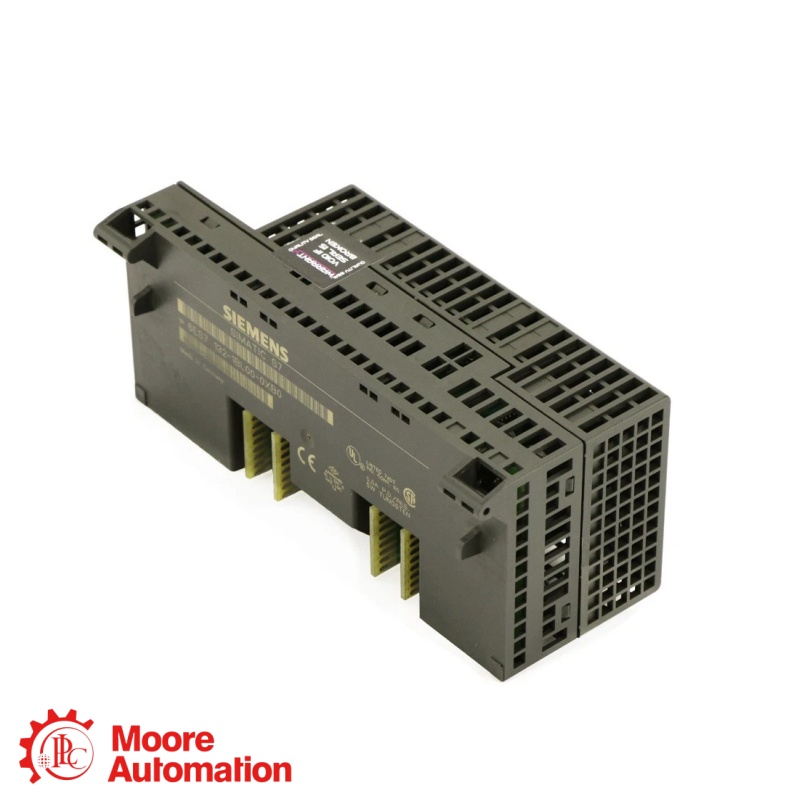

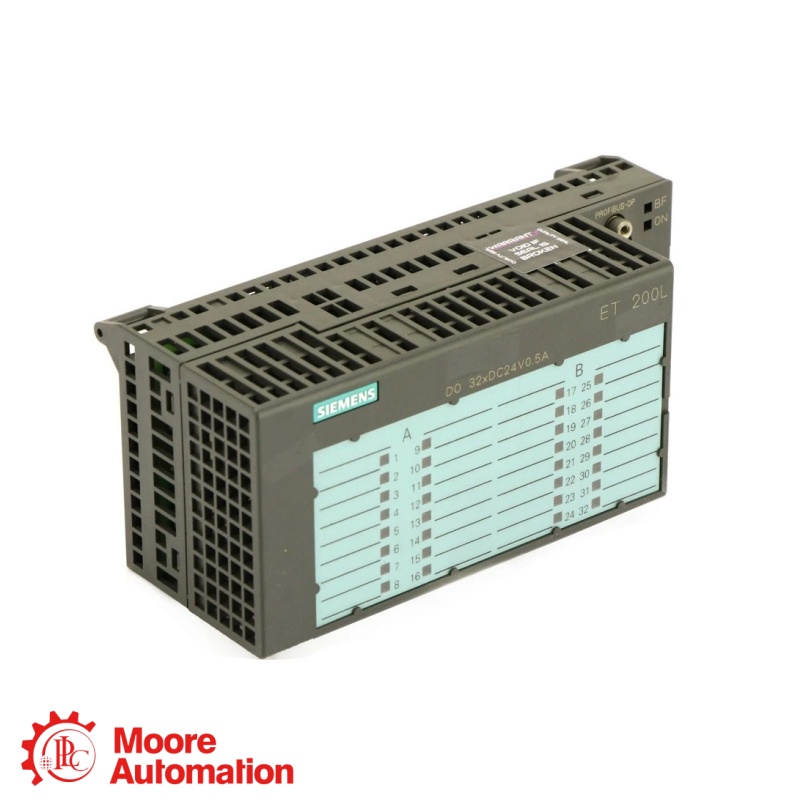

Siemens 6ES7132-1BL00-0XB0 ET 200L 32-Channel Digital Output Block
Siemens 6ES7132-1BL00-0XB0 ET 200L 32-Channel Digital Output Block
Siemens 6ES7132-1BL00-0XB0 ET 200L 32-Channel Digital Output Block

Siemens 6ES7132-1BL00-0XB0 ET 200L 32-Channel Digital Output Block

Siemens SIMATIC ET 200L · Digital Output Block

6ES7132-1BL00-0XB0

The 6ES7132-1BL00-0XB0 is a Siemens SIMATIC ET 200L electronics block with 32 digital outputs in two groups of 16. It uses a 24 V DC rated load voltage and delivers 0.5 A per output.

PRODUCT TYPEDIGITAL OUTPUT BLOCK
LOAD VOLTAGE24 V DC
OUTPUT CURRENT0.5 A / output
OUTPUTS32 · 2 groups
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● ET 200L DIGITAL OUTPUT BLOCK
Siemens SIMATIC ET 200L

6ES7132-1BL00-0XB0

ET 200L · 32-Channel Digital Output Block

ET 200L · 32-Channel Digital Output Block

PRODUCT ROLE
6ES7132-1BL00-0XB0 is a Siemens SIMATIC ET 200L electronics block with 32 digital outputs in two groups of 16, a 24 V DC rated load voltage and 0.5 A per output.
TECHNICAL CONTEXT
For 6ES7132-1BL00-0XB0, Siemens specifies 32 digital outputs, PROFIBUS-DP communication and a 24 V DC rated load voltage. The block mounts on a TB 32L terminal block for stationary wiring.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens ET 200L manual ↗
ET 200L Digital Output Block

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEDIGITAL OUTPUT BLOCK
LOAD VOLTAGE24 V DC
OUTPUT CURRENT0.5 A
OUTPUTS32
Siemens ET 200L manual specifications for 6ES7132-1BL00-0XB0.
MODEL IDENTITYExact Siemens ET 200L digital output block article number: 6ES7132-1BL00-0XB0.
General Information −
BrandSiemens
Part number6ES7132-1BL00-0XB0
Product typeDigital Output Electronics Block
Product familyET 200L
System roleDistributed I/O digital outputs
Output current / channel0.5 A
Rated load voltage24 V DC
Output groups2 × 16
Bus protocolPROFIBUS-DP
Weight, approx.150 g
Physical Data ＋
Dimensions (W × H × D)145 × 60 × 60.5 mm
Weight, approx.150 g
Terminal block familyTB 32L
Function & Configuration ＋
Product role32-channel digital output
Bus protocolPROFIBUS-DP
Rated load voltage24 V DC
Electronics supply24 V DC
Output current / channel0.5 A
Output grouping2 groups of 16
SYNC compatibilityYes
Status displayGreen LED per channel
Source: Siemens ET 200L Distributed I/O Device manual, Section 8.4, for 6ES7132-1BL00-0XB0.
FAQ

Questions Buyers Ask Most

What does 6ES7132-1BL00-0XB0 do?＋

6ES7132-1BL00-0XB0 is the Siemens SIMATIC ET 200L digital output electronics block. Its 32 outputs are arranged in two groups of 16 and switch 24 V DC loads at a rated 0.5 A per output within an ET 200L distributed I/O station.

Which terminal blocks accept 6ES7132-1BL00-0XB0?＋

6ES7132-1BL00-0XB0 plugs into the ET 200L TB 32L terminal block. Siemens lists 6ES7193-1CL00-0XA0 for screw terminals and 6ES7193-1CL10-0XA0 for spring terminals; check the installed wiring base before ordering.

What load voltage and output current apply to 6ES7132-1BL00-0XB0?＋

6ES7132-1BL00-0XB0 uses a rated 24 V DC load voltage and a rated 0.5 A output current per channel. Siemens identifies solenoids, DC contactors and indicator lights as suitable load types; verify the actual load against the manual limits.

How are the outputs grouped on 6ES7132-1BL00-0XB0?＋

6ES7132-1BL00-0XB0 provides 32 outputs in two groups of 16. Siemens also specifies an aggregate output-current limit per byte that depends on mounting position and ambient temperature; account for those limits when assigning loads.

Which network and synchronization features does 6ES7132-1BL00-0XB0 support?＋

6ES7132-1BL00-0XB0 communicates through PROFIBUS-DP and supports SYNC operation in the ET 200L system. The electronics block is part of the distributed I/O station; check the station address, master configuration and installed terminal block during commissioning.

What should be checked when installing 6ES7132-1BL00-0XB0?＋

6ES7132-1BL00-0XB0 requires the correct TB 32L terminal block, 24 V DC electronics supply and 24 V DC rated load supply. Check channel wiring, connected actuator current and the applicable group-current limits against Siemens instructions before energizing the ET 200L station.

What information should accompany an order for 6ES7132-1BL00-0XB0?＋

6ES7132-1BL00-0XB0 should be ordered by its full article number 6ES7132-1BL00-0XB0. Include the TB 32L terminal style, installed ET 200L station details, required quantity and load information so the 32-output configuration can be matched.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, TB 32L terminal style, quantity and output-load requirements for availability and compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
6ES7132-1BL00-0XB0

Product information and support route for the exact Siemens article number 6ES7132-1BL00-0XB0.

Official Siemens PDF manual

Siemens' official ET 200L Distributed I/O Device manual covers the exact 6ES7132-1BL00-0XB0 article number in Section 8.4. It documents the 32 digital outputs, 24 V DC rated load voltage and 0.5 A per output.

OPEN OFFICIAL MANUAL PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Siemens identifies 6ES7132-1BL00-0XB0 as an ET 200L electronics block with 32 digital outputs for 24 V DC loads, rated 0.5 A per output.

MODEL IDENTIFICATION

Exact Siemens reference for 6ES7132-1BL00-0XB0

6ES7132-1BL00-0XB0 is the complete Siemens article number for the ET 200L 32-channel digital output electronics block, rated for 24 V DC loads and 0.5 A per output.

Siemens · BRAND
Siemens SIMATIC ET 200LDigital Output Electronics Block
EXACT ARTICLE NUMBER

6ES7132-1BL00-0XB0

Use the complete article number 6ES7132-1BL00-0XB0 with the installed ET 200L station, TB 32L terminal-block style, 24 V DC load supply and 32-output wiring requirements when matching this product.

Product identification: Siemens SIMATIC ET 200L 32-channel digital output electronics block, 24 V DC rated load voltage, 0.5 A per output, article number 6ES7132-1BL00-0XB0.
APPLICATION AREAS

Application functions for 6ES7132-1BL00-0XB0

ET 200L Distributed OutputsSwitching 24 V DC loads from an ET 200L distributed I/O station
Solenoid ControlSiemens lists solenoids among the suitable output loads
INDUSTRIAL AUTOMATION APPLICATIONS 6ES7132-1BL00-0XB0 ET 200L · 32-Channel Digital Output Block
DC Contactor ControlSiemens lists DC contactors among the suitable output loads
Indicator Light OutputsSiemens lists indicator lights among the suitable output loads
