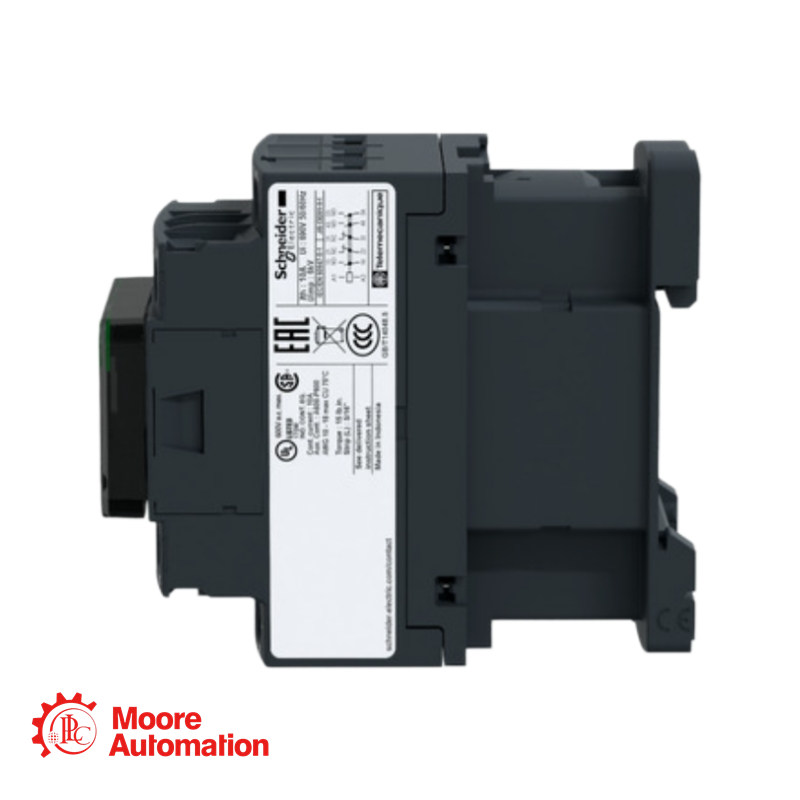

Schneider CAD32MD Control Relay

Get a Better Price Now

◆5-Stars Sales Manager: Frida

CAD32MD Description

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

CAD32MD Technical Specifications

control circuit voltage:220 V DC
conventional free air thermal current:10 A (at 60 °C)
Mechanical durability:30 Mcycles
Maximum operating rate:180 cyc/mn
Time constant:28 ms
Inrush power in W:5.4 W (at 20 °C)
Hold-in power consumption in W:5.4 W at 20 °C
Minimum switching voltage:17 V
Minimum switching current:5 mA

CAD32MD Key Features and Advantages

√ Rated operational voltage up to 690V AC, making it suitable for a wide range of industrial applications.
√ Impulse withstand voltage of 6 kV (Uimp) and rated short-time withstand current (Icw) of up to 140 A for 100 ms, ensuring durability during electrical faults.
√ Capable of handling 140 A AC and 250 A DC inrush currents, ensuring reliable startup for connected loads.
