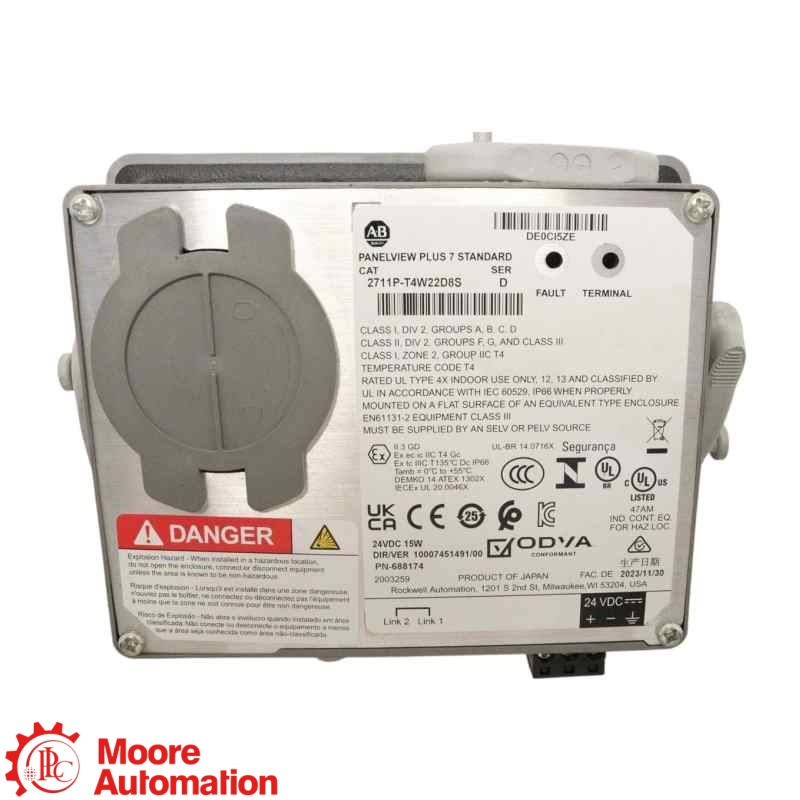

The 2711P-T4W22D8S is a PanelView Plus 7 Standard terminal with a 4.3-inch widescreen color touch display, dual Ethernet ports with DLR support and 24 V DC power.
Marque :
PLCNuméro d'article :
2711P-T4W22D8SDimension :
110 mm x 135 mm x 56.5 mm (H x W x D); 0.44 kg approximate weightCode SH :
PanelView Plus 7 Standard 4 W TerminalLa description :
The 2711P-T4W22D8S is a PanelView Plus 7 Standard terminal with a 4.3-inch widescreen color touch display, two Ethernet ports supporting DLR and 24 V DC power.Click “+” to expand more specifications.
Source: Official publication 2711P-TD008 covers 2711P-T4W22D8S technical specifications. Verify the complete catalog number, 24 V DC supply, dual Ethernet/DLR network and panel cutout before replacement.
2711P-T4W22D8S is a PanelView Plus 7 Standard 4 W terminal with a 4.3-inch widescreen color touch display.
2711P-T4W22D8S uses a 4.3-inch widescreen color TFT LCD with 480 × 272 WQVGA resolution and a 95 × 54 mm viewing area.
2711P-T4W22D8S provides two 10/100Base-T Ethernet ports supporting star, linear and Device Level Ring topologies.
2711P-T4W22D8S requires 24 V DC nominal input within an 18…30 V DC operating range and has 35 W maximum DC power consumption.
2711P-T4W22D8S measures approximately 110 × 135 × 56.5 mm and weighs approximately 0.44 kg (0.97 lb).
2711P-T4W22D8S uses FactoryTalk View Studio for Machine Edition version 8.0 or later; Series D terminals require firmware version 13.x or later.
2711P-T4W22D8S requires confirmation of the exact catalog number, series, 24 V DC supply, DLR network design, 92 × 117 mm cutout and application backup.
Official manufacturer-reference information for the 2711P-T4W22D8S PanelView Plus 7 Standard 4 W terminal.
Official publication 2711P-TD008 provides technical specifications for the 2711P-T4W22D8S PanelView Plus 7 Standard 4 W terminal.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official manufacturer publications 2711P-TD008 and 2711P-UM007 for the exact catalog number. No third-party product sources were used.
2711P identifies the PanelView Plus bulletin; T means touch input; 4 means a 4.3-inch display; W means wide aspect-ratio color; 22 means an embedded Ethernet switch with DLR; D means DC power; 8 means Windows CE; and S means Standard model.
Touch-screen operator input.
4.3-inch wide aspect-ratio color display.
Embedded Ethernet switch/DLR with DC input power.
Windows CE operating system, Standard model.

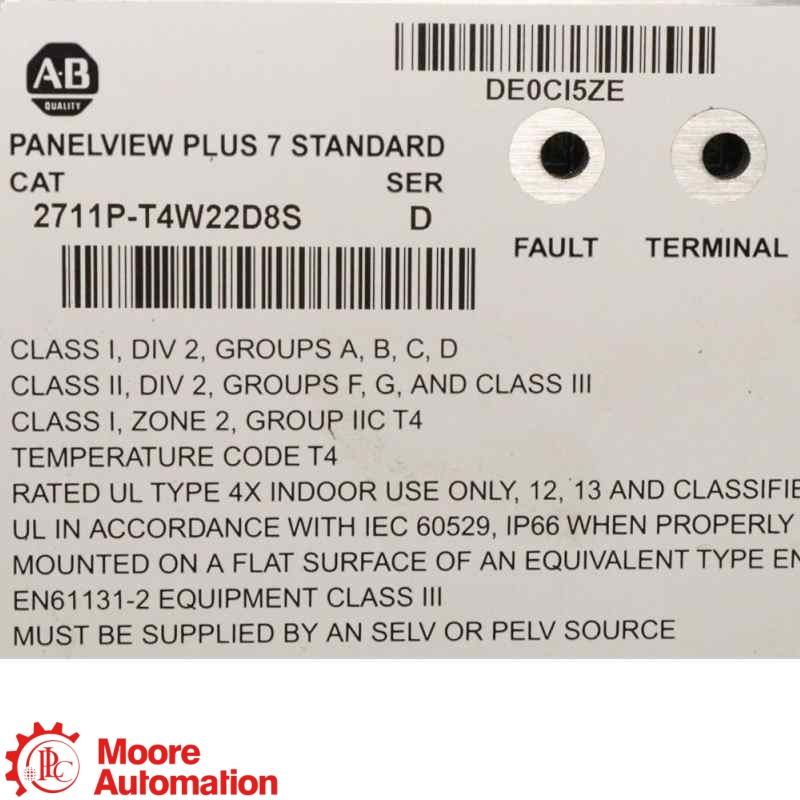

Match 2711P-T4W22D8S to the full terminal label, series and installed-system documentation.
Confirm the FactoryTalk View ME application, terminal series, network settings and machine state before replacement.
Record the controller, 24 V DC supply, dual Ethernet/DLR connections and 92 × 117 mm panel cutout.
Confirm the exact terminal catalog number, application file, 24 V DC supply, DLR network and panel mounting before commissioning.
