PRODUCT INFORMATION ● 5580 PROCESS CONTROLLER

PLC 5580 PROCESS CONTROLLER

1756-L83EP

PROCESS CONTROL AND COMMUNICATIONS

10 MB USER MEMORY · EMBEDDED GIGABIT ETHERNET

PRODUCT ROLE

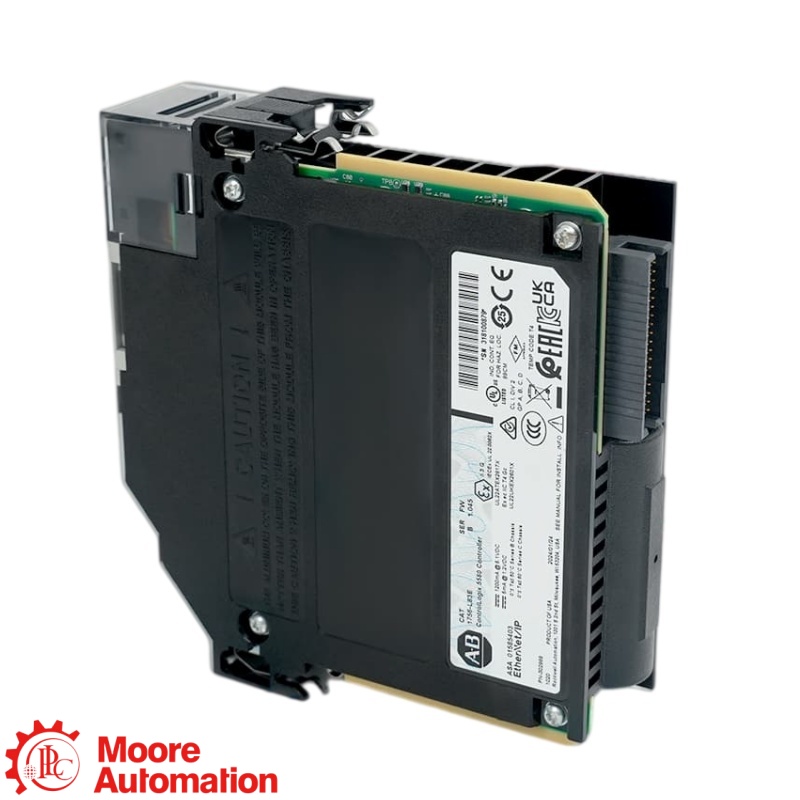

1756-L83EP is a 5580 process controller for chassis-based machine and process automation. It provides 10 MB user memory, one embedded 10/100/1000 Mbps Ethernet port and a USB 2.0 Type B programming port.

ORDER CHECK

For 1756-L83EP, confirm the complete catalog number, firmware, engineering-software version, project file, chassis compatibility, network settings and memory-card requirements before ordering.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 1756-L83EP catalog number is identified

1756

Controller family1756 chassis-based controller family

L83EP

Controller code10 MB process controller

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

1756-L83EP ↗

1756-L83EP

Engineering data at a glance

Click “+” to expand more specifications.

USER MEMORY10 MB

NETWORK NODESUp to 250

ETHERNET10/100/1000 Mbps

LIFECYCLEEnd of life

Configuration verification

Confirm the complete catalog number, firmware, engineering-software version, chassis, network configuration and memory-card requirements before ordering 1756-L83EP.

General Information −

Catalog number1756-L83EP

Product type5580 process controller

User memory10 MB

Embedded Ethernet10/100/1000 Mbps

USB programming portUSB 2.0 Type B

Communication and Capacity ＋

Network node capacityUp to 250 with firmware v30 or later; 100 with firmware v28 or v29

Controller tasksUp to 32

Programs per taskUp to 1000

Integrated motionConfirm project and firmware requirements

Installation and System ＋

Chassis compatibilityCompatible 1756 chassis and power supply required

Project compatibilityMatch firmware and engineering-software revision

Memory cardUse the compatible Secure Digital card specified for the controller

Direct replacement1756-L83EPXT

Physical and Environmental ＋

DimensionsConfirm against the official product page and installed chassis

WeightConfirm against the product nameplate

Operating temperature0…60 °C (32…140 °F)

Storage temperature−40…85 °C (−40…185 °F)

Documentation ＋

Official product page1756-L83EP

Lifecycle statusEnd of life on 31 December 2026

Country of originUSA

Source: official manufacturer product information for 1756-L83EP. Confirm the installed firmware, chassis, network design and project requirements before replacement.

FAQ

Questions Buyers Ask Most

What is 1756-L83EP used for?＋

1756-L83EP is a 5580 process controller used for chassis-based machine and process automation with 10 MB user memory and embedded Gigabit Ethernet.

How many network nodes can 1756-L83EP support?＋

1756-L83EP supports up to 100 EtherNet/IP nodes with firmware v28 or v29 and up to 250 nodes with firmware v30 or later, so the installed firmware must be checked.

What software and firmware must be checked for 1756-L83EP?＋

1756-L83EP must use a project and engineering-software revision compatible with its installed firmware; back up the project and record the firmware revision before replacement.

What hardware must be checked before installing 1756-L83EP?＋

1756-L83EP requires a compatible 1756 chassis, chassis power supply, network design and Secure Digital card. Verify slot assignment and field connections before commissioning.

What is the official replacement for 1756-L83EP?＋

1756-L83EP has 1756-L83EPXT listed as its direct replacement. Confirm environmental rating, firmware and project compatibility before substitution.

What information is needed to quote 1756-L83EP?＋

For 1756-L83EP, provide the complete catalog number, quantity, nameplate photos, firmware revision, chassis model, project version and required delivery date.

CONTACT PRODUCT SPECIALIST

Check your 1756-L83EP configuration with Frida

Share the complete catalog number, firmware, chassis and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
1756-L83EP

Official manufacturer-reference information for the 1756-L83EP 5580 process controller.

Official product information for 1756-L83EP

Official product page covering specifications, lifecycle information and the direct replacement for 1756-L83EP.

OFFICIAL PRODUCT PAGE

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this page are limited to the official 1756-L83EP manufacturer product page and lifecycle information.

5580 PROCESS CONTROLLER RELATIONSHIP

How 1756-L83EP Fits into a 1756 Chassis-Based Control System

1756 is the chassis-based controller family. 1756-L83EP is the 10 MB process controller with embedded Gigabit Ethernet and a USB 2.0 Type B programming port.

PLATFORM1756 Chassis-Based ControlController and I/O architecture

→

MODULE FAMILY5580 Process ControllerChassis-based process control

→

EXACT MODEL1756-L83EP10 MB process controller

Selection note: Match the firmware, project revision, chassis, network design and memory-card requirements before replacement.

APPLICATION AREAS

Application mind map for 1756-L83EP

Process ControlRun chassis-based process and machine-control applications after project and firmware verification

Lifecycle ReplacementPlan migration to the official replacement after checking firmware, chassis and project compatibility

APPLICATION CENTER1756-L83EP 5580 process controller

Network IntegrationConfigure the embedded Gigabit Ethernet port within the documented node capacity and network topology

Procurement CheckProvide the complete catalog number, firmware, chassis, project version and nameplate photos before ordering.
