HONEYWELL · SYSTEM 57 / 5701 GAS DETECTION

05701-A-0284

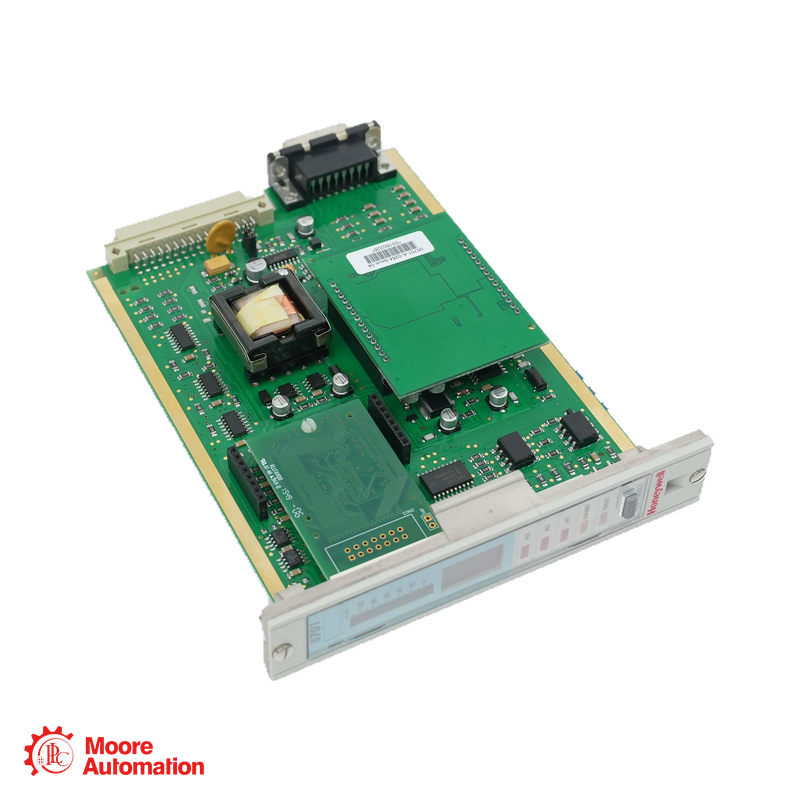

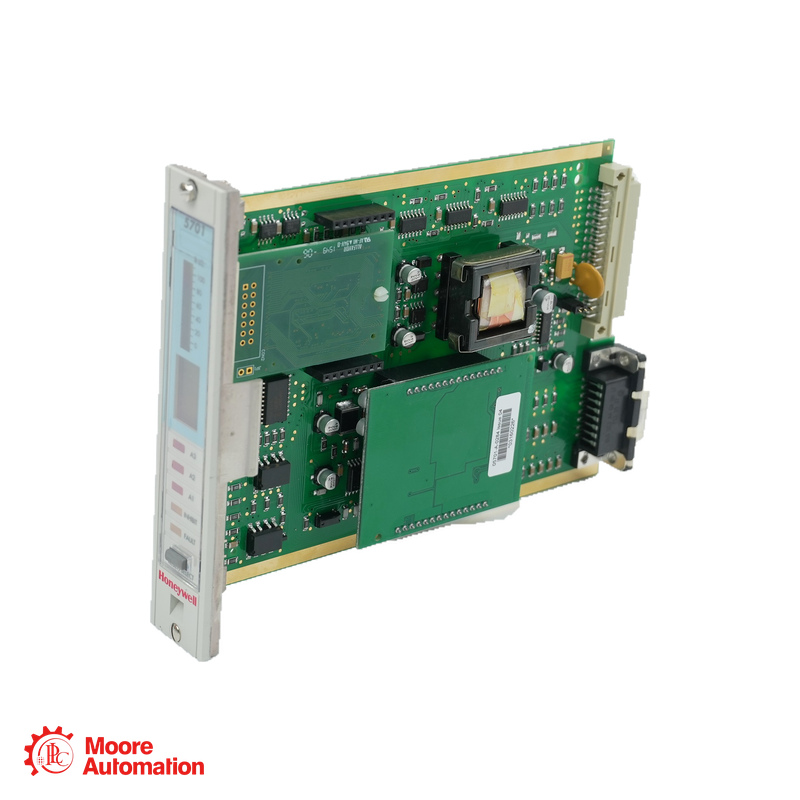

The 05701-A-0284 is the Honeywell System 57 / 5701 catalytic sensor drive module. Factory fitted to a single-channel control card, it supplies the catalytic sensor bridge, conditions the sensor signal and scales it for the control card. Confirm the installed sensor and factory-set bridge-current range before ordering.

MODEL05701-A-0284
BRANDHoneywell
PRODUCT FAMILYSYSTEM 57 · 5701
PRODUCT TYPECATALYTIC SENSOR DRIVE MODULE
MANUFACTURERHoneywell
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
HONEYWELL ● SYSTEM 57 / 5701 CATALYTIC SENSOR DRIVE
HONEYWELL SYSTEM 57 · 5701 GAS DETECTION

05701-A-0284

CATALYTIC SENSOR INPUT · FACTORY-FITTED MODULE

CATALYTIC SENSOR DRIVE MODULE · 5701

MODULE ROLE
05701-A-0284 is the catalytic sensor drive module for Honeywell System 57 / 5701 single-channel gas detection. It conditions the catalytic sensor signal and supplies the sensor drive required by the 5701 control card.
CONFIGURATION NOTE
For 05701-A-0284, confirm the factory-fitted 5701 catalytic control-card assembly, connected sensor and bridge-current range before specifying a replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CATALOG IDENTITY

05701-A-0284 CATALYTIC SENSOR DRIVE MODULE

05701-A-0284
Exact Honeywell part numberCatalytic sensor drive module for 5701
HONEYWELL 5701 MANUAL CHARACTERISTICS

Technical Specifications

Honeywell 5701 Operating Instructions ↗
05701-A-0284 · CATALYTIC SENSOR DRIVE

Manufacturer data at a glance

Honeywell identifies the exact module in its 5701 operating instructions and describes its sensor-drive function and factory configuration.

SENSOR TYPECatalytic
SYSTEMSystem 57 / 5701
CONTROL CARD05701-A-0302
BRIDGE LINKSLK1–LK3
Honeywell identifies 05701-A-0284 as the catalytic sensor drive module; it is distinct from 05701-A-0283 for 4–20 mA sensors.
Exact configuration check Confirm 05701-A-0284 with the 5701 catalytic control card, connected sensor and factory-set bridge-current range. Honeywell cautions against changing the range links without its System 57 technical manual.
GENERAL INFORMATION −
BrandHoneywell
Part number05701-A-0284
Product typeCatalytic sensor drive module
Product familySystem 57 · 5701
Intended useCatalytic sensor signal conditioning and drive
Associated control card05701-A-0302 catalytic
MODULE FUNCTION & INTEGRATION ＋
Sensor interfaceCatalytic sensor input
Signal functionCondition and scale sensor signal
Sensor supplyProvides sensor drive voltage and current
Card mountingFactory fitted on single-channel control card
CONFIGURATION & SENSOR INTERFACE ＋
Bridge-current selectionThree solder links, LK1–LK3
Range optionsFour factory-configurable current ranges
Range settingFactory set; verify installed sensor
Card connectorsJ1 and J2 · 14-way
Sensor wiringS · 01 · NS via interface / relay card
ORDERING & DOCUMENTATION ＋
Exact module part number05701-A-0284
Catalytic control card05701-A-0302
Different input module05701-A-0283 is for 4–20 mA sensors
Manufacturer manual5701 Operating Instructions · MAN0443
Official source: Honeywell’s 5701 operating instructions identify 05701-A-0284 as the catalytic sensor drive module and describe its factory-fitted role and bridge-current link settings.
FAQ

Questions Buyers Ask Most

What role does 05701-A-0284 perform in a 5701 system?＋

05701-A-0284 conditions the catalytic sensor signal, provides the drive supply for the sensor bridge and scales the signal for the 5701 single-channel control card.

Which control card is associated with 05701-A-0284?＋

05701-A-0284 is the catalytic sensor drive module used in the 05701-A-0302 single-channel catalytic control card assembly. Confirm the full installed card and sensor configuration.

Is 05701-A-0284 interchangeable with the 4–20 mA drive module?＋

05701-A-0284 is the catalytic version. Honeywell lists 05701-A-0283 separately for 4–20 mA sensors; select by sensor type and complete card assembly.

How is the bridge-current range configured on 05701-A-0284?＋

05701-A-0284 has three solder-link positions (LK1–LK3) that select one of four bridge-current ranges. Honeywell states the range is factory set and should not be altered without the System 57 technical manual.

Where does 05701-A-0284 connect on the control card?＋

05701-A-0284 is factory fitted to the single-channel control card and plugs into its 14-way J1/J2 sensor-drive connectors.

What sensor connections are relevant to 05701-A-0284?＋

05701-A-0284 is shown in Honeywell’s catalytic connection diagrams with S, 01 and NS sensor conductors through the appropriate field-interface or relay card. Match the installed sensor drawing.

What should be checked before ordering 05701-A-0284?＋

05701-A-0284 should be matched by exact part number, 05701-A-0302 card assembly, catalytic sensor type and the factory-set bridge-current range. Request the installed-system configuration sheet when available.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the exact module number, catalytic control-card assembly and sensor configuration for compatibility and availability checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL HONEYWELL MANUAL

Product Documentation for
05701-A-0284

Honeywell’s 5701 Operating Instructions (MAN0443) identify 05701-A-0284 as the catalytic sensor drive module and document its role, card mounting and bridge-current configuration.

Official document status

The linked Honeywell 5701 manual covers the exact part number within the System 57 control-card documentation. It is a system operating manual, not a dedicated module datasheet.

VIEW HONEYWELL MANUAL

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page are based on Honeywell’s 5701 Operating Instructions and its System 57 product guide.

EXACT PRODUCT IDENTIFICATION

Honeywell 05701-A-0284 catalytic module identity

Honeywell is the manufacturer; 05701-A-0284 is the catalytic sensor drive module part number for System 57 / 5701. The 05701-A-0302 assembly is the catalytic single-channel control card that contains this drive module.

Honeywell · BRAND
System 57 · 5701 gas detectionPRODUCT FAMILY
EXACT PART NUMBER

05701-A-0284

Factory-fitted catalytic sensor drive module for the 5701 control card.

ASSOCIATED CARD

05701-A-0302

Single-channel catalytic control card assembly.

Replacement check: confirm the exact part number, sensor type, 05701-A-0302 card and factory-set bridge-current range before replacement.
APPLICATION AREAS

Application map for Honeywell 05701-A-0284

Catalytic Gas DetectionCondition a catalytic sensor signal for a 5701 single-channel gas detection loop
Sensor Bridge SupplyProvide drive voltage and current required by the catalytic sensor
APPLICATION CENTER 05701-A-0284 Honeywell System 57 · 5701 catalytic sensor drive module
5701 Card IntegrationFactory-fitted sensor drive for the 05701-A-0302 catalytic card assembly
Configuration MatchingMatch the factory-set bridge-current range to the installed sensor
