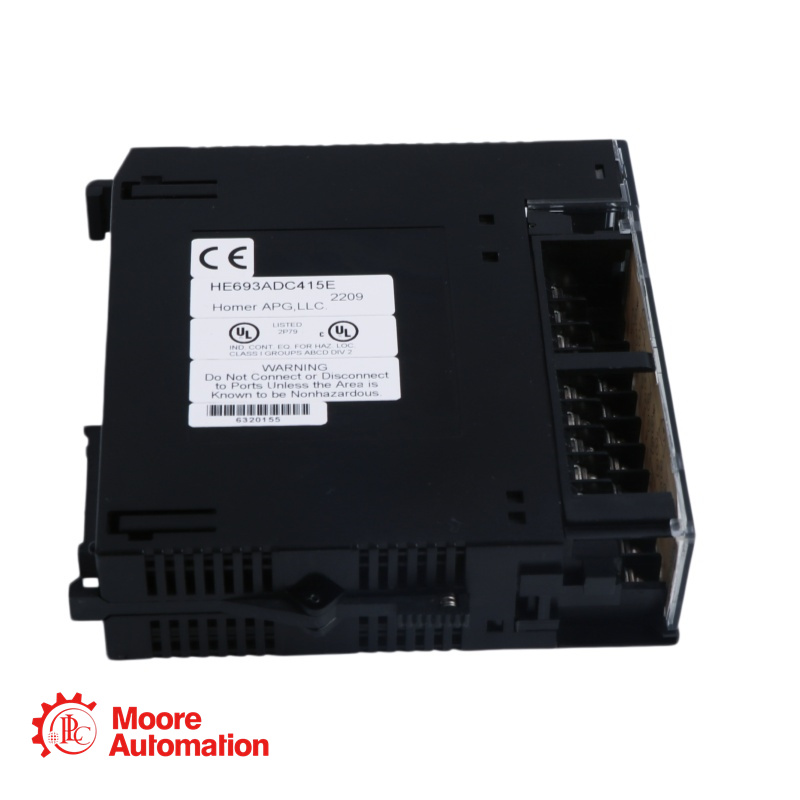

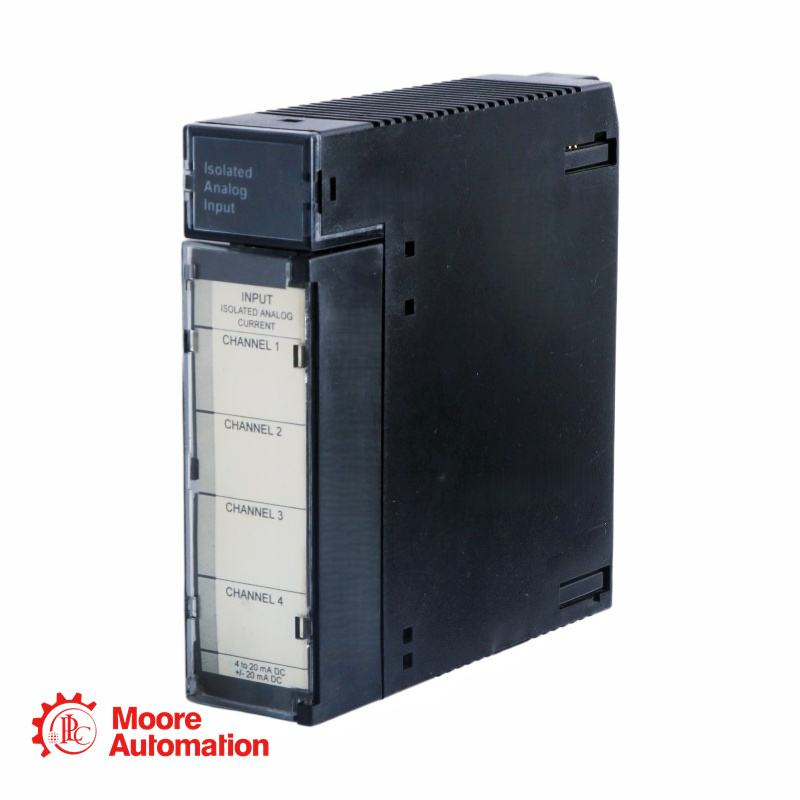

Horner Electric Isolated Analog Current Input Modules provide four analog input channels, with 14-bits of resolution
Marque :
GENuméro d'article :
HE693ADC415Lester :
0.3kgDimension :
3.5x13x13.5cmPays d'origine :
USACode SH :
8537101190La description :
Isolated Analog Current Input Module
|
Part Number |
HE693ADC415 |
|
Brand |
GE / Horner Electric |
|
Category |
Isolated Analog Current Input Module |
|
Family |
GE Series 90-30 |
|
Lifecycle Status |
Discontinued |
➤How To Get A Price? Contact Below Now!
Sales Manager: Frida Zhang (24/7 online)
Phone/Whatsapp: +86 15359408275
Email: sales5@mooreplc.com
➤Overview HE693ADC415
Horner Electric Isolated Analog Current Input Modules provide four analog input channels, with 14-bits of resolution. Two models are available, the HE693ADC420 with 1500VAC (RMS) isolation, and the HE693ADC415 with 500VAC (RMS) isolation. These isolation levels are channel-to-channel and channel-to-ground. Each channel may be configured for an input range of 4-20mA or +/-20mA. Each of the four channels has a programmable setpoint, the level of which is set in the PLC program via four %AQ output registers. If the analog input value reaches or exceeds the setpoint, a corresponding digital input %I is energized. The first four %Is represent the four input channel setpoint alarms,respectively.
➤Technical Data HE693ADC415
|
Number of Channels |
4 |
|
Input Range |
4-20mA, +/- 20mA |
|
Power Consumption (Steady State) |
0.4W / 80 mA @ 5V ; 2.16W / 90 mA @ 24V |
|
Surge Current at Power-Up |
120mA @ 5V ; 150mA @ 24V |
|
I/O Required |
4 %AI, 4 %AQ, 16 %IA/D |
|
Type & Resolution |
Integrating, 18 bits |
|
Useable Resolution |
13 bits plus sign |
|
Input Impedance |
100 ohms |
|
Module Update Rate |
45 channels/second |
