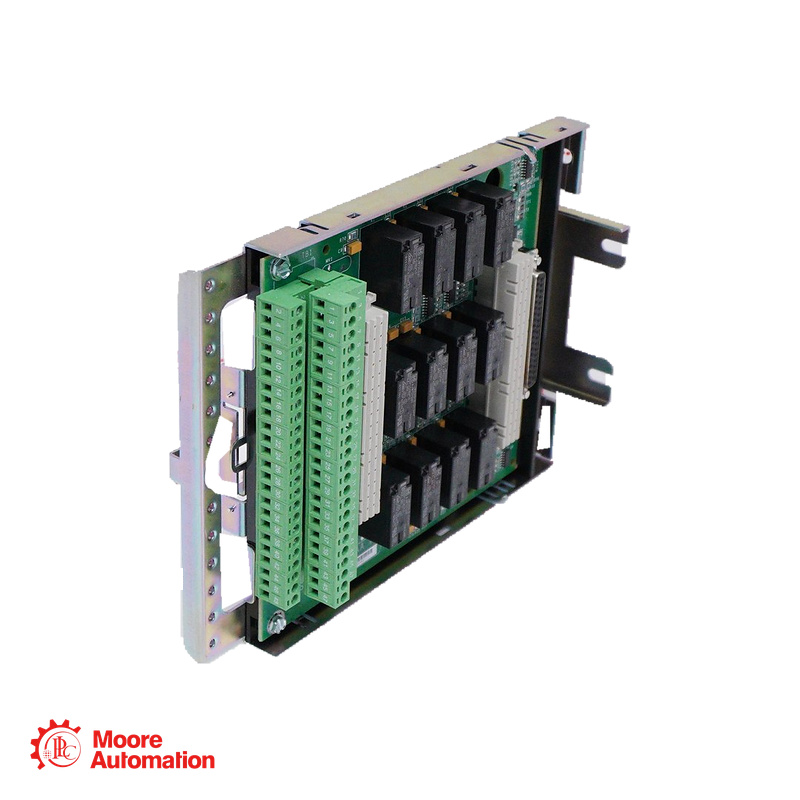

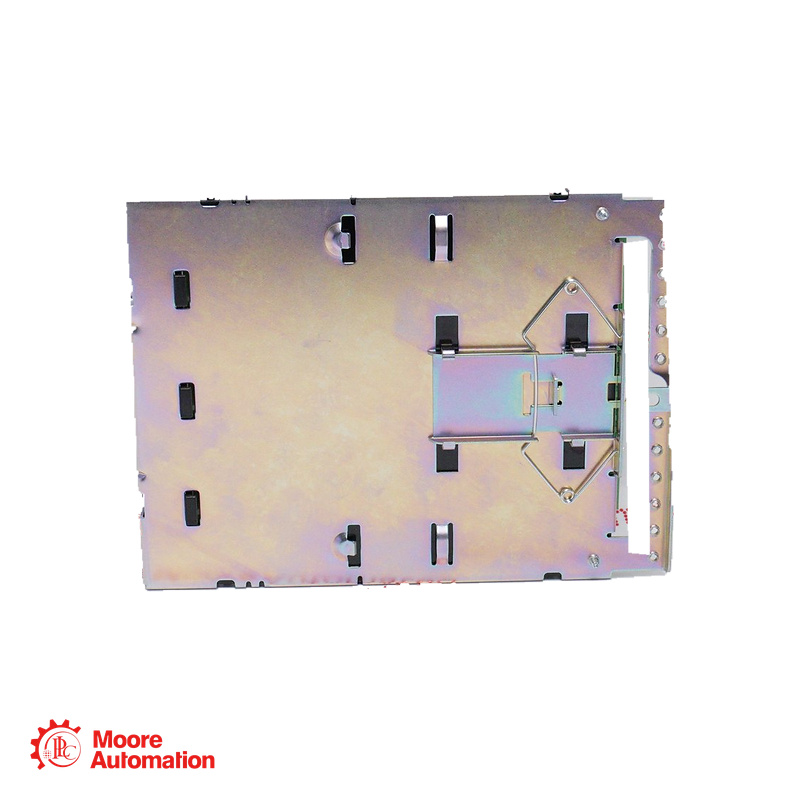

GE IS230SRTDH2A Mark VIe RTD Input DIN Rail Module
GE IS230SRTDH2A Mark VIe RTD Input DIN Rail Module
GE IS230SRTDH2A Mark VIe RTD Input DIN Rail Module

GE IS230SRTDH2A Mark VIe RTD Input DIN Rail Module

GE MARK VIE · SIMPLEX RTD INPUT

IS230SRTDH2A

IS230SRTDH2A is a GE Mark VIe simplex RTD input assembly. One PRTD I/O pack connects to an IS200SRTDH2A terminal board for eight three-wire RTD inputs, with 36 removable field terminals and DIN-rail mounting.

PRODUCT TYPERTD INPUT DIN RAIL MODULE
PLATFORMMark VIe
RTD INPUTS8 channels
TERMINALS36 removable
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● RTD INPUT DIN RAIL MODULE
MARK VIE

IS230SRTDH2A

RTD INPUT DIN RAIL MODULE

MARK VIE · SIMPLEX RTD INPUT · PRTD + SRTD

MODULE ROLE
IS230SRTDH2A is a simplex DIN-rail RTD input assembly with one PRTD pack and an IS200SRTDH2A terminal board.
LONG DESCRIPTION
IS230SRTDH2A terminates eight three-wire RTD inputs at 36 removable box-type terminals. Platinum, copper and nickel RTDs are supported by the PRTD acquisition interface, which communicates with the controller over Ethernet.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS230SRTDH2A Reference Is Structured

IS
Issuing organizationGE, Salem, Virginia
2
Substance codeLegacy non-RoHS designation
30
Assembly levelCircuit assemblies mounted on a base
SRTD
Module functionSimplex resistance-temperature input
H
Technology codeSurface-mount components included
2
Assembly variantSRTDH2A removable terminal arrangement
A
Compatibility versionBackward-compatibility version A
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS230SRTDH2A RTD INPUT DIN RAIL MODULE

Engineering data at a glance

Click “+” to expand more specifications.

RTD INPUTS8 channels
SENSOR WIRING3-wire
TERMINALS36 removable
I/O PACKS1 × PRTD
Eight three-wire RTD inputs, 36 removable terminal positions and one PRTD I/O pack.
Assembly configuration Module IS230SRTDH2A contains the SRTDH2A removable-terminal board and one PRTD pack. This is the simplex RTD module arrangement.
GENERAL INFORMATION −
BrandGE
Part numberIS230SRTDH2A
Product typeRTD Input DIN Rail Module
RTD inputsEight channels
RTD wiringThree wires per sensor
Field terminals36 removable box-type positions
MODULE COMPONENTS ＋
I/O packOne PRTD
Terminal boardIS200SRTDH2A
RedundancySimplex
SENSOR & FIELD INTERFACE ＋
Sensor materialsPlatinum, copper or nickel RTDs
Platinum elements10, 100 and 200 Ω
Copper element10 Ω
Nickel element120 Ω
MountingDIN-rail assembly
RTD ACQUISITION ＋
Signal path: The SRTD board terminates resistance-temperature sensor wiring. Its PRTD pack acquires the eight RTD channels and communicates with the Mark VIe controller over Ethernet.
Source: GEZ-S2029, Mark VIe I/O Modules table, page 4; GEI-100727C, RTD I/O Modules; GEH-6721 Volume I, RTD I/O Types and Part Numbering Convention.
FAQ

Questions Buyers Ask Most

What does IS230SRTDH2A include?＋

IS230SRTDH2A combines one PRTD pack and an IS200SRTDH2A terminal board in a simplex DIN-rail assembly.

How many RTDs connect to IS230SRTDH2A?＋

IS230SRTDH2A provides eight RTD input channels, with three-wire connections for each sensor.

Are the field terminals on IS230SRTDH2A removable?＋

IS230SRTDH2A uses the SRTDH2A removable 36-position box-type terminal arrangement.

Which RTD materials are supported by IS230SRTDH2A?＋

IS230SRTDH2A supports platinum, copper and nickel RTD inputs through the PRTD interface.

Does IS230SRTDH2A support TMR operation?＋

IS230SRTDH2A is a simplex assembly with one PRTD pack. Its SRTD board is the single-pack terminal arrangement.

How does IS230SRTDH2A send measurements to the controller?＋

IS230SRTDH2A uses the PRTD pack to convert RTD measurements and exchange the acquired data over Ethernet.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS230SRTDH2A

Official manufacturer-manual PDF status for GE IS230SRTDH2A.

Official manual PDF status

A direct manufacturer-hosted instruction-manual PDF covering IS230SRTDH2A was not located in the public documentation checked. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEZ-S2029, Mark VIe I/O Modules table, page 4; GEI-100727C, RTD I/O Modules; GEH-6721 Volume I, RTD I/O Types and Part Numbering Convention.

GE MARK VIE RTD-INPUT RELATIONSHIP

How IS230SRTDH2A Connects RTD Sensors

GE is the manufacturer brand; GE Mark VIe is the product family; and IS230SRTDH2A is the rtd input din rail module for simplex RTD temperature measurement.

GE · BRAND
GE Mark VIeRTD Input DIN Rail Module
SYSTEM ROLE

RTD Input DIN Rail Module

Terminates RTD sensor wiring and acquires eight temperature channels through PRTD.

MODULE / CONFIGURATION

8 RTDs · 3-wire sensors

SRTDH2A provides a removable 36-position field terminal block.

PACK & TERMINAL-BOARD INTERFACE

IS230SRTDH2A · RTD Input DIN Rail Module

One PRTD pack interfaces with the IS200SRTDH2A board in the DIN-rail assembly.

System relationship: RTD leads connect to SRTD; PRTD measures sensor resistance and exchanges the acquired data with the Mark VIe controller.
APPLICATION AREAS

Application map for IS230SRTDH2A

RTD Temperature InputsConnect eight resistance-temperature sensors
Three-Wire MeasurementTerminate three-wire RTD field circuits
MARK VIE RTD TEMPERATURE INPUT IS230SRTDH2A IS230SRTDH2A · RTD Input DIN Rail Module
Removable Field WiringUse the SRTDH2A terminal arrangement
Simplex I/O NetworkCommunicate with the controller through PRTD
