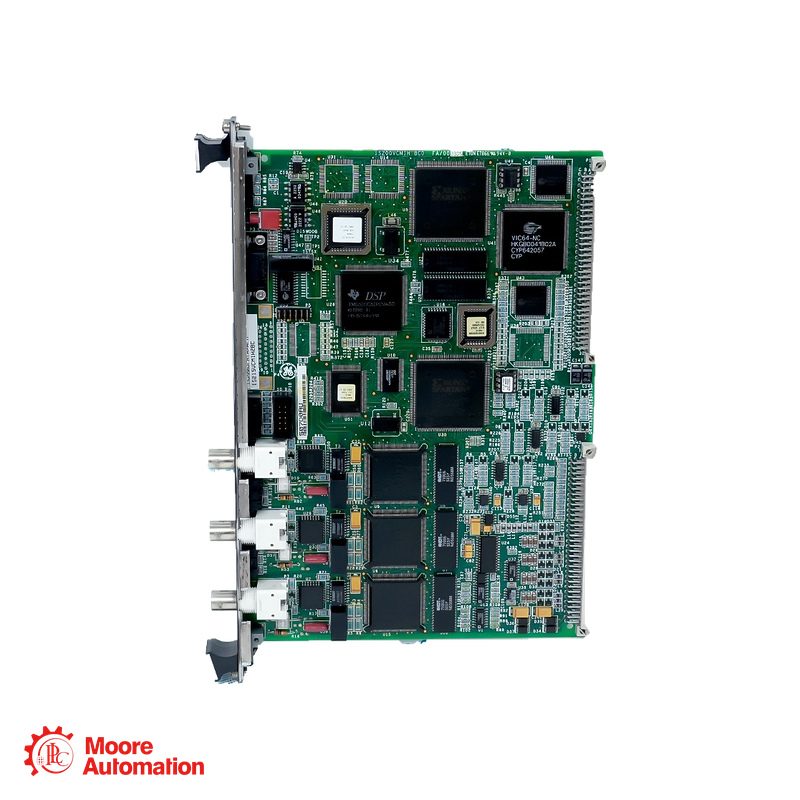

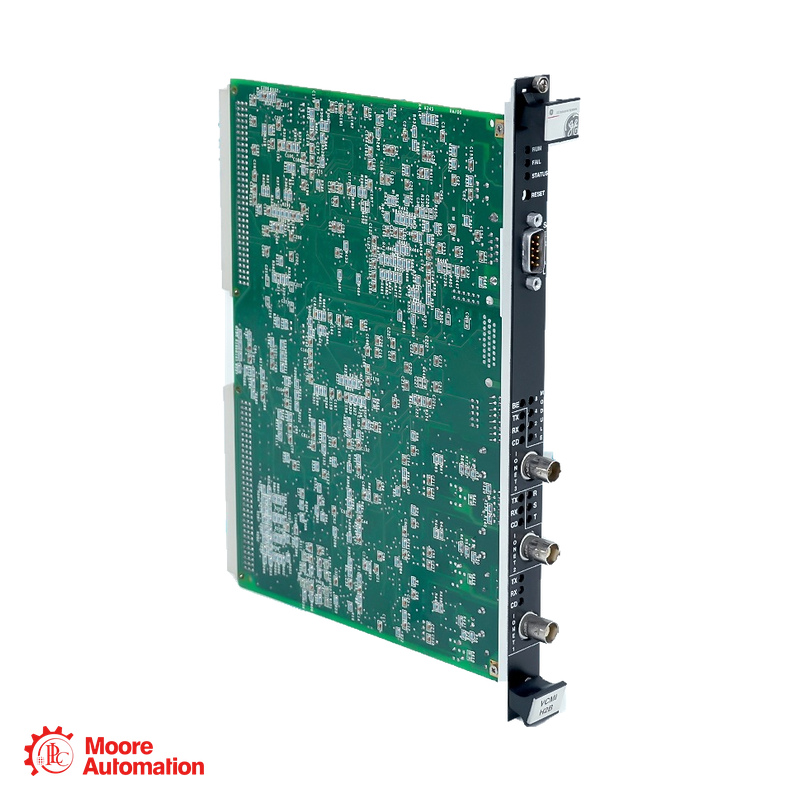

GE IS200VPROH1BF Mark VI Emergency Turbine Protection Board
GE IS200VPROH1BF Mark VI Emergency Turbine Protection Board
GE IS200VPROH1BF Mark VI Emergency Turbine Protection Board

GE IS200VPROH1BF Mark VI Emergency Turbine Protection Board

GE MARK VI · INDEPENDENT EMERGENCY TURBINE PROTECTION

IS200VPROH1BF

IS200VPROH1BF is a Mark VI VPRO emergency turbine protection board. The documented VPRO architecture processes emergency overspeed and emergency-stop functions through the TPRO and TREG terminal boards, independently of the main turbine control module.

PRODUCT TYPETURBINE PROTECTION
PLATFORMMark VI
FIELD BOARDTPRO
TRIP BOARDTREG
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● INDEPENDENT EMERGENCY TURBINE PROTECTION
MARK VI

IS200VPROH1BF

TURBINE PROTECTION

MARK VI · VPRO H1B · EMERGENCY PROTECTION

MODULE ROLE
IS200VPROH1BF provides the VPRO emergency protection function in the Mark VI protection module.
LONG DESCRIPTION
IS200VPROH1BF uses the VPROH1B hardware form. GE describes this form as supporting a second TREG board through J4, in addition to the TPRO field interface and IONet communication with the control modules. Trip relays and field solenoid wiring are on the associated terminal boards.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS200VPROH1BF Reference Is Structured

IS
Issuing organizationGE Energy, Salem, Virginia
2
Substance codeLegacy non-RoHS designation
00
Assembly levelPrinted circuit board assembly (PCBA)
VPRO
Functional mnemonicEmergency turbine protection
H
Technology codeIncludes surface-mount components
1
Assembly variantVPRO H1 hardware form
B
Compatibility versionHardware compatibility version B
F
PWA versionProduction assembly version F
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VI ↗
IS200VPROH1BF TURBINE PROTECTION

Engineering data at a glance

Click “+” to expand more specifications.

BOARD TYPEPCBA
NETWORKIONet
FIELD BOARDTPRO
TRIP BOARDTREG
VPRO board role: emergency protection, TPRO field inputs, TREG trip control and IONet communication.
Module configuration The complete reference IS200VPROH1BF identifies a base-level VPRO PCBA, H1B hardware form and production version F. H1B supports a second TREG on J4; H2B does not provide that second-board connection.
GENERAL INFORMATION −
BrandGE
Part numberIS200VPROH1BF
Product typeEmergency Turbine Protection Board
Assembly levelBase-level PCBA
Protection functionsEmergency overspeed and emergency stop
CommunicationIONet Ethernet to control modules
TERMINAL BOARD INTERFACES ＋
Field input terminationTPRO
Trip relay interfaceTREG
H1B additional interfaceSecond TREG through connector J4
INDICATION & DIAGNOSTICS ＋
RUN indicationFlashing green in normal operation
FAIL indicationSolid red for board failure
STATUS indicationSteady orange for a diagnostic alarm
Terminal identificationReads TPRO and TREG connector ID devices
Diagnostic monitoringTrip feedback, solenoid circuits and analog signal limits
PROTECTION ARCHITECTURE ＋
System arrangement: VPRO is used in the independent emergency protection module. TPRO terminates field inputs; TREG carries the trip relay circuits. The VPRO board is distinct from the UCV application controller.
Source: GEH-6421M, Volume II, VPRO Turbine Protection Board, pages 201–209; GEH-6721 Volume I, component part-number convention.
FAQ

Questions Buyers Ask Most

What function does IS200VPROH1BF provide?＋

IS200VPROH1BF is a VPRO emergency protection board used for emergency overspeed and emergency-stop processing in the Mark VI protection module.

Which terminal boards work with IS200VPROH1BF?＋

IS200VPROH1BF uses the documented VPRO interfaces to TPRO for field signals and TREG for the emergency trip circuits.

Does IS200VPROH1BF run the main turbine application?＋

IS200VPROH1BF belongs to the independent protection module. The separate UCV controller executes the main turbine control application.

How does IS200VPROH1BF exchange status with the control system?＋

IS200VPROH1BF uses the VPRO IONet Ethernet connection to communicate with the Mark VI control modules.

What do the status indicators on IS200VPROH1BF show?＋

IS200VPROH1BF uses VPRO RUN, FAIL and STATUS indication: flashing green for normal operation, solid red for failure and steady orange for a diagnostic alarm.

Other Available Revisions for the IS200VPROH1BF＋

The H1B form used by IS200VPROH1BF supports a second TREG through J4. GE distinguishes H2B as the lower-power form without that interface. Retain the full F production reference when checking a replacement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200VPROH1BF

Official manufacturer-manual PDF status for GE IS200VPROH1BF.

Official datasheet status

A direct GE-hosted instruction-manual PDF covering IS200VPROH1BF was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6421M, Volume II, VPRO Turbine Protection Board, pages 201–209; GEH-6721 Volume I, component part-number convention.

GE MARK VI SYSTEM RELATIONSHIP

How IS200VPROH1BF Fits Mark VI Control

GE is the manufacturer brand; GE Mark VI is the product family; and IS200VPROH1BF is the emergency turbine protection board used for independent emergency turbine protection.

GE · BRAND
GE Mark VIEmergency Turbine Protection Board
SYSTEM ROLE

Emergency Turbine Protection Board

Processes emergency protection separately from the main control application.

MODULE / CONFIGURATION

TPRO · TREG · IONet

TPRO routes field inputs; TREG contains the trip relay circuits.

I/O ROLE

IS200VPROH1BF · Emergency Turbine Protection Board

IONet carries communication between the protection and control modules.

System relationship: VPRO performs emergency protection processing, while the UCV controller performs the main application control.
APPLICATION AREAS

Application map for IS200VPROH1BF

Emergency OverspeedIndependent turbine overspeed protection
Emergency StopProcess the emergency-stop trip function
MARK VI EMERGENCY PROTECTION IS200VPROH1BF IS200VPROH1BF · Emergency Turbine Protection Board
Trip System InterfaceControl the associated TREG trip circuits
Protection DiagnosticsMonitor protection feedback and terminal-board identity
