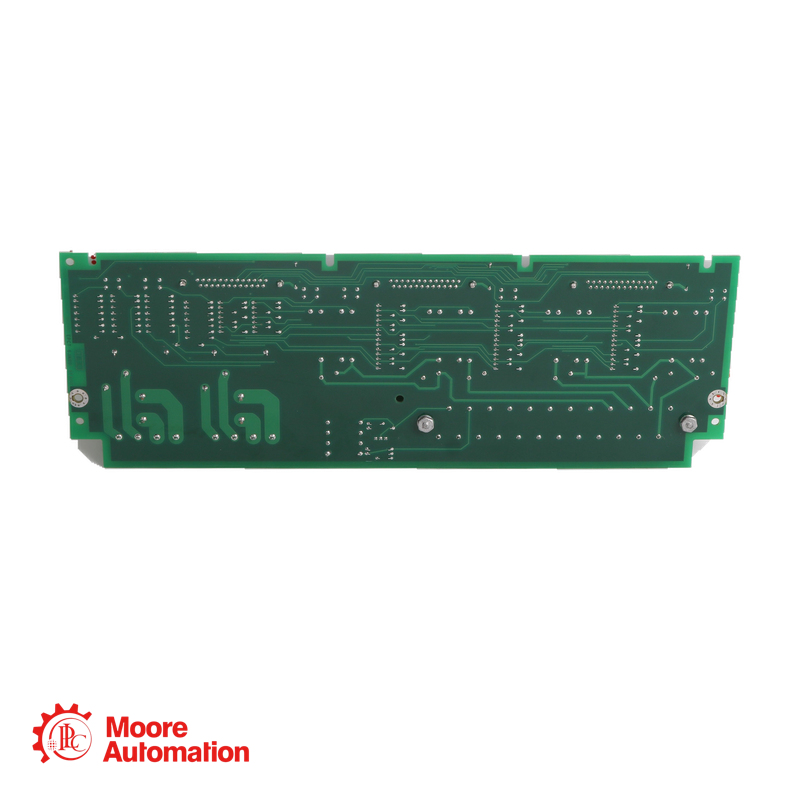

GE EX2100 · EPCT PT/CT TERMINAL BOARD

IS200EPCTG1A

The IS200EPCTG1A is a GE EX2100 Exciter PT/CT Terminal Board. It receives generator potential-transformer and current-transformer feedback, provides isolation and signal conditioning, and passes the scaled measurements to the EMIO control interface.

PRODUCT TYPEEX2100 EPCT BOARD
FUNCTIONPT / CT FEEDBACK
MEASUREMENTSISOLATION & SCALING
CONTROL INTERFACEEMIO SIGNAL INTERFACE
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE● EX2100 EXCITER PT/CT TERMINAL BOARD
GE EX2100

IS200EPCTG1A

EX2100 EXCITER PT/CT TERMINAL BOARD

EX2100 · GENERATOR PT INPUTS · GENERATOR CT INPUTS

PRODUCT ROLE
IS200EPCTG1A is the GE EX2100 terminal board for generator PT and CT feedback.
TECHNICAL CONTEXT
IS200EPCTG1A receives and conditions the generator electrical feedback used by the EX2100 excitation controls. Two three-phase generator potential-transformer voltage inputs and two generator current-transformer inputs are brought to the EPCT board, where isolation transformers separate and scale the measurement paths before the signals are interfaced to the EMIO board. The current inputs support 1 A or 5 A CT levels, and the board also accepts one auxiliary analog input that can be configured for either 0–10 V or 4–20 mA service.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE EX2100 ↗
IS200EPCTG1A EX2100 EXCITER PT/CT TERMINAL BOARD

Engineering data at a glance

Click “+” to expand more specifications.

BOARD ROLEPT/CT Terminal Board
PROCESSINGSignal Conditioning
ISOLATIONIsolation Transformers
INTERFACESEPCT + EMIO
The values shown summarize GE Industrial Systems GEI-100459 EPCT instructions and the GEH-6632 EX2100 system description. Confirm the complete IS200EPCTG1A catalog number and installed measurement configuration before replacement.
System contextUse IS200EPCTG1A with the approved generator PT/CT wiring and compatible EMIO interface. Verify the complete catalog number, CT rating, analog-input mode and installed EX2100 configuration before commissioning.
GENERAL INFORMATION −
BrandGE
Part numberIS200EPCTG1A
Product typeExciter PT/CT Terminal Board
Excitation systemEX2100 Excitation Control
System roleGenerator voltage and current feedback conditioning
GENERATOR MEASUREMENT INPUTS ＋
Board functionPT and CT feedback conditioning
PT inputsTwo three-phase generator inputs
CT inputsTwo generator current inputs
CT levels1 A or 5 A
Additional analog input0–10 V or 4–20 mA
ISOLATION & SIGNAL PATHS ＋
Voltage isolationVoltage isolation,Onboard isolation transformers,Current isolation,Dedicated CT measurement paths,Signal conditioning,Scaling before control interface,Control interface,Signals routed to EMIO,Manual reference,GEI-100459
Current isolationDedicated CT measurement paths
Signal conditioningScaling before control interface
Control interfaceSignals routed to EMIO
HARDWARE & SYSTEM INTERFACE ＋
Board familyEPCT
Input categoryGenerator electrical feedback
Receiving boardEMIO main I/O board
System platformEX2100 Excitation Control
Selection basisComplete model and input configuration
Source: GE Industrial Systems GEI-100459, Exciter PT/CT Board EPCT, and GEH-6632 EX2100 system documentation. No direct manufacturer-hosted exact-model PDF was confirmed publicly.
FAQ

Questions Buyers Ask Most

What is IS200EPCTG1A?＋

IS200EPCTG1A is the GE EX2100 Exciter PT/CT Terminal Board used to receive and condition generator voltage and current feedback.

Which transformer inputs are accepted by IS200EPCTG1A?＋

IS200EPCTG1A accepts two three-phase generator PT voltage inputs and two generator CT current inputs.

Which CT current levels are supported by IS200EPCTG1A?＋

IS200EPCTG1A supports generator current-transformer inputs rated for either 1 A or 5 A measurement paths.

What additional analog input is available on IS200EPCTG1A?＋

IS200EPCTG1A includes one auxiliary analog input that can be configured for 0–10 V or 4–20 mA service.

What should be verified before ordering IS200EPCTG1A?＋

IS200EPCTG1A requires verification of the complete catalog number, PT wiring, CT current level, analog-input mode and EMIO interface before ordering.

Other Available Revisions for the IS200EPCTG1A＋

IS200EPCTG1A has no interchangeable revision identified in current public manufacturer documentation. Contact Frida with the complete nameplate and installed-system details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200EPCTG1A

Documentation support for the GE IS200EPCTG1A EX2100 Exciter PT/CT Terminal Board.

Official datasheet status

No direct exact-model manufacturer-hosted IS200EPCTG1A PDF was confirmed in the public documentation. For the applicable GE board instructions, revision compatibility and ordering support, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Board-level statements on this page follow the applicable GE Industrial Systems EX2100 board instructions; contact Frida for the exact IS200EPCTG1A document package.

GE EX2100 EPCT RELATIONSHIP

How IS200EPCTG1A Fits into the EX2100 Excitation System

GE is the manufacturer brand; EX2100 is the excitation-control system; and IS200EPCTG1A is the Exciter PT/CT Terminal Board.

GE · BRAND
GE EX2100Exciter PT/CT Terminal Board
SYSTEM ROLE

Generator Feedback Interface

Receives generator PT and CT feedback and conditions the measurements for the EX2100 control system.

FUNCTION / INTERFACES

ISOLATION · SCALING · EMIO

Isolation transformers separate and scale the generator measurement paths before signals are passed to the EMIO board.

ORDER DATA

IS200EPCTG1A · Complete Model

Match the complete catalog number and confirm PT wiring, CT current level, auxiliary analog-input mode and EMIO interface.

System relationship: verify the complete IS200EPCTG1A identity and the installed EX2100 generator-feedback arrangement before ordering.
APPLICATION AREAS

Application map for IS200EPCTG1A

Generator Voltage FeedbackConditioning of two three-phase generator potential-transformer voltage inputs
Generator Current FeedbackIsolation and scaling of two generator current-transformer measurement paths
APPLICATION CENTERIS200EPCTG1AEX2100 Exciter PT/CT Terminal Board
EMIO Signal InterfaceConditioned PT, CT and auxiliary analog signals are passed to the EMIO control board
Auxiliary Analog MeasurementOne configurable 0–10 V or 4–20 mA input for the excitation-control system
