VersaMax Micro 28 point
Marque :
GENuméro d'article :
IC200UDR005-BDLester :
0.58 kgDimension :
15x9.5x7.5cmPays d'origine :
USACode SH :
8537101190La description :
VersaMax Micro ControllerGet Price Immediately
◆Frida (★★★★★ Sales Manager)
◆Phone: +86 15359408275
Product Overview
→

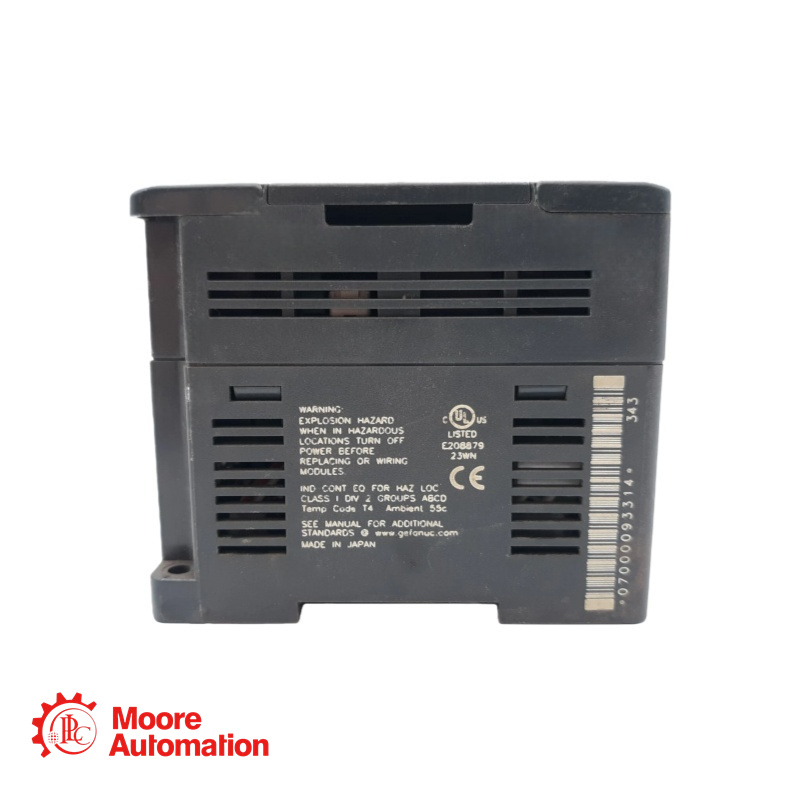

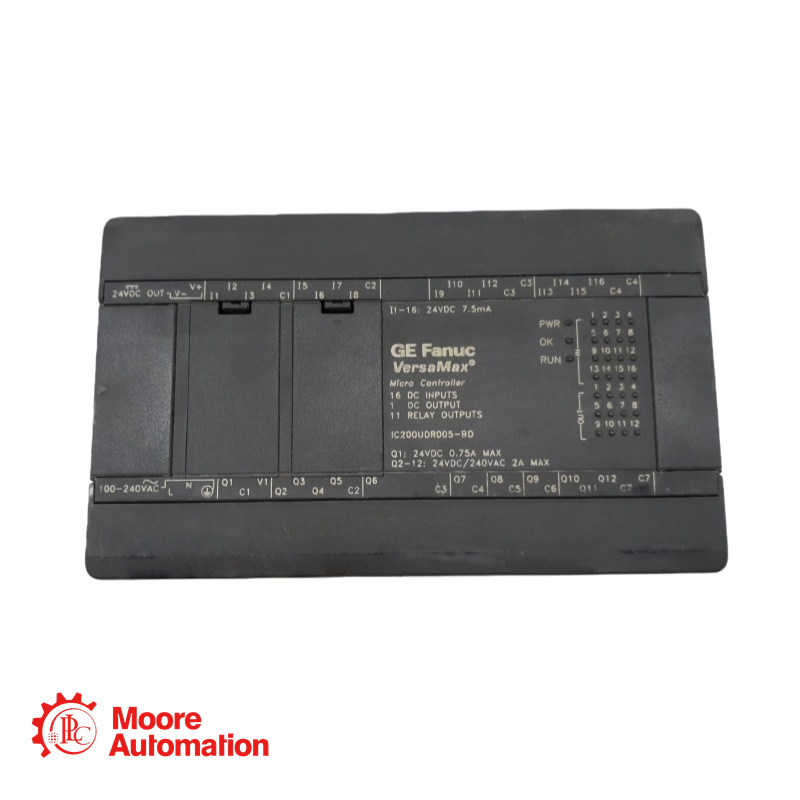

The IC200UDR005-BD is a member of the VersaMax Micro 28 series of modular programmable controllers. It is engineered for applications requiring a balanced mix of discrete and low-count analog I/O within a compact, modular form factor. This unit features 16 built-in 24 VDC sinking/sourcing inputs and 12 outputs, comprising 11 Form-A relay outputs (each capable of switching up to 2A at 240 VAC) and one dedicated 24 VDC output. It is powered directly from 120/240 VAC mains, simplifying panel layout by eliminating the need for an external DC power supply for the controller itself. The controller provides a 24 VDC sensor supply rail (200 mA) for powering connected input devices.
→
Product Name: VersaMax Micro 28, 28 points; (16) 24 VDC Inputs, (11) Relay Outputs, (1) 24 VDC Output, 120/240 VAC Powered.
Number of Discrete Inputs/Outputs: 16 Inputs / 12 Outputs (Supports up to 4 Expansion Units).
Number of Analog Inputs/Outputs: Supports up to 4 analog expansion units (providing up to 16 analog inputs / 8 analog outputs).
Physical I/O Maximum: 140 points.
User Program Memory: 9K Words.
Data Registers: 2K Words.
Analog Pots for Data Adjustment: Yes, 2 potentiometers.
Serial Ports: Port 1 - RJ-45 (RS-232); Port 2 - DB-15 (RS-485).
Supported Protocols:
Port 1: SNP, SNP X (Breakless).
Port 2: SNP, SNP X (Breakless), RTU Master and Slave (2-wire and 4-wire RTU Slave), SNP Master, Serial Read and Write.
Power Supply Voltage: 120/240 VAC.
Input Power Supply Rating: 26 VA.
24 VDC User Power for Sensors: 200 mA.
Input Device Voltage: 24 VDC.
Maximum Counters: 4 Type A and 1 Type B counters @ 10 kHz (16-bit resolution).
Output Control Types: 11 Relay Outputs, 1 x 24 VDC Output.
Relay Maximum Resistive Load Rating: 2 Amps at 24 VDC and 240 VAC.
Maximum Number of PWM/Pulse Outputs: 1 channel @ 5 kHz (16-bit).
