Product Overview

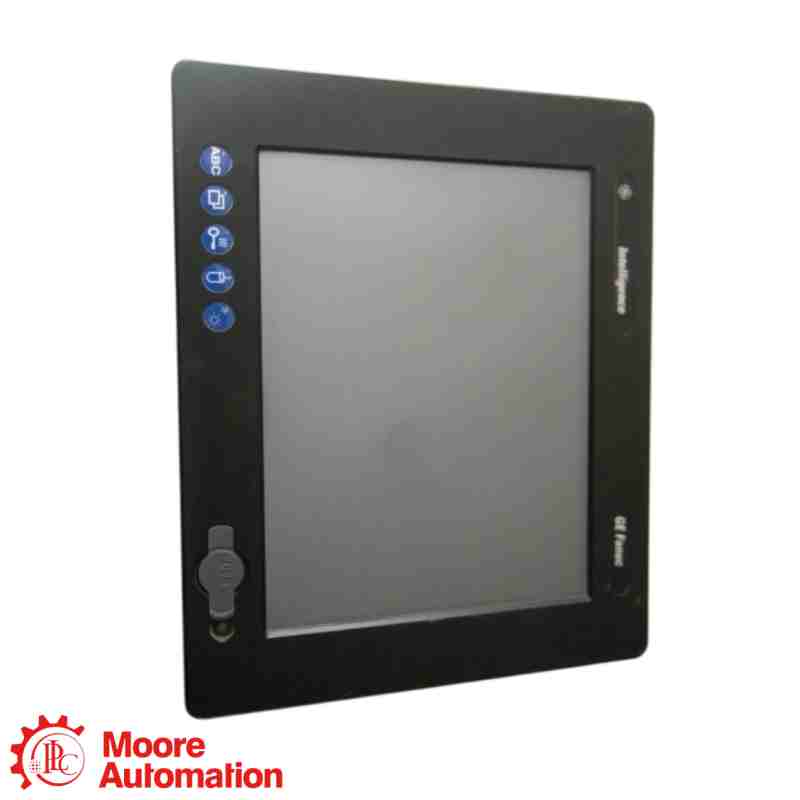

The GE Fanuc IC5005TAW0000 is a 15-inch unbundled industrial panel computer from the GE Fanuc CIMPLICITY Station product range. This configuration combines a 750 MHz processor, 128 MB of RAM, a 13 GB hard drive, Microsoft Windows 2000, a floppy drive and a read-only CD-ROM.The IC5005 platform uses a 15.1-inch TFT color touchscreen with 1024 × 768 XGA resolution. Its panel-mount construction, sealed front surface and built-in industrial communication interfaces make it suitable for operator interface, production monitoring and maintenance applications in legacy automation systems.

Technical Specifications

Parameter	Specification
Manufacturer	GE Fanuc Automation
Complete catalog number	IC5005TAW0000
Product family	CIMPLICITY Station / IC5005 Intelligence Panel PC
Configuration	Standard unbundled station
Nominal display size	15 inches
Active display diagonal	15.1 inches / 383.5 mm
Display technology	TFT LCD color touchscreen
Native resolution	1024 × 768 pixels, XGA
Displayed colors	64K
Display brightness	400 cd/m², downward adjustable
Touchscreen technology	Analog five-wire resistive
Touchscreen interface	Internal serial connection to COM4
Processor speed	750 MHz
Installed memory	128 MB RAM
Hard-disk capacity	13 GB
Operating system	Microsoft Windows 2000
Optical drive	Read-only CD-ROM
Floppy drive	3.5-inch floppy drive
GE Fanuc application software	Not included
Ethernet interfaces	2 × 10/100Base-T RJ45
External serial interfaces	COM1, COM2 and COM3 RS-232
Expansion capacity	2 shared ISA/PCI slots plus 1 PCI slot
AC input range	100–240 VAC
Input frequency	50–60 Hz
Power-supply rating	100 W
Power consumption	54 W typical; 62 W maximum
Maximum additional expansion-card load	20 W
Overall dimensions	390 × 312 × 156 mm
Front-cover dimensions	373.6 × 295.6 mm
Ventilation clearance	50 mm top and bottom; 30 mm at each side
Minimum CD-drawer clearance	132 mm to the left when viewed from the front
Operating temperature	0°C to 40°C
Storage temperature	−20°C to 60°C
Relative humidity	10% to 85%, non-condensing
Operating shock	15 G, 11 ms, positive and negative directions on three axes
Non-operating shock	30 G
Front enclosure protection	NEMA 4 / IP65
Catalog-listed weight	9.0 kg
Listed approvals	UL 1604 Class I, Division 2; CE

Features

-15.1-inch TFT color touchscreen
-XGA 1024 × 768 resolution
-Analog five-wire resistive touch technology
-750 MHz processor
-128 MB installed RAM
-13 GB hard-disk capacity
-Microsoft Windows 2000 operating system
-Read-only CD-ROM and 3.5-inch floppy drive

Application Areas
Legacy HMI and SCADA operator stations
Machine and production-line monitoring panels
Plant-floor process visualization terminals
Maintenance and engineering access stations
Like-for-like replacement in installed IC5005 systems

Brand	GE
Part number	IC5005TAW0000
Origin	USA
Description	Industrial Panel Computer
Shipping Port	Xiamen，China
Payment	T/T
Lead Time	In stock
Shipment	DHL,UPS,FEDEX,TNT,EMS,SF
Service	One-year warranty

Model Benefits

The product offers a number of benefits, including:
-Supports continued operation of legacy Windows 2000 automation systems
-Provides a large local operator display
-Maintains compatibility with resistive-touch applications
-Offers multiple legacy and Ethernet communication interfaces
-Simplifies like-for-like replacement when configuration is confirmed
-Allows software and licensing to be managed separately

Frequently asked questions

1. Does the IC5005TAW0000 include CIMPLICITY software?
No. IC5005TAW0000 is an unbundled configuration supplied with Windows 2000 but without GE Fanuc application software. CIMPLICITY software, project files and licenses must be handled separately.

2. What should be backed up before replacing an installed unit?
Create a full hard-disk image and retain the HMI project, communication drivers, license information, network settings, computer name, startup configuration and touchscreen calibration data. Backups should be verified on separate media before the original unit is removed.

3. Which checks are important before commissioning a replacement?
Confirm the complete catalog number, panel cutout, mounting depth, AC supply, connector layout and software image. After installation, test startup, touchscreen calibration, Ethernet and serial communications, application licensing, controller connectivity and alarm handling before returning the station to production.
