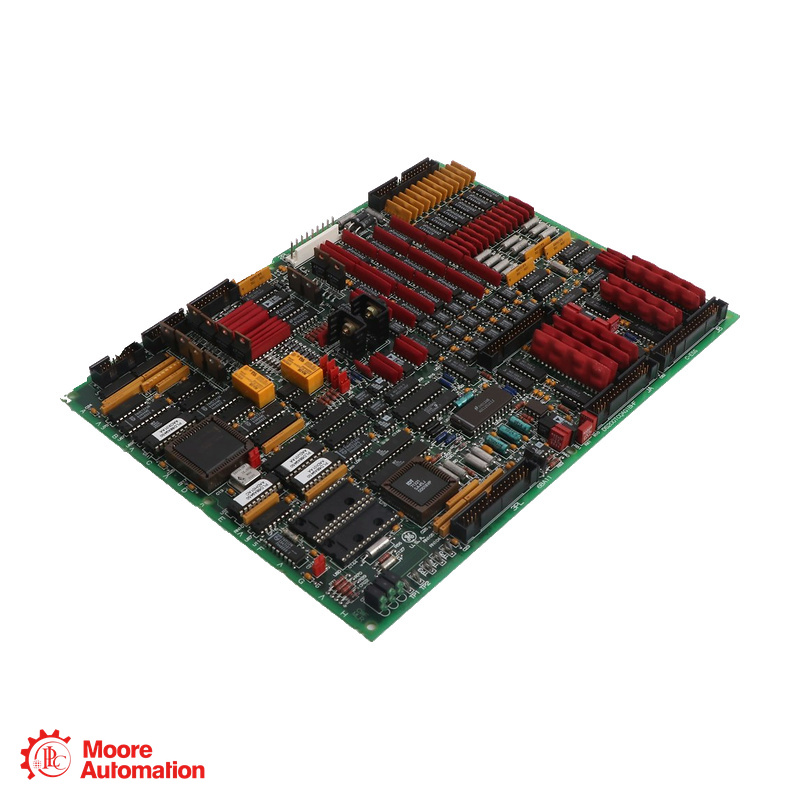

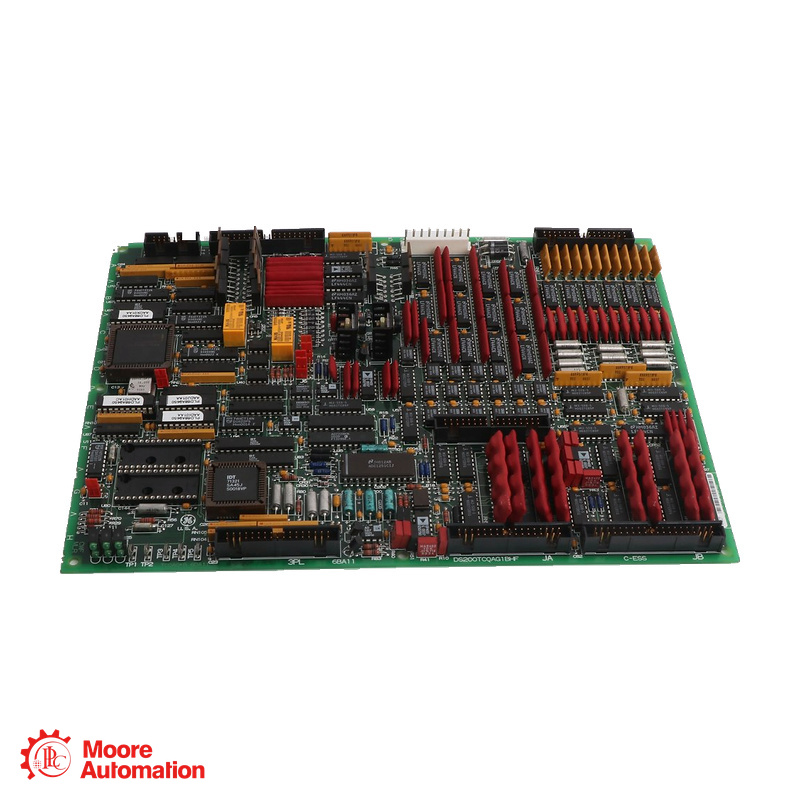

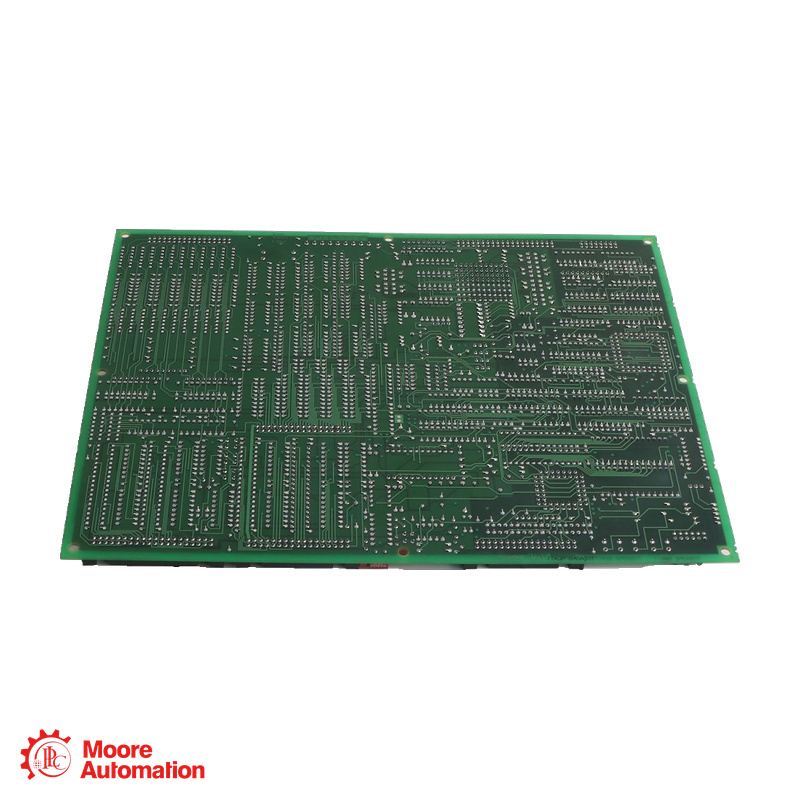

GE DS200TCQAG1B Mark V LM Analog I/O Board
GE DS200TCQAG1B Mark V LM Analog I/O Board
GE DS200TCQAG1B Mark V LM Analog I/O Board

GE DS200TCQAG1B Mark V LM Analog I/O Board

GE MARK V LM · ANALOG I/O BOARD

DS200TCQAG1B

DS200TCQAG1B conditions current-loop, thermocouple, vibration and position-feedback signals for GE Mark V LM turbine control.

PRODUCT TYPEANALOG I/O BOARD
PLATFORMMark V LM
CURRENT I/O4–20 mA
POSITIONLVDT/R
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● ANALOG I/O BOARD
Mark V LM

DS200TCQAG1B

ANALOG I/O BOARD

MARK V LM · ANALOG I/O BOARD

MODULE ROLE
DS200TCQAG1B interfaces the field termination boards with the control-core I/O engine through the 3PL data connection.
LONG DESCRIPTION
DS200TCQAG1B receives thermocouple and cold-junction signals from TBQA through JA, current-loop signals from TBQC through JB, and LVDT/R position feedback through JF. JG carries seismic vibration and ±10 V dc analog inputs from TBQB. The 2PL connection supplies power from TCPS; 3PL carries data to the associated I/O engine. System I/O constants define signal scaling and transducer selections.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the DS200TCQAG1B Reference Is Structured

DS
ManufacturerGE, Salem, Virginia
200
Assembly levelBase-level board
TCQA
Functional acronymanalog i/o board
G1
Group variationGroup 1
B
Functional revisionFirst functional revision B
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark V LM ↗
DS200TCQAG1B ANALOG I/O BOARD

Engineering data at a glance

Click “+” to expand more specifications.

CURRENT I/O4–20 mA
POSITIONLVDT/R
ANALOG INPUT±10 V dc
DATA BUS3PL
Engineering functions and interfaces follow the referenced manufacturer documentation.
Configuration note Signal configuration forDS200TCQAG1B, installed system interfaces and application-specific configuration.
GENERAL INFORMATION −
BrandGE
Part numberDS200TCQAG1B
Product typeAnalog I/O Board
Current-loop signals4–20 mA inputs and outputs
Position feedbackLVDT/R inputs through JF
Vibration inputsSeismic signals through JG
FIELD SIGNAL CONNECTIONS ＋
JATBQA thermocouple and cold-junction signals
JB / JFTBQC current-loop and LVDT/R connections
JGTBQB seismic vibration and ±10 V dc analog inputs
CONTROL INTERFACES ＋
2PLPower from TCPS
3PLData transfer to the associated I/O engine
JESignal exchange with TCQC
FUNCTIONAL CONTEXT ＋
System role: TCQA performs analog scaling and conditioning between the field termination boards and the control-core I/O engine. The installed I/O configuration selects the applicable thermocouple, position, vibration and current-loop settings.
Source:GEH-6153, Chapter 4 pages 4-21–4-22, TCQA; BHEL part record DS200TCQAG1B
FAQ

Questions Buyers Ask Most

Which signals are processed by DS200TCQAG1B?＋

DS200TCQAG1B conditions thermocouple, current-loop, seismic vibration, voltage and LVDT/R position-feedback signals in the Mark V LM analog I/O arrangement.

How does DS200TCQAG1B connect thermocouples?＋

DS200TCQAG1B receives thermocouple inputs and cold-junction information from TBQA through the JA connection.

Which connections carry current and position signals on DS200TCQAG1B?＋

DS200TCQAG1B uses JB for current-loop I/O with TBQC and JF for LVDT/R position-feedback inputs from that terminal board.

What signals enter JG on DS200TCQAG1B?＋

DS200TCQAG1B receives seismic vibration and ±10 V dc analog inputs from TBQB through JG.

How is DS200TCQAG1B powered?＋

DS200TCQAG1B receives power from the associated TCPS board through 2PL. The separate 3PL interface carries I/O data.

How are the input types selected for DS200TCQAG1B?＋

DS200TCQAG1B uses the installed I/O configuration constants for transducer selections and signal scaling. The connected termination board must provide the corresponding field-signal path.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
DS200TCQAG1B

Official manufacturer-documentation status for GE DS200TCQAG1B.

Official datasheet status

No current official DS200TCQAG1B product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

No working manufacturer-hosted instruction or datasheet PDF was confirmed; contact Frida for the applicable document.

GE MARK V LM SYSTEM RELATIONSHIP

How DS200TCQAG1B Fits Mark V LM

GE is the manufacturer brand; GE Mark V LM is the product family; and DS200TCQAG1B is the analog i/o board.

GE · BRAND
GE Mark V LMAnalog I/O Board
SYSTEM ROLE

Current I/O

interfaces the field termination boards with the control-core I/O engine through the 3PL data connection.

MODULE / CONFIGURATION

Field Signal Connections

TBQA thermocouple and cold-junction signals

ASSEMBLY FORMAT

DS200TCQAG1B · TCQA Board

GE Mark V LM analog i/o board.

System relationship: interfaces the field termination boards with the control-core I/O engine through the 3PL data connection.
APPLICATION AREAS

Application map for DS200TCQAG1B

Temperature MeasurementsCondition thermocouple and cold-junction inputs
Position FeedbackProcess LVDT/R field feedback
Mark V LM DS200TCQAG1B DS200TCQAG1B · Analog I/O Board
Vibration MonitoringCondition seismic inputs from TBQB
Current-Loop I/OExchange current signals through TBQC
