GE DS200TCPSG1 Mark V LM Power Supply Board
GE DS200TCPSG1 Mark V LM Power Supply Board
GE DS200TCPSG1 Mark V LM Power Supply Board

GE DS200TCPSG1 Mark V LM Power Supply Board

GE MARK V LM · POWER SUPPLY BOARD

DS200TCPSG1

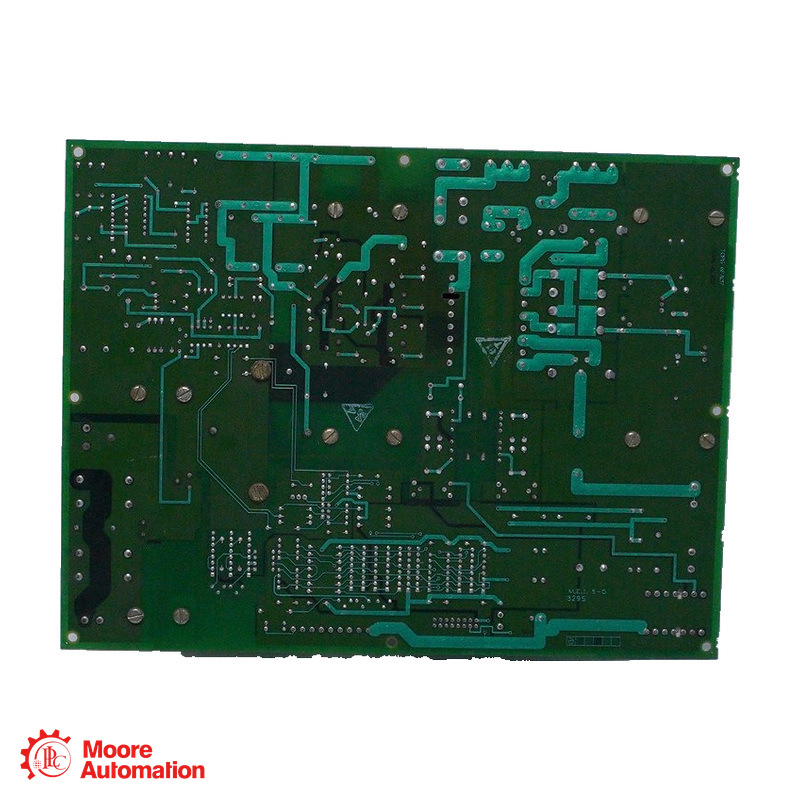

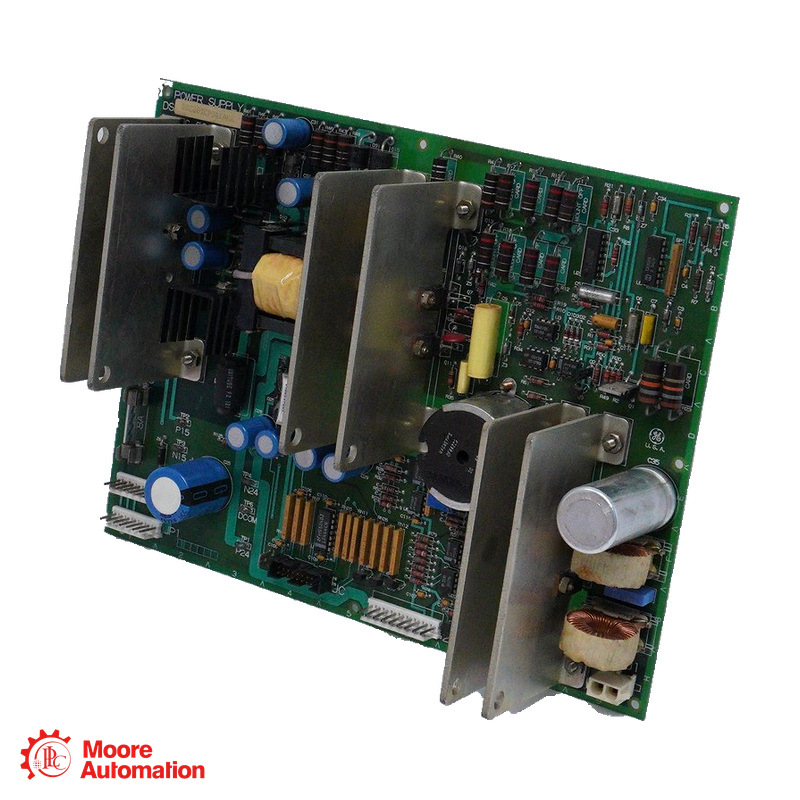

DS200TCPSG1 converts the distributed 125 V dc supply into the operating voltage levels required by GE Mark V LM control and I/O electronics.

PRODUCT TYPEPOWER SUPPLY BOARD
PLATFORMMark V LM
INPUT125 V dc
POWER INJ1
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● POWER SUPPLY BOARD
Mark V LM

DS200TCPSG1

POWER SUPPLY BOARD

MARK V LM · POWER SUPPLY BOARD

MODULE ROLE
DS200TCPSG1 supplies the associated core electronics, current outputs, RTD circuits and servo-valve current-output circuits.
LONG DESCRIPTION

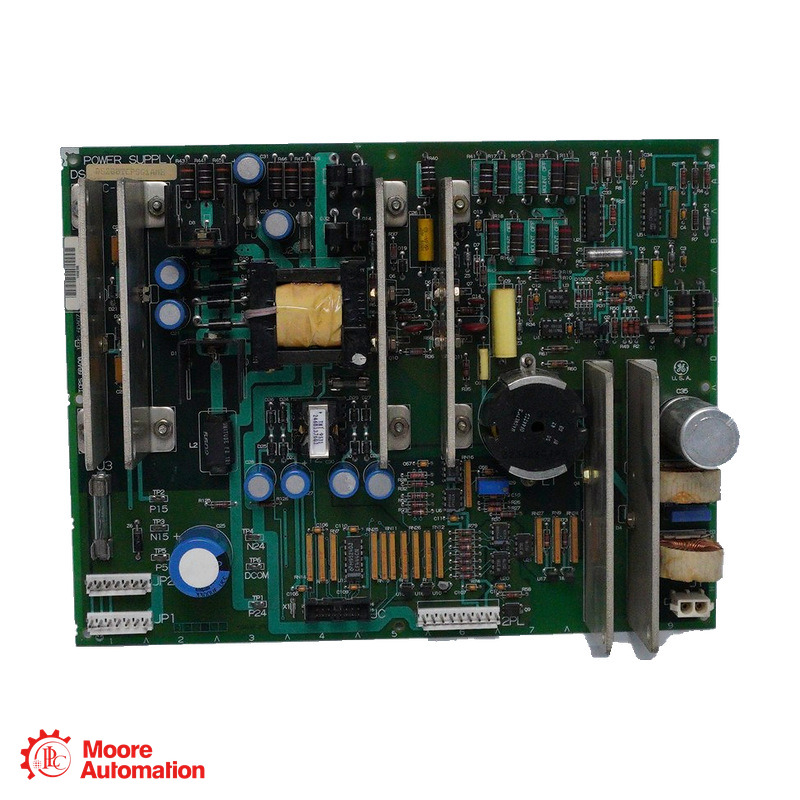

DS200TCPSG1 receives 125 V dc from TCPD through J1. The 2PL connection distributes power to the associated boards, while JC carries power-supply diagnostic voltage signals to TCQC or TCCA. JP1 and JP2 supply the connected TCDA digital-I/O and AAHA ARCNET hardware. X1 provides the CCOM bus connection. GEH-6153 describes this TCPS power-conversion arrangement without hardware-jumper or software configuration.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the DS200TCPSG1 Reference Is Structured

DS
ManufacturerGE, Salem, Virginia
200
Assembly levelBase-level board
TCPS
Functional acronympower supply board
G1
Group variationGroup 1
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark V LM ↗
DS200TCPSG1 POWER SUPPLY BOARD

Engineering data at a glance

Click “+” to expand more specifications.

INPUT125 V dc
POWER INJ1
BOARD POWER2PL
DIAGNOSTICSJC
Engineering functions and interfaces follow the referenced manufacturer documentation.
Configuration note Signal configuration forDS200TCPSG1, installed system interfaces and application-specific configuration.
GENERAL INFORMATION −
BrandGE
Part numberDS200TCPSG1
Product typePower Supply Board
Input supply125 V dc from TCPD
Power-distribution interface2PL
Diagnostic interfaceJC
POWER CONNECTIONS ＋
J1Incoming 125 V dc from TCPD
2PLPower distribution to associated core boards
JP1 / JP2Power for TCDA and AAHA boards
CORE INTERFACES ＋
JCSupply diagnostic voltages to TCQC or TCCA
X1CCOM bus connection
ConfigurationNo TCPS hardware jumpers or software configuration
FUNCTIONAL CONTEXT ＋
System role: TCPD distributes cabinet power; TCPS converts that incoming supply for its associated core electronics. The JC diagnostic path allows the connected I/O electronics to monitor supply voltages.
Source:GEH-6153, Chapter 4 page 4-20, TCPS
FAQ

Questions Buyers Ask Most

What does DS200TCPSG1 do?＋

DS200TCPSG1 converts the distributed 125 V dc input into the operating supplies needed by the associated control and I/O electronics.

Where does DS200TCPSG1 receive its input power?＋

DS200TCPSG1 receives its 125 V dc input from the TCPD power-distribution board through J1.

What is 2PL used for on DS200TCPSG1?＋

DS200TCPSG1 uses 2PL to distribute converted power to the associated boards in the control or I/O core.

What is the function of JC on DS200TCPSG1?＋

DS200TCPSG1 uses JC to send power-supply diagnostic voltage signals to TCQC or TCCA for monitoring.

Which circuits use JP1 and JP2 on DS200TCPSG1?＋

DS200TCPSG1 provides power connections for the TCDA digital-I/O and AAHA ARCNET boards through JP1 and JP2.

Does DS200TCPSG1 require jumper or software settings?＋

DS200TCPSG1 has no hardware-jumper or software configuration in the TCPS arrangement documented by GEH-6153. X1 is its CCOM bus connection.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
DS200TCPSG1

Official manufacturer-documentation status for GE DS200TCPSG1.

Official datasheet status

No current official DS200TCPSG1 product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

No working manufacturer-hosted instruction or datasheet PDF was confirmed; contact Frida for the applicable document.

GE MARK V LM SYSTEM RELATIONSHIP

How DS200TCPSG1 Fits Mark V LM

GE is the manufacturer brand; GE Mark V LM is the product family; and DS200TCPSG1 is the power supply board.

GE · BRAND
GE Mark V LMPower Supply Board
SYSTEM ROLE

Input

supplies the associated core electronics, current outputs, RTD circuits and servo-valve current-output circuits.

MODULE / CONFIGURATION

Power Connections

Incoming 125 V dc from TCPD

ASSEMBLY FORMAT

DS200TCPSG1 · TCPS Board

GE Mark V LM power supply board.

System relationship: supplies the associated core electronics, current outputs, RTD circuits and servo-valve current-output circuits.
APPLICATION AREAS

Application map for DS200TCPSG1

Core Power ConversionConvert distributed 125 V dc for core electronics
Analog I/O SuppliesSupply current-output and RTD circuitry
Mark V LM DS200TCPSG1 DS200TCPSG1 · Power Supply Board
Digital I/O PowerProvide the TCDA power connection
Supply MonitoringPass diagnostic voltage signals through JC
