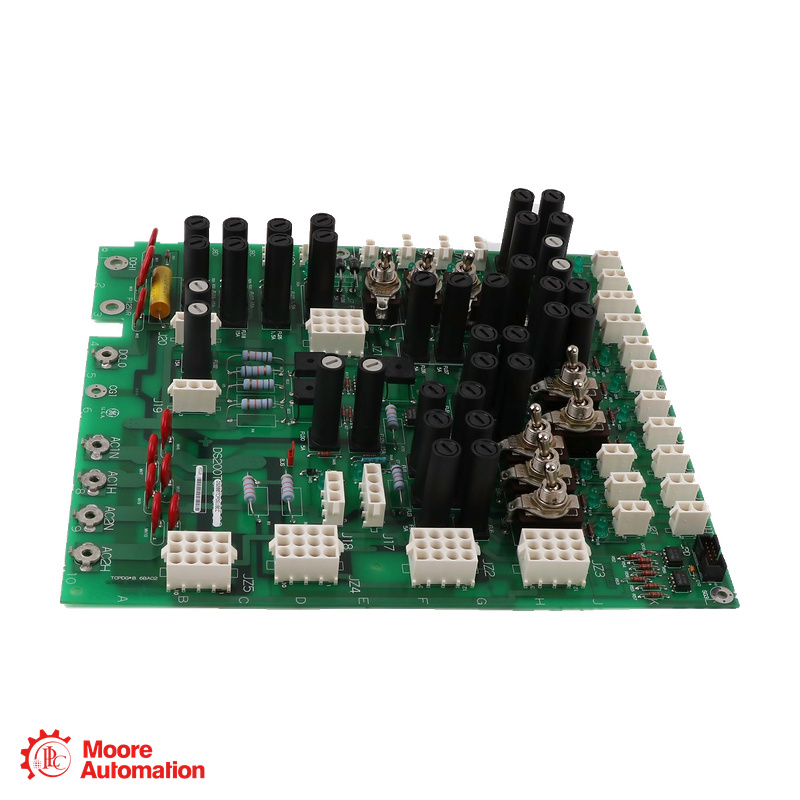

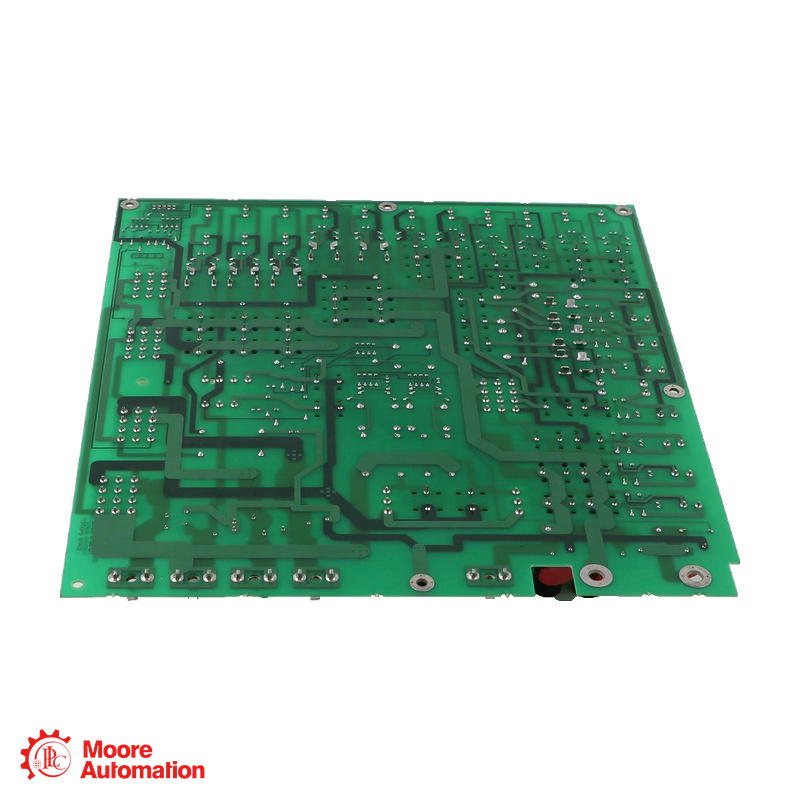

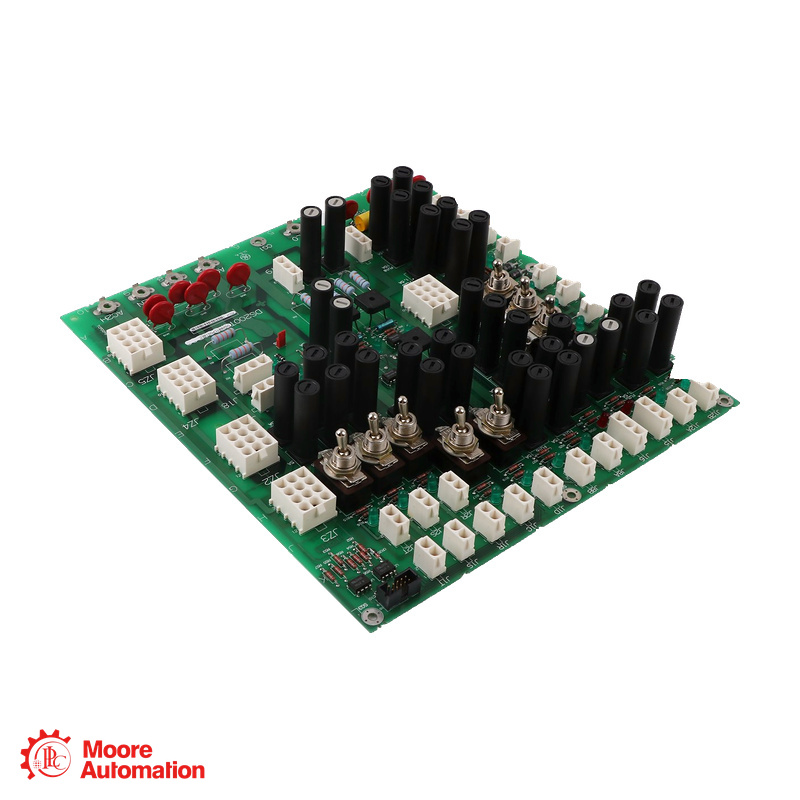

GE DS200TCPDG1B Mark V LM Power Distribution Module
GE DS200TCPDG1B Mark V LM Power Distribution Module
GE DS200TCPDG1B Mark V LM Power Distribution Module

GE DS200TCPDG1B Mark V LM Power Distribution Module

GE MARK V LM · POWER DISTRIBUTION MODULE

DS200TCPDG1B

DS200TCPDG1B distributes 125 V dc power to control, I/O and protective-core circuits in the GE Mark V LM turbine control system. Its SW1–SW8 switches control individual core or board power branches.

PRODUCT TYPEPOWER DISTRIBUTION MODULE
PLATFORMMark V LM
DC DISTRIBUTION125 V dc
BRANCH SWITCHESSW1–SW8
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● POWER DISTRIBUTION MODULE
Mark V LM

DS200TCPDG1B

POWER DISTRIBUTION MODULE

MARK V LM · CORE POWER DISTRIBUTION

MODULE ROLE
DS200TCPDG1B routes the incoming cabinet power to TCPS power-supply boards, TCEA protective processors, the TCTG trip board and the connected digital-I/O power circuits.
LONG DESCRIPTION
DS200TCPDG1B is the TCPD module in the Mark V LM power-distribution core. Incoming 125 V dc is distributed to the assigned control and I/O loads through dedicated connector branches. External 115/230 V ac enters through TB1; the JZ2 path connects to DACA for AC-to-DC conversion where that supply arrangement is fitted. SW1–SW8 provide individual core or board switching. The BJS hardware jumper defines the 125 V dc ground-reference arrangement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the DS200TCPDG1B Reference Is Structured

DS
ManufacturerGE, Salem, Virginia
200
Assembly levelBase-level board
TCPD
Functional acronymPower distribution module
G1
Group variationGroup 1
B
Functional revisionFirst functional revision B
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark V LM ↗
DS200TCPDG1B POWER DISTRIBUTION MODULE

Engineering data at a glance

Click “+” to expand more specifications.

DC DISTRIBUTION125 V dc
AC INPUT PATH115/230 V ac
SWITCHES8
GROUND REFERENCEBJS
Dedicated connector branches distribute power to the configured Mark V LM loads.
Configuration note Power routing forDS200TCPDG1B: TB1 receives the cabinet supply; DACA performs AC-to-DC conversion where an AC source is used.
GENERAL INFORMATION −
BrandGE
Part numberDS200TCPDG1B
Product typePower Distribution Module
Primary DC distribution125 V dc
External AC source115/230 V ac through TB1
Branch switches8, identified SW1–SW8
DC OUTPUT CONNECTIONS ＋
J1R / J1S / J1T / J1C / J1D125 V dc feeds to the assigned TCPS power-supply boards
J7W / J7X / J7Y / J7Z125 V dc feeds to TCTG and the three TCEA board positions
J8A / J8B / J8C / J8DSolenoid-power feeds to the DTBC and DTBD terminal boards
AC AND GROUND CONFIGURATION ＋
TB1 / JZ2Incoming AC source and the DACA AC-to-DC conversion path
JZ5AC power connection for ignition-transformer outputs
BJS125 V dc ground-reference hardware jumper
POWER ARCHITECTURE ＋
Distribution path: TCPD routes and switches cabinet power. TCPS boards convert the distributed 125 V dc into the voltage levels required by their associated electronics. When an AC source is used, the separate DACA module performs AC-to-DC conversion. TCPD has no software configuration.
Source:GEH-6153, Chapter 4 pages 4-18–4-20; Figure 4-1 and Appendix A page A-8
FAQ

Questions Buyers Ask Most

What is the function of DS200TCPDG1B in Mark V LM?＋

DS200TCPDG1B distributes 125 V dc to the assigned TCPS power-supply boards and protective-core circuits. It also provides the dedicated power branches used by connected solenoid and contact-input circuits.

Which incoming supplies are routed through DS200TCPDG1B?＋

DS200TCPDG1B receives the cabinet 125 V dc supply and external 115/230 V ac arrangement through TB1. When AC power is used, JZ2 routes that source to the separate DACA module for conversion to 125 V dc.

What do SW1–SW8 control on DS200TCPDG1B?＋

DS200TCPDG1B uses eight hardware switches to control the power branches assigned to individual cores or boards. Each switch operates its designated distribution path, allowing branch switching within the Mark V LM power arrangement.

Which connectors feed the protective boards from DS200TCPDG1B?＋

DS200TCPDG1B supplies the TCTG turbine-trip board through J7W. J7X, J7Y and J7Z provide the 125 V dc feeds for the three TCEA protective-processor positions.

What is the purpose of the BJS jumper on DS200TCPDG1B?＋

DS200TCPDG1B uses BJS to configure the ground-reference arrangement for the 125 V dc system. Its position follows the installed cabinet grounding design, including whether an external reference is already provided.

Does DS200TCPDG1B perform the AC-to-DC conversion?＋

DS200TCPDG1B provides the power-routing and switching interfaces. The separate DACA module performs the AC-to-DC conversion where fitted, while TCPS boards convert distributed 125 V dc into the operating voltages required by their associated electronics.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
DS200TCPDG1B

Official manufacturer-documentation status for GE DS200TCPDG1B.

Official datasheet status

No current official DS200TCPDG1B product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

No working manufacturer-hosted instruction or datasheet PDF was confirmed; contact Frida for the applicable document.

GE MARK V LM SYSTEM RELATIONSHIP

How DS200TCPDG1B Fits Mark V LM

GE is the manufacturer brand; GE Mark V LM is the product family; and DS200TCPDG1B is the power distribution module.

GE · BRAND
GE Mark V LMPower Distribution Module
SYSTEM ROLE

Core Power Distribution

Route 125 V dc to the assigned control, I/O and protective-core power branches.

MODULE / CONFIGURATION

Switched Connector Branches

SW1–SW8 control individual core or board feeds through dedicated connector paths.

ASSEMBLY FORMAT

DS200TCPDG1B · TCPD Module

Power-distribution module with AC-source routing and a BJS ground-reference jumper.

System relationship: Distribute the cabinet supplies to TCPS, protective boards and connected digital-I/O power circuits.
APPLICATION AREAS

Application map for DS200TCPDG1B

Control and I/O Core PowerSupply the assigned TCPS boards with 125 V dc
Protective-Core PowerFeed the TCEA protective processors and TCTG turbine-trip board
Mark V LM DS200TCPDG1B DS200TCPDG1B · Power Distribution Module
Digital-I/O PowerProvide solenoid and wetted-contact power branches for the connected terminal boards
AC Auxiliary PathsRoute the configured AC source to DACA and ignition-transformer connections
