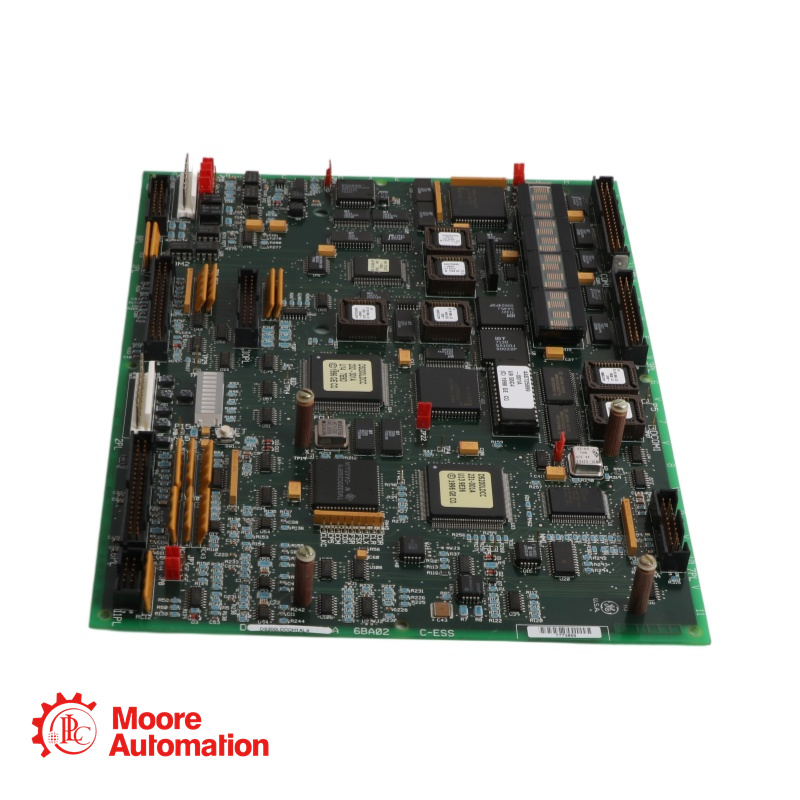

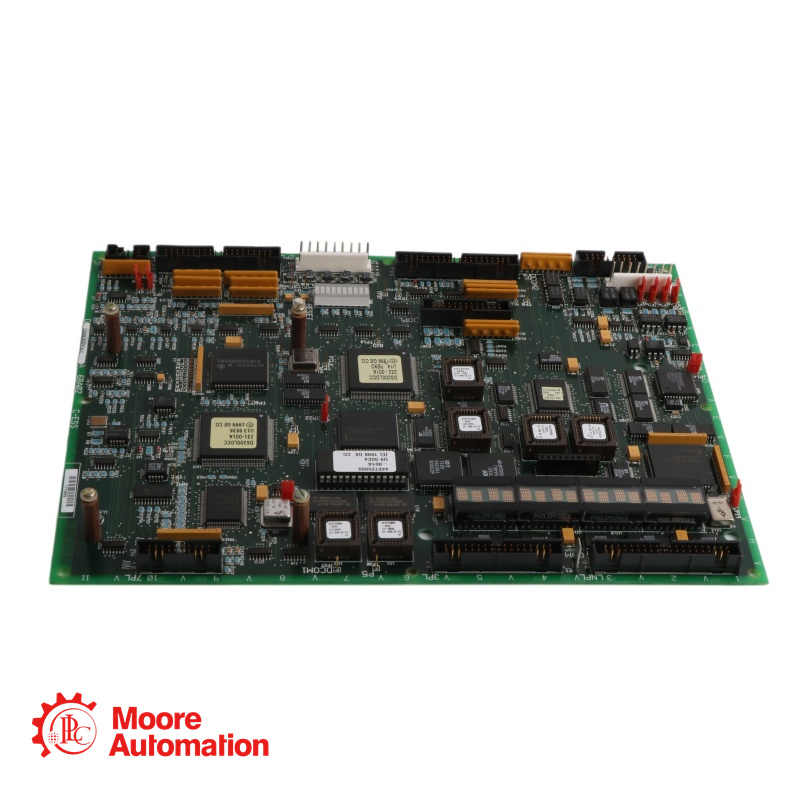

GE DS200LDCCH1AKA Communication Card

Inquire for Special Pricing

To Know DS200LDCCH1AKA

Product Series:Mark V
Functional Part Number:DS200LDCCH1AKA
Functional Description:Drive Control/LAN Communications Board
Instruction Manual:GEI-100216
Functional Acronym:LDCC
PCB Coating:Conformal Coating
1st Functional Revision:A
2nd Functional Revision:K
Artwork Revision:A

The DS200LDCCH1AKA is a drive control and local area network (LAN) communications board developed by General Electric. It was designed for GE's Mark V Turbine Control System series of drive boards. This card is compatible with GE DIRECTO-MATIC 2000 exciters and drives.
Onboard microprocessors provide various interfacing capabilities, including LAN communications, drive resets, motor and drive processing, and operator interface.
The Mark V Series is also one of the final General Electric Mark product series to incorporate their patented Speedtronic control system technology.
The DS200LDCCH1AKA is not the original product for its specific functionality within the Mark V Series; the DS200LDCCH1 parent board lacks its three significant product revisions.

Features:

▻Utilizes an onboard microprocessor to manage motor control, customer I/O, and drive resets.
▻Handles Local Area Network (LAN) communications for drive I/O, allowing integration with the broader turbine control network.
▻A 16-character digital display for real-time diagnostics and software adjustments.
▻Contains six socketed flash PROMs (U6, U7, U11, U12, U22, and U23) that hold factory configuration data, as well as an EEPROM (U9) for field-adjustable parameters.
▻LDCC: Drive Control/LAN Communication.
▻H1: High-performance or specific hardware group.
▻AKA: Specific revision suffix (A-rated functional product revision).

Alternative Names

DS200LDCCH1AKA

DS200LDCCH1A

DS200LDCCH1AK
