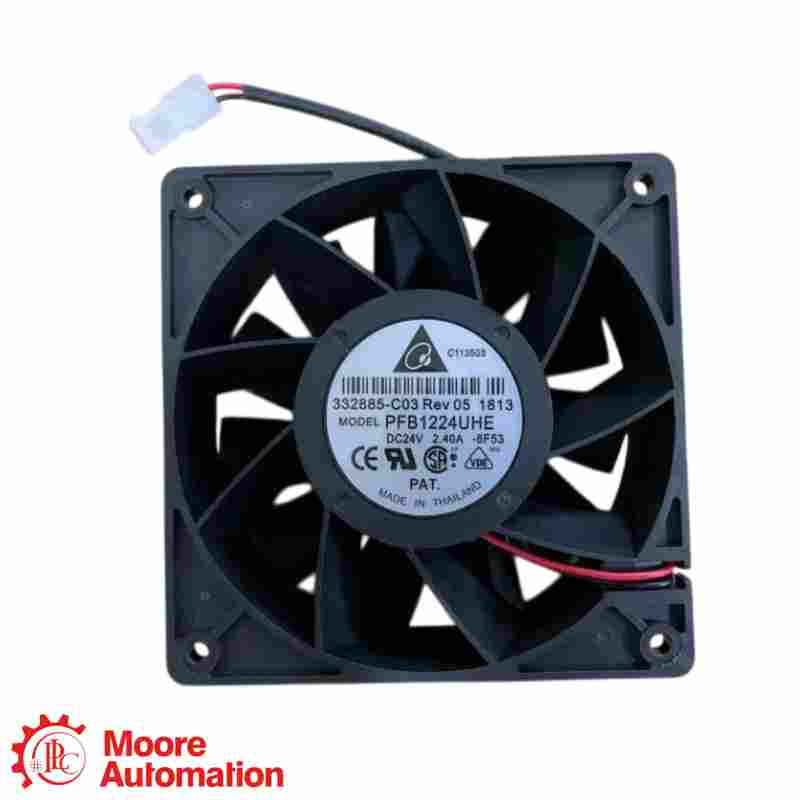

Delta Electronics PFB1224UHE 24 VDC Brushless Axial Fan

Delta Electronics PFB1224UHE 24 VDC Brushless Axial Fan

Delta Electronics · PFB Series DC Axial Fan

PFB1224UHE

The PFB1224UHE is a Delta Electronics 24 VDC brushless axial fan designed for high-airflow thermal management, with a 120 × 120 × 38 mm frame and ball-bearing construction.

DEVICE FAMILYDC Brushless Axial Fan
APPLICATIONIndustrial equipment thermal management
CONFIGURATION24 VDC · 5500 RPM · 252.85 CFM
ORDER NUMBERPFB1224UHE
MANUFACTURERDelta Electronics
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
DELTA ELECTRONICS ● HIGH-AIRFLOW DC FAN
Delta Electronics PFB Series

PFB1224UHE

DC Brushless Axial Flow Fan

24 VDC · 120 × 120 × 38 mm · ball bearing

MODULE ROLE
PFB1224UHE is a Delta Electronics 24 VDC brushless axial flow fan for industrial thermal management, rated at 5500 RPM with 252.85 CFM maximum airflow.
CONFIGURATION NOTE
For PFB1224UHE, confirm the exact fan model, rated voltage, operating range, lead-wire configuration, airflow direction, mounting dimensions and cooling-system requirements before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the PFB1224UHE model code is identified

PFB
Series codeDelta PFB fan series
12
Frame dimension120 mm square frame
24
Operating voltage24 VDC
UH
Speed codeUltra high speed
E
Frame thickness38 mm
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Delta Electronics PFB Series ↗
DC BRUSHLESS AXIAL FLOW FAN

Engineering data at a glance

Exact model and electrical data should be confirmed from the fan label and the official Delta Electronics specification.

RATED VOLTAGE24 VDC
APPLICATION252.85 CFM maximum airflow
CONFIGURATION5500 ±10% RPM
ORDER NUMBERPFB1224UHE
The official Delta Electronics specification identifies PFB1224UHE as a 24 VDC brushless axial fan with 48.0 W average input power, 5500 ±10% RPM and 252.85 CFM maximum airflow.
Exact model verification requiredConfirm PFB1224UHE, the 24 VDC supply, 21.6–26.4 VDC operating range, polarity, lead-wire functions, airflow direction, mounting and fan-guard requirements before installation or replacement.
GENERAL INFORMATION −
BrandDelta Electronics
ModelPFB1224UHE
Product typeDC Brushless Axial Flow Fan
SeriesPFB
Rated voltage24 VDC
Operating voltage range21.6–26.4 VDC
Electrical and Performance Data ＋
Input current2.00 A average; 2.40 A maximum
Input power48.0 W average; 57.60 W maximum
Speed5500 ±10% RPM
Maximum airflow252.85 CFM (7.16 m³/min)
Maximum air pressure1.412 inH₂O (35.877 mmH₂O)
Acoustical noise66.5 dB-A average; 70.5 dB-A maximum
Mechanical and Environmental Data ＋
Dimensions120 × 120 × 38 mm
Bearing systemTwo ball bearings
Weight380 g reference
Operating temperature−10 to +70 °C
Storage temperature−40 to +75 °C
Operating humidity5–90% RH
Protection and Service-Life Data ＋
Locked-rotor protectionCurrent shuts down while the blade is locked
Polarity protectionSpecified
Life expectancy (L10)70,000 h at 40 °C and 15–65% RH
Frame and impellerPlastic, UL 94V-0
Source: The official Delta Electronics PFB1224UHE specification provides the exact electrical, airflow, mechanical, environmental and protection data used on this page.
FAQ

Questions Buyers Ask Most

What type of fan is PFB1224UHE?＋

PFB1224UHE is a Delta Electronics DC brushless axial flow fan in the PFB series for high-airflow equipment cooling.

What supply range does PFB1224UHE?＋

PFB1224UHE is rated for 24 VDC operation and the official specification gives an operating range of 21.6–26.4 VDC.

What airflow and pressure ratings does PFB1224UHE?＋

PFB1224UHE is specified for 252.85 CFM maximum airflow and 1.412 inH₂O maximum static pressure at zero airflow.

What current and power ratings apply to PFB1224UHE?＋

PFB1224UHE draws 2.00 A average with 2.40 A maximum and 48.0 W average input power with 57.60 W maximum.

What are the dimensions and weight of PFB1224UHE?＋

PFB1224UHE uses a 120 × 120 × 38 mm frame and has a reference weight of 380 g.

Which environmental limits apply to PFB1224UHE?＋

PFB1224UHE is specified for −10 to +70 °C operation, −40 to +75 °C storage and 5–90% RH operating humidity.

What should be checked when ordering PFB1224UHE?＋

PFB1224UHE should be ordered only after confirming the complete model, 24 VDC supply, lead-wire and signal requirements, airflow direction, mounting dimensions, quantity and fan-label photos.

CONTACT PRODUCT SPECIALIST

Confirm your PFB1224UHE configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
PFB1224UHE

The official Delta Electronics specification identifies PFB1224UHE as a 24 VDC brushless axial flow fan and provides its electrical, airflow, mechanical, environmental and protection data.

Official Delta Electronics PFB1224UHE Specification

The official Delta Electronics PFB1224UHE specification lists 24 VDC rated voltage, 48.0 W average input power, 5500 ±10% RPM and 252.85 CFM maximum airflow.

OPEN OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are limited to the official Delta Electronics PFB1224UHE specification.

DELTA PFB FAN MODEL IDENTIFICATION

How PFB1224UHE is identified in the Delta PFB series

Delta Electronics is the manufacturer; PFB is the series code; and PFB1224UHE is the complete fan model.

Delta Electronics · BRAND
PFB1224UHE24 VDC · 120 × 120 × 38 mm · ULTRA HIGH SPEED
SERIES AND SIZE

PFB · 12

PFB is the series code and 12 identifies the 120 mm square frame dimension.

VOLTAGE

24

The 24 code identifies 24 VDC operation.

SPEED AND THICKNESS

UH · E

UH denotes ultra high speed and E identifies the 38 mm frame thickness.

Model check: match the complete PFB1224UHE label, voltage, lead-wire functions, airflow direction and mounting before replacement.
APPLICATION AREAS

Application and verification map for PFB1224UHE

Industrial CoolingHigh-airflow cooling for industrial electronic assemblies
Power and Network EquipmentThermal management where a 24 VDC 120 mm fan is specified
COOLING FANPFB1224UHE24 VDC DC Brushless Axial Flow Fan
Electrical VerificationConfirm the 24 VDC supply, polarity and operating range
Mechanical CheckMatch the 120 × 120 × 38 mm frame, mounting and airflow direction
