 /Bently Nevada AM3100T2-Z2-00 100 mV/g IEPE Accelerometer

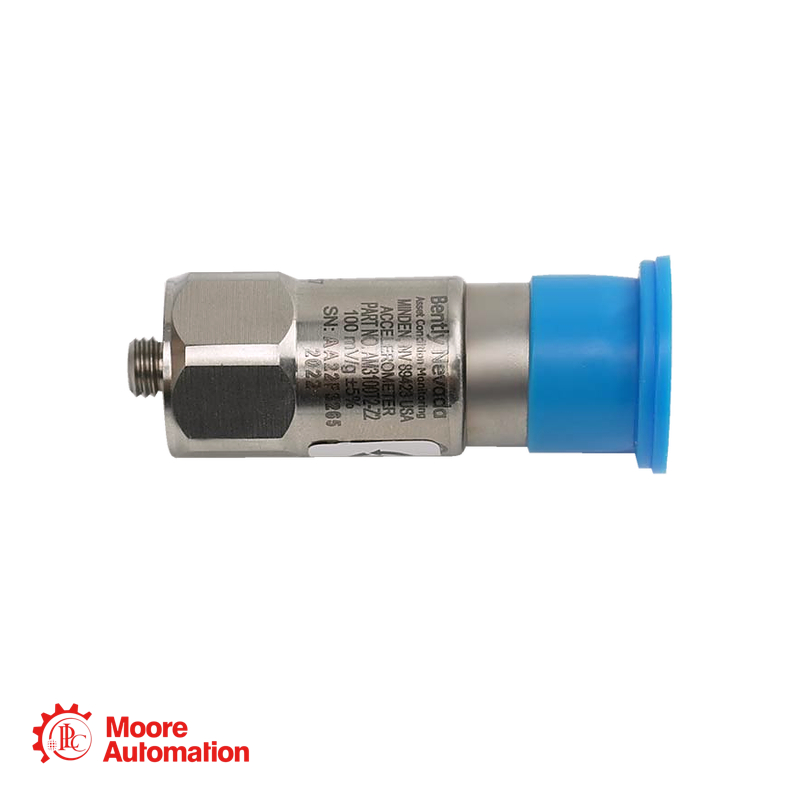

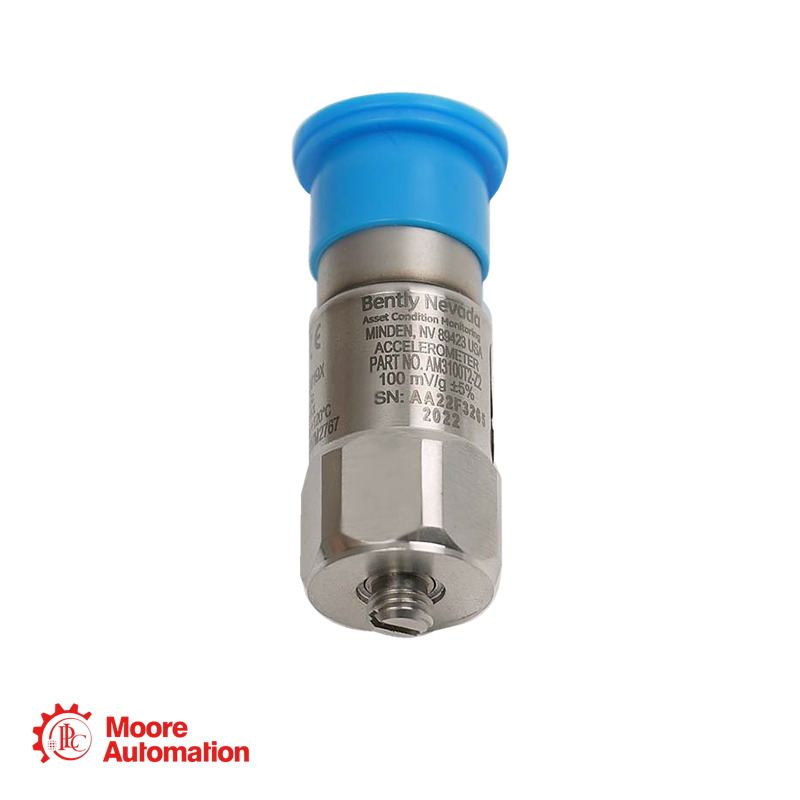

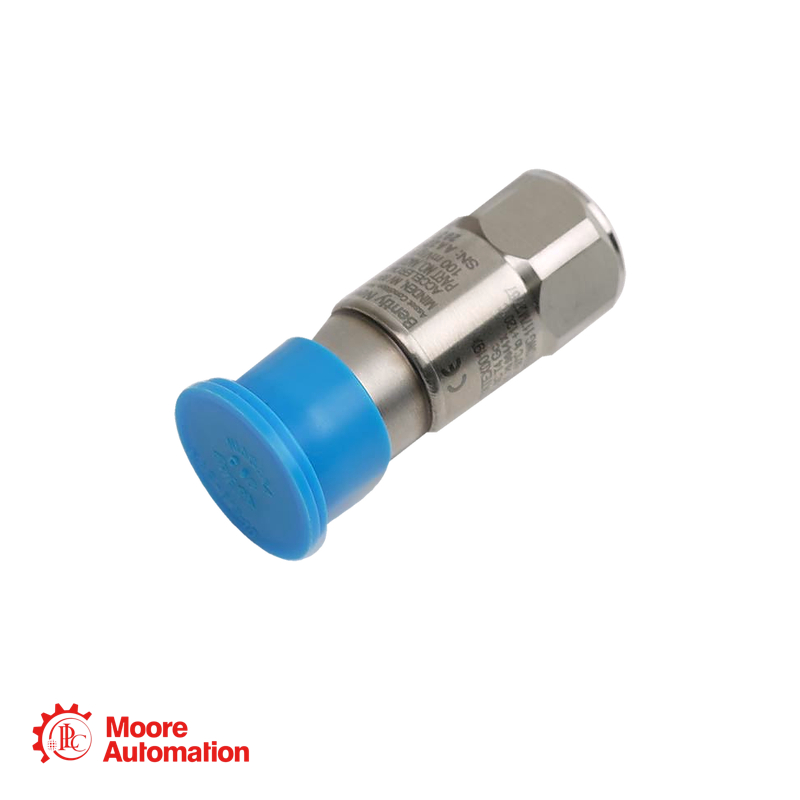

Bently Nevada AM3100T2-Z2-00 100 mV/g IEPE Accelerometer
Bently Nevada AM3100T2-Z2-00 100 mV/g IEPE Accelerometer
Bently Nevada AM3100T2-Z2-00 100 mV/g IEPE Accelerometer

Bently Nevada AM3100T2-Z2-00 100 mV/g IEPE Accelerometer

AM3100T2 · IEPE ACCELEROMETER

AM3100T2-Z2-00

AM3100T2-Z2-00 — A Bently Nevada top-exit IEPE accelerometer with 100 mV/g sensitivity, 80 g peak acceleration range and Zone 2 rating.

SENSITIVITY100 MV/G
ACCELERATION RANGE80 G PEAK
FREQUENCY RESPONSE0.7–9000 HZ
TEMPERATURE−55 TO +120 °C
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● AM3100T2 IEPE ACCELEROMETER
AM3100T2 IEPE ACCELEROMETER

AM3100T2-Z2-00

100 mV/g sensitivity · 80 g peak range · top-exit connector · Zone 2

100 mV/g IEPE Accelerometer

IEPE ACCELEROMETER
AM3100T2-Z2-00 — This Bently Nevada IEPE accelerometer converts case-mounted machinery vibration into a proportional electrical signal for vibration monitoring and analysis.
CONFIGURATION NOTE
AM3100T2 identifies a top-exit 100 mV/g IEPE accelerometer with an 80 g peak range; Z2 identifies the Zone 2 rated version. The final 00 suffix is retained as part of the supplied full model identity because its meaning is not defined in the public datasheet.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

AM3100T2
Sensor modelTop-exit 100 mV/g IEPE accelerometer
Z2
Approval optionZone 2 rated version
00
Supplied suffixRetained in complete model identity
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
AM3100T2 IEPE ACCELEROMETER

Engineering data at a glance

Click “+” to expand more specifications.

SENSITIVITY100 MV/G
ACCELERATION RANGE80 G PEAK
FREQUENCY RESPONSE0.7–9000 HZ
TEMPERATURE−55 TO +120 °C
Manufacturer-reference characteristics for this product family and order code.
Configuration checkMatch the complete AM3100T2-Z2-00 identifier, sensitivity, connector orientation, approval requirement and measurement range.
General Information −
BrandBently Nevada
Part numberAM3100T2-Z2-00
Product typeIEPE Accelerometer
Sensitivity100 mV/g ±5% at 25 °C
Acceleration range80 g peak
Construction316L stainless steel · hermetic
Performance ＋
Frequency response±10%: 0.7 to 9000 Hz
Frequency response±3 dB: 0.4 to 14000 Hz
Resonant frequency30 kHz
Temperature range−55 to +120 °C
Electrical & Mechanical ＋
Excitation18 to 30 Vdc · 2 to 10 mA
ConnectorTop-exit 2-pin MIL-C-5015 style
Mounting1/4-28 UNF tapped
Typical mass62 g
Model Identity ＋
Approval codeZ2 · Zone 2 rated
Final suffix00 · Retained from supplied model; not decoded in public reference
Source: Bently Nevada Case-Mounted Accelerometers Datasheet, 124M2609 Rev. H. The public datasheet supports AM3100T2-Z2 performance and approval data but does not define the added 00 suffix.
FAQ

Questions Buyers Ask Most

What does AM3100T2-Z2-00 measure? AM3100T2-Z2-00＋

It measures case-mounted machinery vibration and provides an IEPE electrical output for monitoring and analysis.

What are the sensitivity and acceleration range? AM3100T2-Z2-00＋

The published AM3100T2 specification is 100 mV/g ±5% at 25 °C with an 80 g peak acceleration range.

What frequency range does the sensor support? AM3100T2-Z2-00＋

The published response is 0.7 to 9000 Hz within ±10%, and 0.4 to 14000 Hz within ±3 dB.

What does the Z2 option identify? AM3100T2-Z2-00＋

Z2 identifies the Zone 2 rated version of the AM3100T2 accelerometer.

What should be matched when ordering? AM3100T2-Z2-00＋

Match the complete AM3100T2-Z2-00 identifier, top-exit connector, sensitivity, approval requirement and mounting interface.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete model number, nameplate photo and application requirements for an exact product check.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
AM3100T2-Z2-00

Manufacturer-supported performance data is available for the Bently Nevada AM3100T2-Z2 accelerometer.

Manufacturer reference status

The public manufacturer datasheet documents AM3100T2-Z2 but does not list the complete AM3100T2-Z2-00 identifier. Contact Frida for documentation matched to the supplied full model.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The public datasheet supports AM3100T2-Z2 performance and approval data but does not define the added 00 suffix.

CASE-MOUNTED IEPE ACCELEROMETER

How AM3100T2-Z2-00 Fits into the AM3100T2 Accelerometer Family

Bently Nevada is the manufacturer. AM3100T2-Z2-00 is a Bently Nevada case-mounted IEPE accelerometer identified with 100 mV/g sensitivity, an 80 g peak range and Zone 2 rating.

Bently Nevada · BRAND
Bently Nevada AM3100T2 Accelerometer FamilyPRODUCT FAMILY · IEPE ACCELEROMETER
SENSITIVITY

100 mV/g

Published sensitivity is 100 mV/g ±5% at 25 °C.

MEASUREMENT RANGE

80 g Peak

The accelerometer supports up to 80 g peak acceleration.

CONSTRUCTION

316L Stainless Steel

The hermetic sensor uses a 316L stainless steel housing and PZT shear element.

System relationship: use the complete AM3100T2-Z2-00 reference when identifying this 100 mV/g IEPE Accelerometer.
APPLICATION AREAS

Functions and integration points for AM3100T2-Z2-00

Case VibrationMeasures acceleration on machinery housings for vibration monitoring.
Condition MonitoringProvides an IEPE signal for trend and diagnostic analysis.
APPLICATION CENTER AM3100T2-Z2-00 100 mV/g IEPE Accelerometer
Broadband MeasurementSupports vibration frequencies from sub-hertz response through the kilohertz range.
Hazardous Area OptionThe Z2 version is intended for installations requiring the listed Zone 2 rating.
