 /Bently Nevada 3500/62-03-00 Process Variable Monitor

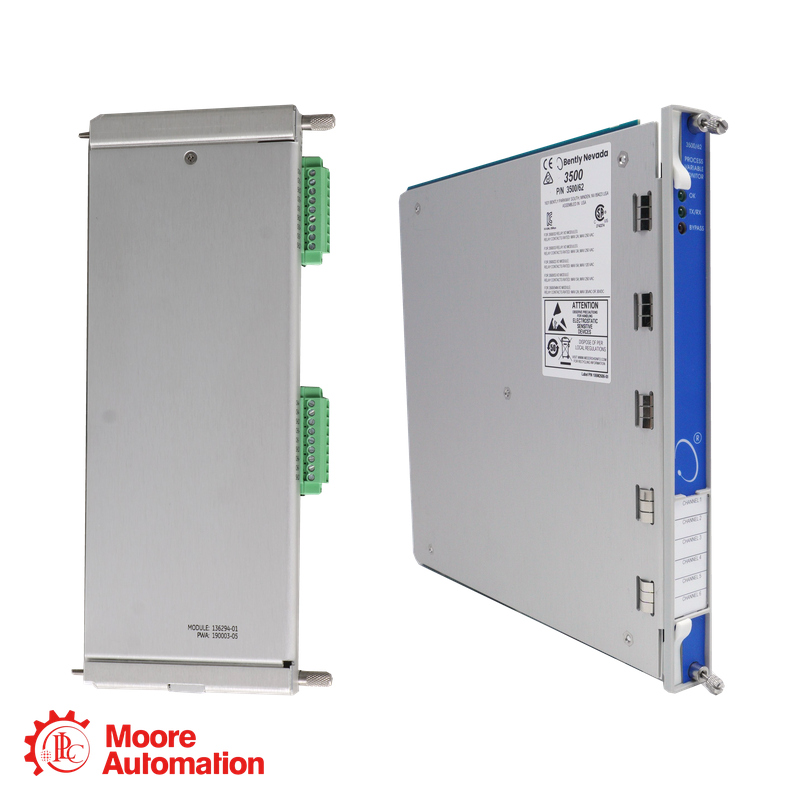

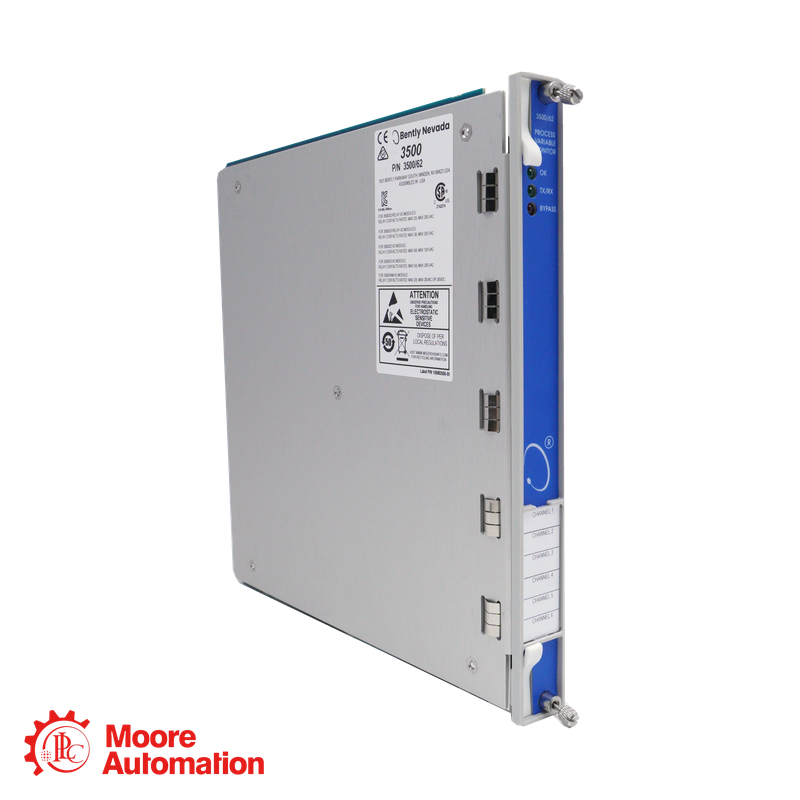

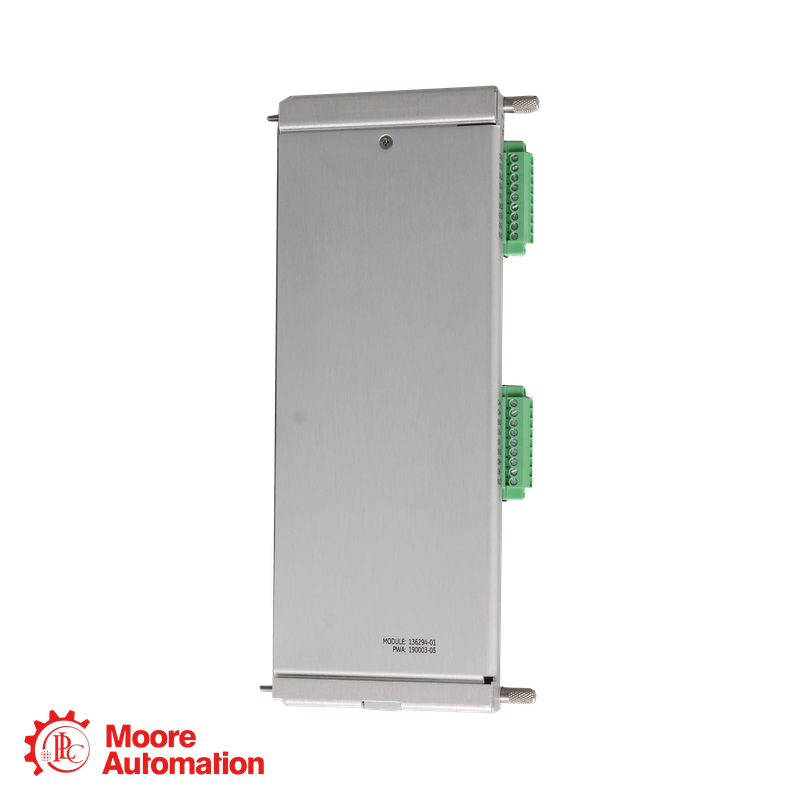

Bently Nevada 3500/62-03-00 Process Variable Monitor
Bently Nevada 3500/62-03-00 Process Variable Monitor
Bently Nevada 3500/62-03-00 Process Variable Monitor

Bently Nevada 3500/62-03-00 Process Variable Monitor

3500 SERIES · PROCESS VARIABLE MONITOR

3500/62-03-00

3500/62-03-00 — A six-channel Bently Nevada 3500/62 Process Variable Monitor configured with isolated 4–20 mA I/O option 03 with internal terminations and no agency approval option.

CHANNELS6
I/O MODULEISOLATED 4–20 MA
POWER7.0 W TYPICAL
APPROVALNONE
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3500/62 PROCESS VARIABLE MONITOR
3500/62 PROCESS VARIABLE MONITOR

3500/62-03-00

Six channels · Isolated 4–20 mA I/O · 7.0 W typical · No agency approval

3500/62 Process Variable Monitor

MACHINERY PROTECTION MONITORING
3500/62-03-00 — This six-channel process-variable monitor accepts isolated 4–20 mA inputs for continuous monitoring of pressures, flows, temperatures, levels and other critical parameters.
CONFIGURATION NOTE
3500/62 identifies the Process Variable Monitor; 03 specifies isolated 4–20 mA I/O with internal terminations, and 00 specifies no agency approval.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

3500/62
Base modelFour-channel Process Variable Monitor
03
I/O moduleIsolated 4–20 mA I/O · Internal terminations
00
Approval optionNo agency approval
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3500/62 PROCESS VARIABLE MONITOR

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT241.3 MM
WIDTH24.4 MM
DEPTH241.8 MM
WEIGHT0.82 KG
Values from the manufacturer datasheet.
Configuration check Confirm the complete order code, I/O termination option, approval requirement, connected transducer type and rack configuration before ordering.
General Information −
BrandBently Nevada
Part number3500/62-03-00
Product typeProcess Variable Monitor
Product family3500 Machinery Protection System
ChannelsSix
Power consumption7.0 W typical
I/O Configuration ＋
I/O option03 · Isolated 4–20 mA I/O
I/O part numberInternal-termination isolated I/O
TerminationsInternal terminations
Transducer supportIsolated 4–20 mA DC inputs
Environmental and Physical ＋
Operating temperature−30°C to +65°C
Storage temperature−40°C to +85°C
Humidity95%, noncondensing
Rack space1 full-height front slot + 1 full-height rear slot
Monitoring Functions ＋
Accepted signalsSix isolated 4–20 mA process-variable signals
Channel programmingCurrent measurement through 3500 Rack Configuration Software
Supported measurementsPressure, flow, temperature, level and other proportional process variables
FAQ

Questions Buyers Ask Most

What is 3500/62-03-00 used for?＋

3500/62-03-00 is a six-channel Process Variable Monitor used in the Bently Nevada 3500 Machinery Protection System. This six-channel process-variable monitor accepts isolated 4–20 mA inputs for continuous monitoring of pressures, flows, temperatures, levels and other critical parameters.

What input configuration does 3500/62-03-00 use?＋

3500/62-03-00 uses 03 · Isolated 4–20 mA I/O. Internal terminations.

Which measurements does 3500/62-03-00 support?＋

3500/62-03-00 supports Pressure, flow, temperature, level and other proportional process variables.

What rack space does 3500/62-03-00 require?＋

3500/62-03-00 uses one full-height front rack slot, while its associated I/O module uses one full-height rear slot.

What should I provide for a 3500/62-03-00 quotation?＋

3500/62-03-00 should be quoted against the complete reference, installed rack configuration, connected transducer or signal type, quantity and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 3500/62-03-00 order number, rack configuration and connected transducer details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
3500/62-03-00

Official manufacturer documentation for the Bently Nevada 3500/62 Process Variable Monitor, its I/O configuration and ordering options.

Bently Nevada Datasheet 141541

Bently Nevada Datasheet 141541 identifies ordering option 03 as isolated 4–20 mA I/O with internal terminations; option 00 specifies no agency approval.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the Bently Nevada 3500/62 Process Variable Monitor Datasheet, Part Number 141541.

3500 MACHINERY PROTECTION SYSTEM

How 3500/62-03-00 Fits into the 3500 System

Bently Nevada is the manufacturer. 3500/62-03-00 is a six-channel Process Variable Monitor configured with isolated 4–20 mA I/O option 03 and no agency approval option. It accepts proximity, velocity or acceleration transducer signals for machinery-protection measurements.

Bently Nevada · BRAND
Bently Nevada 3500 SystemPRODUCT FAMILY · MACHINERY PROTECTION
SIGNAL INPUT

Isolated 4–20 mA

Accepts six isolated 4–20 mA process-variable input signals.

I/O CONFIGURATION

Internal Terminations

Option 03 specifies isolated 4–20 mA I/O with internal terminations.

RACK POSITION

Front + Rear Slots

The monitor uses one full-height front slot and its I/O module one full-height rear slot.

System relationship: the 3500/62 monitor conditions transducer signals and compares them with user-programmable alarms in the 3500 machinery-protection rack.
APPLICATION AREAS

Functions and integration points for 3500/62-03-00

Pressure MonitoringProcesses proportional transmitter signals for critical pressure measurements.
Flow MonitoringSupports continuous flow-variable monitoring and alarm comparison.
APPLICATION CENTER 3500/62-03-00 Six-channel Process Variable Monitor
Temperature InputsAccepts proportional process-temperature transmitter signals.
Level MonitoringSupports continuous level-variable monitoring with configured alarm setpoints.
