Product Overview

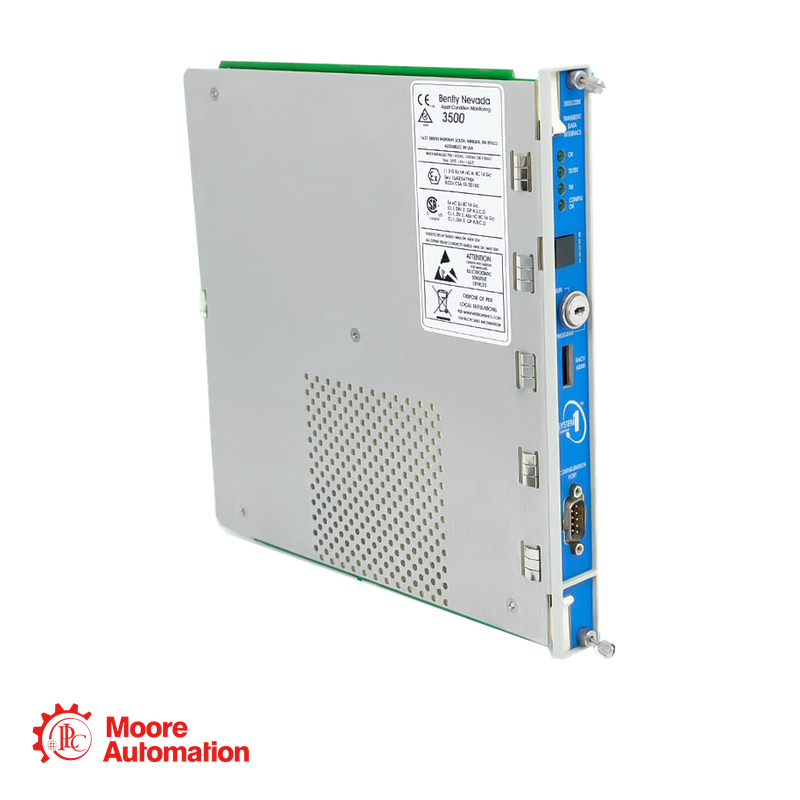

The Bently Nevada 3500/22-02-00 is a Transient Data Interface (TDI) configuration for the 3500 Machinery Protection System. It combines rack-interface functions with machinery-data collection, linking the 3500 rack to compatible configuration and condition-monitoring software. This configuration uses a 100Base-FX fiber optic Ethernet I/O connection. The TDI installs in Slot 1 beside the power supplies and works with compatible 3500 M-series monitor modules to collect steady-state and waveform-related machinery data for host software.

Order Number Breakdown

Position	Code	Description
Product Series	3500/22	Bently Nevada 3500/22 Transient Data Interface family.
I/O Module Type	2	100Base-FX fiber optic Ethernet.
Agency Approval Option	0	None.

Technical Information

Manufacturer: Bently Nevada
Product Line: 3500 Machinery Protection System
Ordering Number: 3500/22-02-00
Product Type: Transient Data Interface (TDI) Module
I/O Module Type: 100Base-FX fiber optic Ethernet
Maximum Fiber Cable Length: 2000 m (6560 ft)
Maximum USB Cable Length: 5 m (16.4 ft)
Power Consumption: 10.5 W
Operating Temperature: -30°C to +65°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95%, non-condensing
Agency Approval Option: 00 — None

Benefits&Features

Feature	Benefit
100Base-FX fiber optic Ethernet	Provides a full-duplex multimode fiber connection for host-software communication.
Long fiber cable capability	Supports fiber optic cable lengths up to 2000 m (6560 ft).
Rack interface and data collection	Combines 3500 rack-interface functions with machinery-data collection capability.
Static data capture	Collects monitored static values as a standard function.
Dynamic data capability	Supports dynamic and high-resolution transient waveform collection with a Dynamic Data Enabling Disk.
M-series monitor integration	Interfaces with compatible Bently Nevada 3500 M-series monitor modules.
Slot 1 installation	Occupies the dedicated rack position beside the power supplies.
Independent protection operation	Supports communication and diagnostics without affecting the critical machinery-protection path.

Application Areas

• Fiber optic communication for Bently Nevada 3500 monitoring racks
• Machinery condition monitoring and diagnostic data collection
• Long-distance data transmission between a 3500 rack and host software
• Steady-state and transient waveform acquisition
• Rotating-equipment monitoring systems using compatible 3500 M-series monitors

Frequently Asked Questions

1. What is the function of the 3500/22-02-00?
It is a Transient Data Interface that combines rack-interface functions with machinery-data collection for a Bently Nevada 3500 monitoring rack.

2. What communication interface does 3500/22-02-00 use?
Code 02 identifies a 100Base-FX fiber optic Ethernet I/O configuration.

3. What fiber connector is used by the 100Base-FX I/O module?
The fiber optic I/O uses an MT-RJ male connector and requires a matching MT-RJ female fiber connector.

Main brands
