3300 NSv Probe, M10X1 thread, without armor
Marque :
Bently NevadaNuméro d'article :
330930-060-04-00Lester :
0.1 kgDimension :
18x18x2cmPays d'origine :
USACode SH :
8537101190La description :
NSv Extension Cable
330930-060-04-00

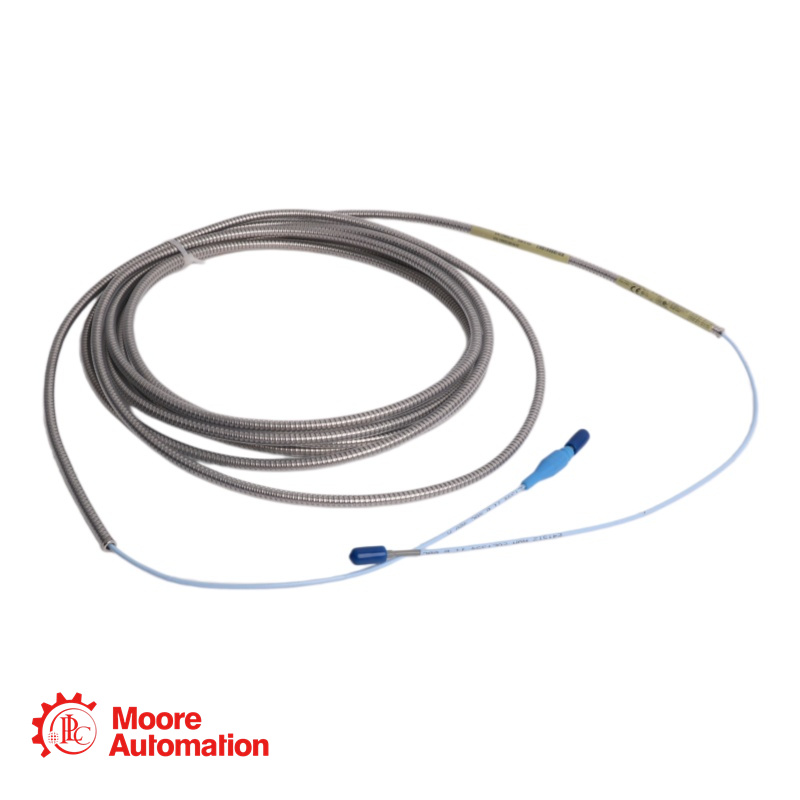

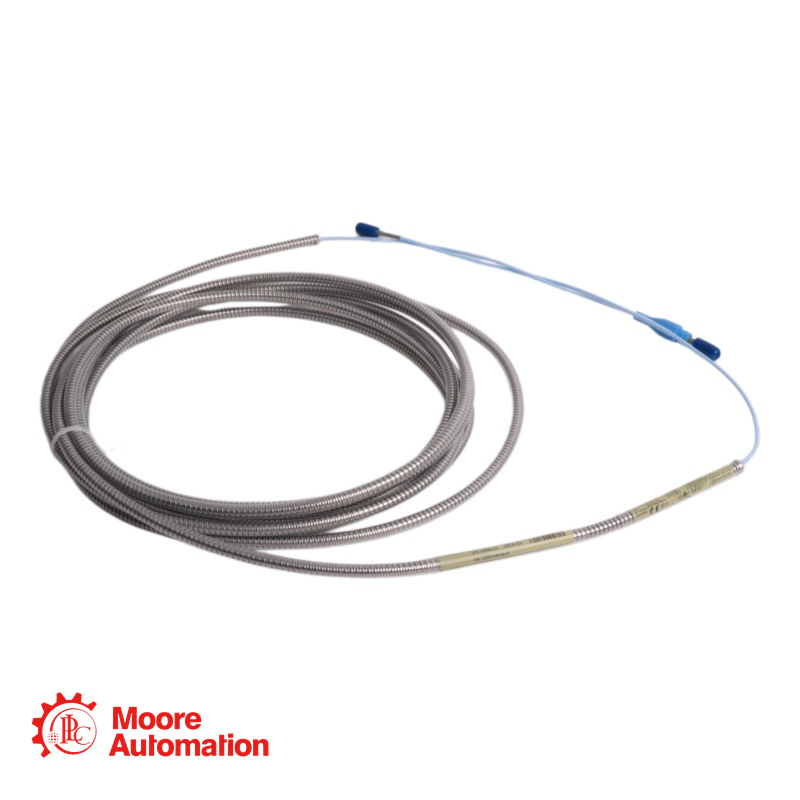

The 330930-060-04-00 is a 3300 NSv Extension Cable designed for use with the 3300 XL NSv Proximity Transducer System. It connects a 3300 NSv probe to a 3300 XL NSv Proximitor Sensor. The cable features stainless steel armor with an FEP jacket and includes a connector protector for enhanced environmental protection at the connection points.
This extension cable is mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300 RAM extension cable.
|
Specifications: 330930-060-04-00
Part Number-AA-BB-CC-DD-EE |
|
|
Parameter |
Specification |
|
Base Model |
330930 |
|
Cable Length (Option A) |
060: 6.0 meters (19.7 feet) |
|
Connector and Cable Option (Option B) |
04: With stainless steel armor, with FEP jacket, with connector protector |
|
Agency Approval (Option C) |
00: Not required |
Electrical Specifications
Parameter
Specification
Cable Type
75 Ω coaxial, fluoroethylene propylene (FEP) insulated
Armor
Flexible AISI 302 stainless steel with FEP outer jacket
Connector Type
Gold-plated brass ClickLoc connectors (female on cable end)
Connector Protector
Included (on female end)
Extension Cable DC Resistance (Center Conductor)
0.220 Ω/m (0.067 Ω/ft)
330930-060-04-00 FAQ
Q: What is the total length of this extension cable?
A: The 060 in the part number indicates a cable length of 6.0 meters (19.7 feet).
Q: What type of armor does this cable have?
A: Option 04 specifies stainless steel armor with an FEP outer jacket. The armor is flexible AISI 302 stainless steel.
Q: Does this cable include a connector protector?
A: Yes. Option 04 includes a connector protector installed on the female end of the cable. Connector protectors prevent most liquids from entering the ClickLoc connectors and adversely affecting the electrical signal.
Q: What is the temperature range for this extension cable?
A: The operating and storage temperature range is -52°C to +177°C (-62°F to +351°F).
Q: What type of connectors does this cable use?
A: The cable uses gold-plated brass ClickLoc connectors. They are corrosion-resistant, require only finger-tight torque (audible click), and have a locking mechanism that prevents loosening.
Q: What is the minimum bend radius for this cable?
A: The minimum bend radius is 25.4 mm (1.0 in) , with or without stainless steel armor.
Q: What are the DC resistance specifications for this cable?
A: The center conductor resistance is 0.220 Ω/m (0.067 Ω/ft) , and the shield resistance is 0.066 Ω/m (0.020 Ω/ft).
|
