 /Bently Nevada 330730-040-12-00 3300 XL 11 mm Extension Cable

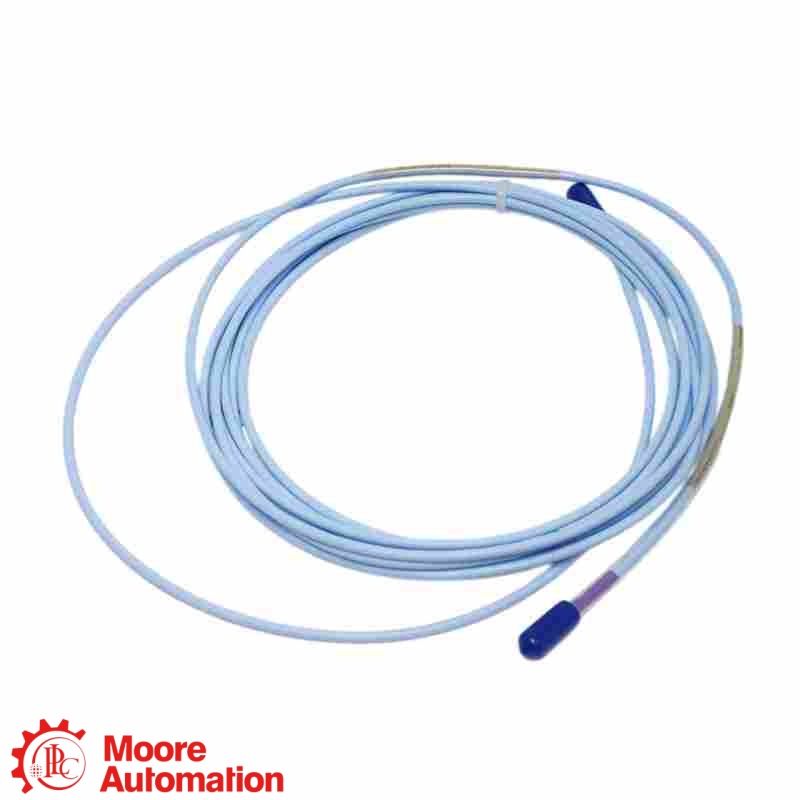

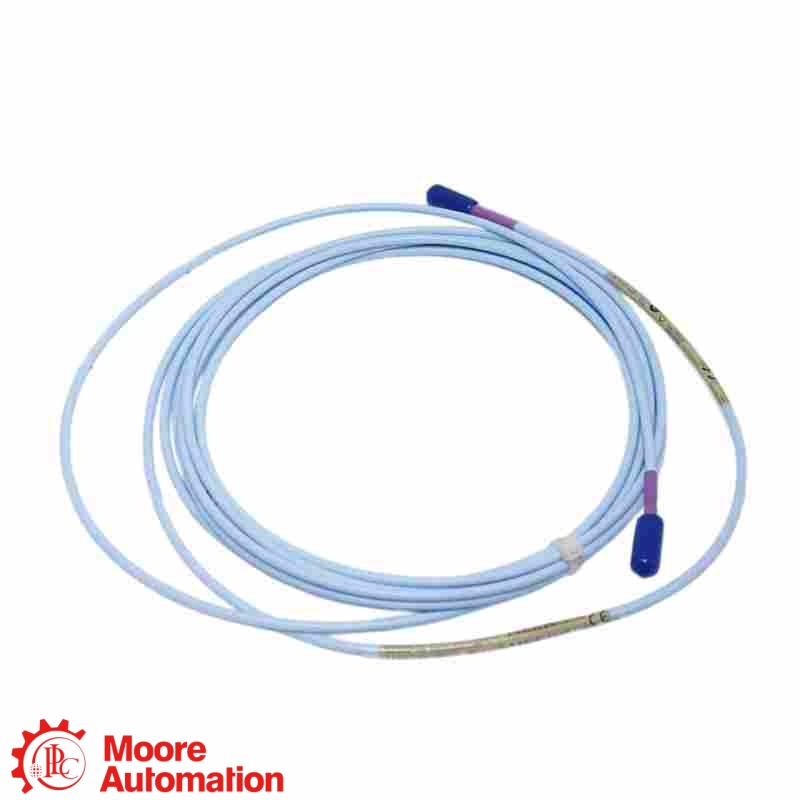

Bently Nevada 330730-040-12-00 3300 XL 11 mm Extension Cable
Bently Nevada 330730-040-12-00 3300 XL 11 mm Extension Cable
Bently Nevada 330730-040-12-00 3300 XL 11 mm Extension Cable

Bently Nevada 330730-040-12-00 3300 XL 11 mm Extension Cable

3300 XL · EXTENSION CABLE

330730-040-12-00

330730-040-12-00 — A Bently Nevada 3300 XL 11 mm FluidLoc Extension Cable, 4.0 metres long, with a ClickLoc connector protector and no agency approval option.

LENGTH4.0 M
CABLEFLUIDLOC
CONNECTORCLICKLOC
APPROVALNONE
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 11 MM EXTENSION CABLE
3300 XL 11 MM EXTENSION CABLE

330730-040-12-00

4.0 m FluidLoc cable · ClickLoc connector protector · No approvals

3300 XL 11 mm Extension Cable

SIGNAL CONNECTION ROLE
330730-040-12-00 — The 330730 extension cable carries the proximity-probe signal to the matching 3300 XL 11 mm Proximitor Sensor, while the FluidLoc construction helps resist oil migration through the cable interior.
CONFIGURATION NOTE
330730 identifies the 3300 XL 11 mm Extension Cable; option 040 specifies 4.0 metres, option 12 specifies FluidLoc cable with connector protector, and option 00 specifies no agency approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330730
Base model3300 XL 11 mm Extension Cable
040
Cable length4.0 metres (13.1 ft)
12
Cable optionFluidLoc cable with connector protector
00
Approval optionNo agency approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 11 MM EXTENSION CABLE

Engineering data at a glance

Click “+” to expand more specifications.

LENGTH4.0 M
CABLEFLUIDLOC
CONNECTORCLICKLOC
APPROVALNONE
Configuration from manufacturer ordering data.
Configuration check Confirm the complete order code, cable length, FluidLoc option, connector protector, approval option and total matched 3300 XL 11 mm system length before ordering.
General Information −
BrandBently Nevada
Part number330730-040-12-00
Product type3300 XL 11 mm Extension Cable
Product family3300 XL 11 mm Proximity Transducer System
Connection roleLinks the 11 mm probe to the matching Proximitor Sensor
Fluid control featureFluidLoc helps prevent oil migration through the cable interior
Cable Configuration ＋
Cable length4.0 metres (13.1 ft)
Cable constructionFluidLoc
Connector typeGold-plated ClickLoc
System Interface ＋
Connector protectorFactory-installed
Compatible probe3300 XL 11 mm Proximity Probe
Matching sensor3300 XL 11 mm Proximitor Sensor
Cable jacketFEP-insulated triaxial cable
Agency approvalOption 00 · none
System Performance ＋
With matching 3300 XL 11 mm components: 4.0 mm (160 mil) linear range, 3.94 V/mm (100 mV/mil) scale factor, and 0 to 8 kHz frequency response.
Source: Bently Nevada 3300 XL 11 mm Proximity Transducer System Datasheet, Part Number 146256, Rev. T. System performance requires the correct probe, extension cable and Proximitor Sensor combination under the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 330730-040-12-00 used for?＋

330730-040-12-00 is a 4.0 metre FluidLoc extension cable for a matched Bently Nevada 3300 XL 11 mm proximity transducer system.

What does the 330730-040-12-00 code specify?＋

For 330730-040-12-00, 330730 identifies the 11 mm extension cable, 040 specifies 4.0 metres, 12 specifies FluidLoc cable with connector protector, and 00 specifies no approvals.

Can 330730-040-12-00 be substituted with a similar part number?＋

Do not substitute 330730-040-12-00 by appearance or family name alone. Compare the cable length, connector and cable option, approvals option and the required total transducer-system length.

What does the FluidLoc option on 330730-040-12-00 provide?＋

330730-040-12-00 uses FluidLoc construction to help prevent oil and other liquids from migrating through the cable interior; its connector protector adds environmental protection at the connection.

What should I provide for a 330730-040-12-00 quotation?＋

Send the complete 330730-040-12-00 label, quantity, probe model, Proximitor Sensor model, required total system length, approval requirements and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete cable label and matched 3300 XL 11 mm probe and Proximitor Sensor details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330730-040-12-00

Official manufacturer documentation for the Bently Nevada 3300 XL 11 mm Extension Cable and its matched proximity transducer system.

Official manufacturer datasheet

Bently Nevada Datasheet 146256 identifies 330730 as the 3300 XL 11 mm Extension Cable. For this order code, 040 specifies 4.0 metres, 12 specifies FluidLoc cable with connector protector, and 00 specifies no agency approval.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use Bently Nevada 3300 XL 11 mm Proximity Transducer System Datasheet, Part Number 146256, Rev. T.

3300 XL 11 MM SYSTEM CONNECTION

How 330730-040-12-00 Fits into the 3300 XL 11 mm Transducer System

Bently Nevada is the manufacturer. 330730-040-12-00 is a 4.0 metre FluidLoc extension cable with a ClickLoc connector protector and no agency approval option. It connects a matching 3300 XL 11 mm probe to the matching Proximitor Sensor.

Bently Nevada · BRAND
Bently Nevada 3300 XL 11 mm SystemPRODUCT FAMILY · TRANSDUCER SYSTEM
PROBE-SIDE CONNECTION

ClickLoc Interface

Gold-plated ClickLoc connectors lock the probe and extension-cable connection into place.

FLUID CONTROL

FluidLoc Cable

FluidLoc construction helps prevent oil and other liquids from migrating through the cable interior.

SENSOR-SIDE CONNECTION

Matched Proximitor Sensor

The extension cable completes the signal path between the 11 mm probe and the matching 3300 XL 11 mm Proximitor Sensor.

System relationship: the cable length, connector option and total system length must match the installed probe and Proximitor Sensor.
APPLICATION AREAS

Functions and integration points for 330730-040-12-00

Radial Vibration Signal PathCarries the probe signal used by matched systems for radial vibration measurement.
Axial Position Signal PathConnects the probe signal path used for axial or thrust position measurement.
APPLICATION CENTER 330730-040-12-00 3300 XL 11 mm Extension Cable
Keyphasor Signal PathSupports the matched proximity-system connection used for Keyphasor measurements.
Fluid-Film Bearing MachinesProvides the extension connection for proximity measurements on fluid-film bearing machinery.
