PROBE ELEMENT
5.2 mm Probe Tip
The compact 5.2 mm probe tip fits constrained mounting areas while the system retains a 2 mm (80 mil) linear range.

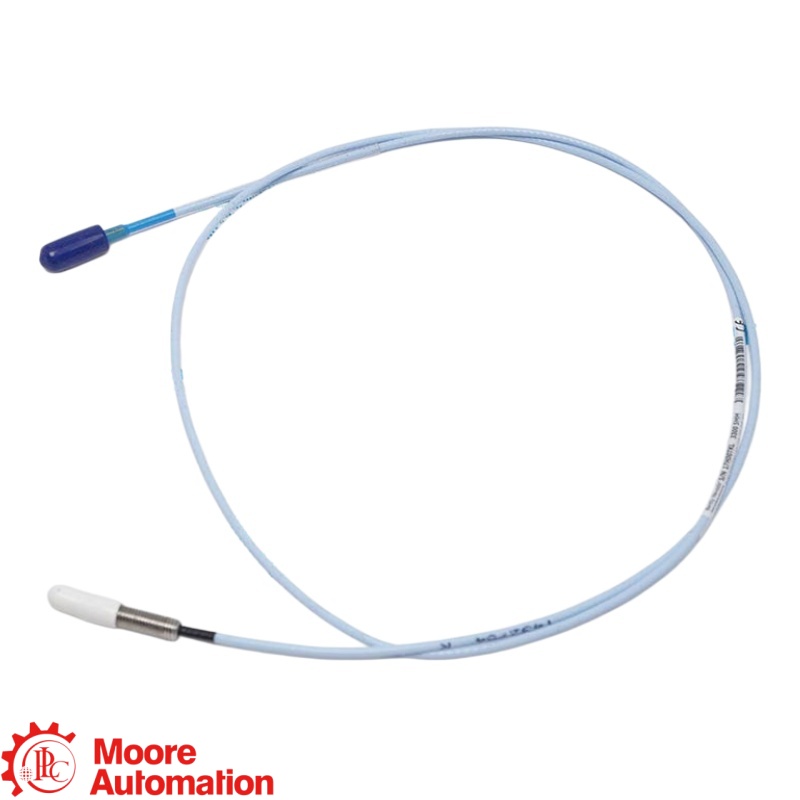

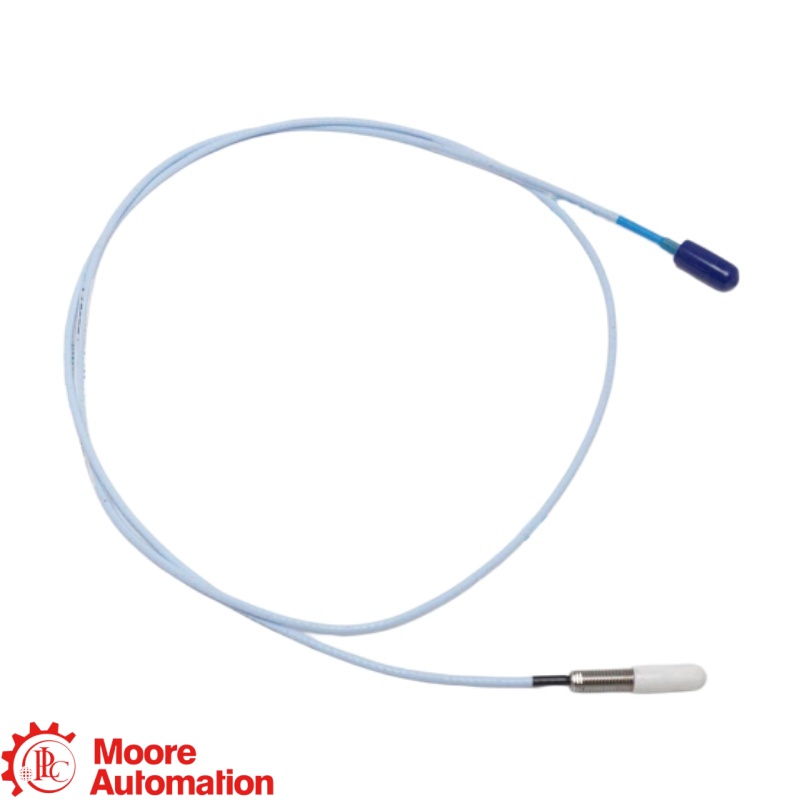

The 330171-00-08-20-02-00 is a Bently Nevada 3300 5 mm standard-mount proximity probe with a 2.0 m cable for non-contacting vibration and position measurement.
Click “+” to expand more specifications.
Official Baker Hughes Bently Nevada documentation for the 3300 5 mm Proximity Transducer System.
Bently Nevada datasheet 172036. Refer to the 330171 ordering information for compact case dimensions, total length, connector and cable type, 1/4-28 UNF mounting thread and safe-area option 00.
OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.
Bently Nevada is the brand; the 3300 5 mm Proximity Transducer System is the product family; and 330171-00-08-20-02-00 is a standard-mount 1/4-28 UNF probe without armor, with 0.0 in unthreaded length, 0.8 in case length, 2.0 m standard cable and safe-area option 00.
The compact 5.2 mm probe tip fits constrained mounting areas while the system retains a 2 mm (80 mil) linear range.
The 0.0 in unthreaded length and 0.8 in overall case length define this short 1/4-28 UNF standard-mount geometry.
The integral 2.0 m standard cable terminates in a ClickLoc connector for a compatible extension cable and Proximitor sensor.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete model, MOD number, quantity and delivery destination.
