SENSING TARGET
Conductive Shaft Surface
The probe tip senses shaft-to-tip distance without contact.

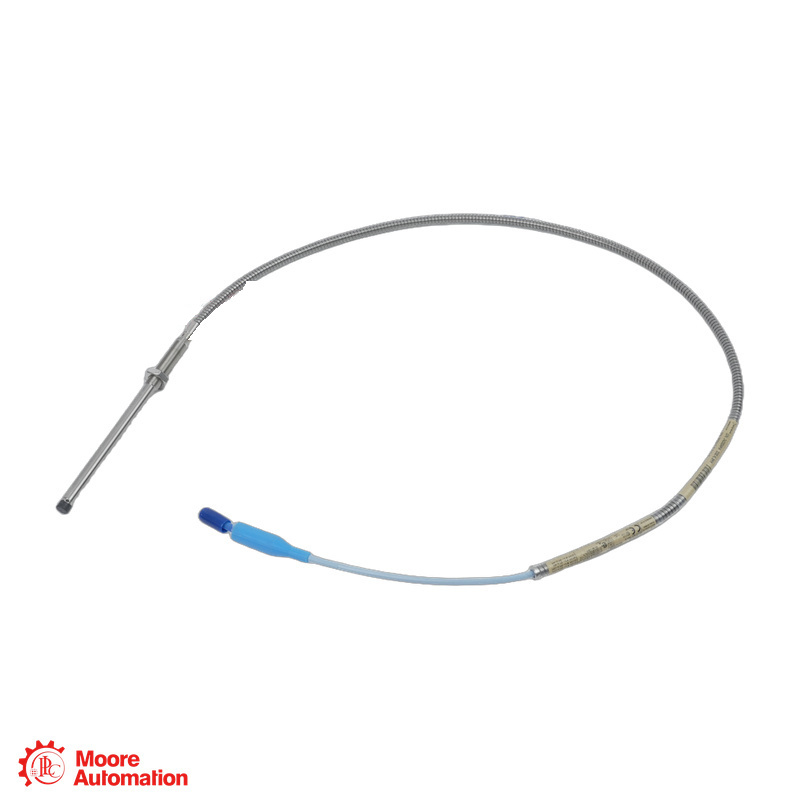

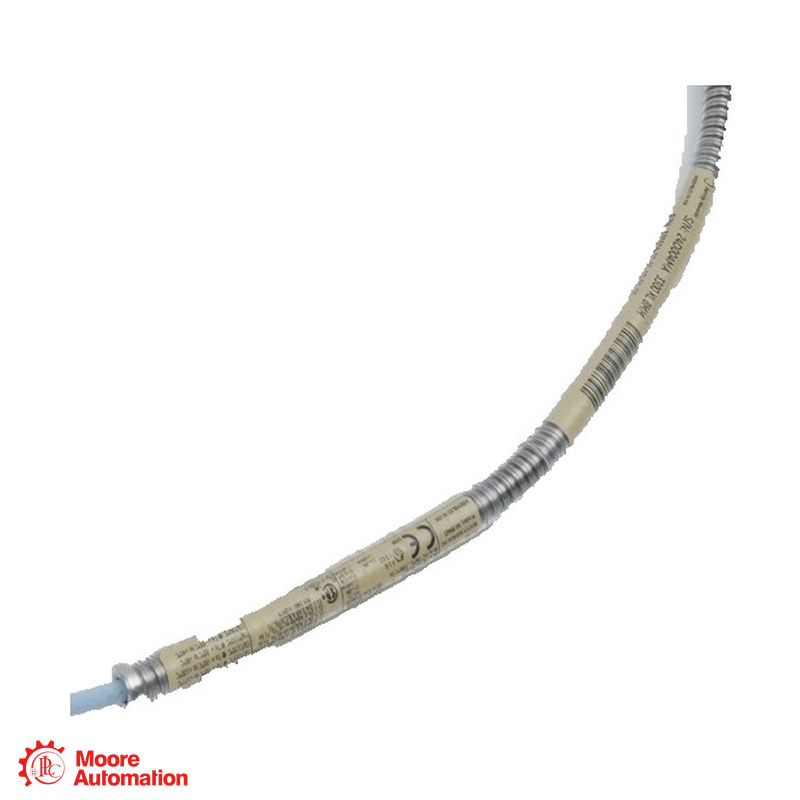

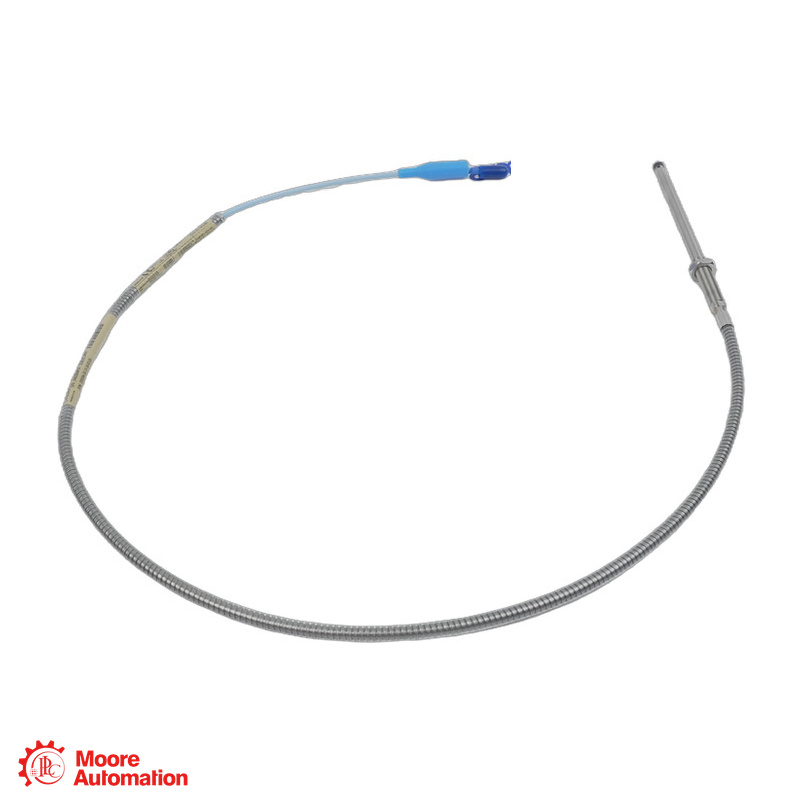

330104-11-16-10-02-00 — a Bently Nevada 3300 XL 8 mm proximity probe with M10 x 1 case thread, armor, 110 mm unthreaded length, 160 mm case length, 1.0 m total probe length and a miniature coaxial ClickLoc connector without protector.
Click “+” to expand more specifications.
Manufacturer ordering information for the armored M10 x 1 3300 XL 8 mm proximity probe and this complete configuration.
Bently Nevada Datasheet 141194 lists the 330104 armored M10 x 1 probe and defines the 11, 16, 10, 02 and 00 ordering options used in this complete configuration.
VIEW OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.
Bently Nevada is the manufacturer. 330104-11-16-10-02-00 is the armored 8 mm sensing probe. Its tip faces a conductive shaft surface; in a 1.0 m system the probe connects to a matched 1.0 m 3300 XL Proximitor Sensor without an extension cable.
The probe tip senses shaft-to-tip distance without contact.
A one-meter system uses the matching probe and Proximitor Sensor without an extension cable.
A compatible 3300 XL Proximitor Sensor converts the probe signal for monitoring.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete model, complete suffix, quantity and delivery destination.
