 /Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe

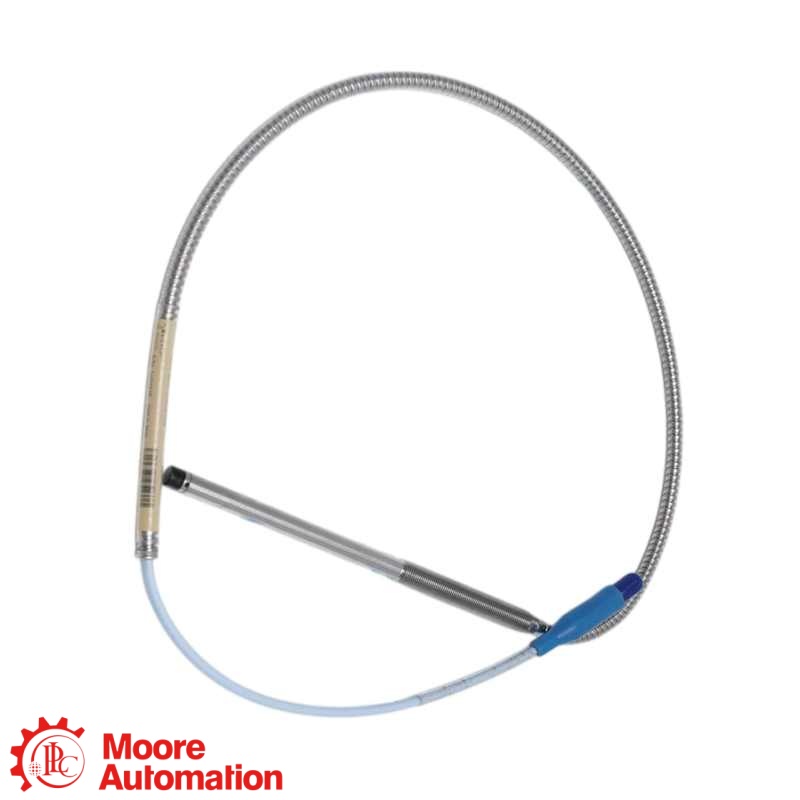

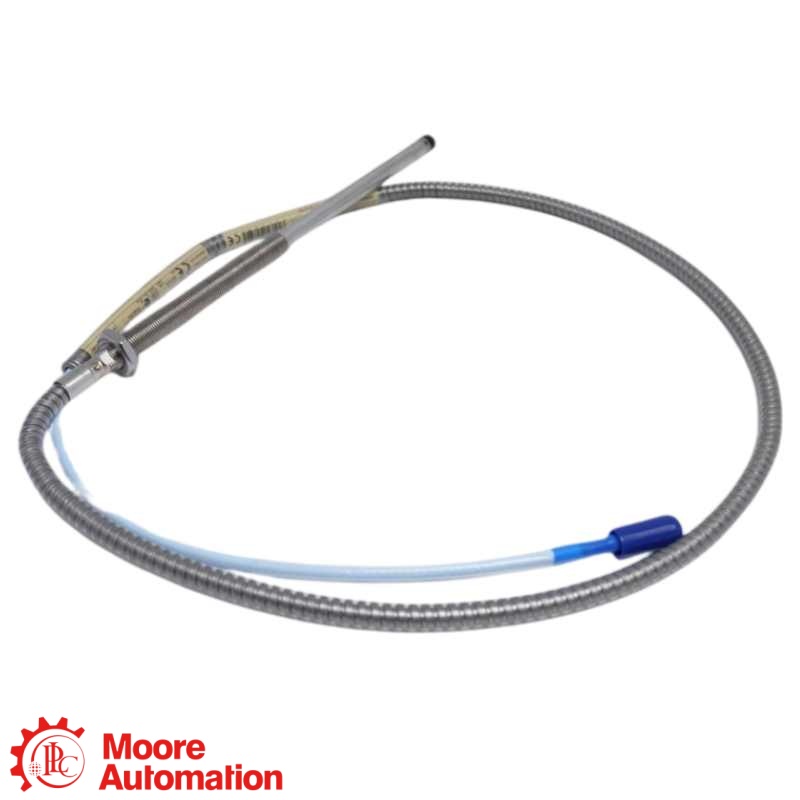

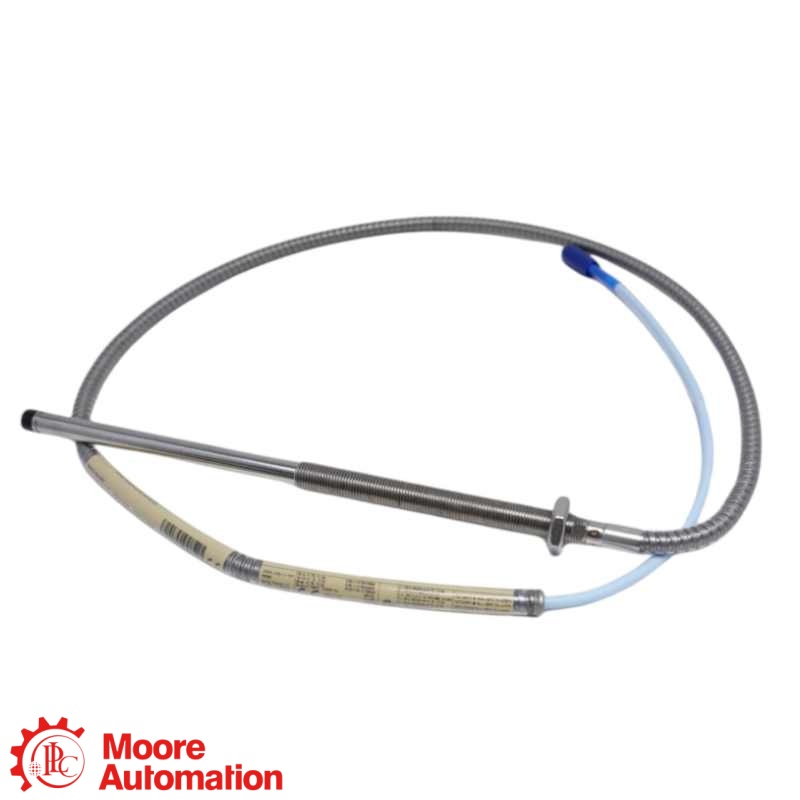

Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe
Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe
Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe

Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM ARMORED METRIC PROXIMITY PROBE

330104-10-15-10-01-05

The 330104-10-15-10-01-05 is an armored M10 × 1 probe with 100 mm unthreaded length, 150 mm case length, 1.0 m total length, standard cable, connector protector and multiple approvals. It must be used as part of a compatible 3300 XL 8 mm proximity transducer system.

THREADM10 × 1
CASE150 mm
LENGTH1.0 m
CABLEArmored
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 XL 8 MM ARMORED METRIC PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330104-10-15-10-01-05

330104

M10 × 1 · 150 mm case · 1.0 m lead · armor and approvals

PRODUCT ROLE

330104-10-15-10-01-05 is a armored M10 × 1 metric proximity probe for non-contact measurement of shaft vibration, position, speed or Keyphasor reference when connected to a compatible 3300 XL 8 mm extension cable and Proximitor sensor.

CONFIGURATION NOTE

For 330104-10-15-10-01-05, the ordered fields specify 100 mm unthreaded length, 150 mm case length, 1.0 m total length, standard cable with connector protector and multiple approvals. Confirm every field, target material, total electrical length, cable route, connector option and hazardous-area approval before replacement.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330104-10-15-10-01-05 reference is structured

330104
Probe familyM10 × 1 · with armor
10
Unthreaded length100 mm
15
Case length150 mm
10
Total length1.0 m
01
Cable / connectorStandard cable · ClickLoc with protector
05
Approval optionMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 141194 ↗
330104 · 3300 XL 8 MM ARMORED METRIC PROXIMITY PROBE

Engineering data at a glance

Verify the complete order code, mechanical dimensions, total length, connector/cable option and approval suffix before installation.

THREADM10 × 1
CASE150 mm
LENGTH1.0 m
CABLEArmored
Baker Hughes Datasheet 141194 documents the 3300 XL 8 mm ordering structure and system compatibility. Do not mix probe, extension cable or Proximitor components from an incompatible system.
General Information＋
ManufacturerBently Nevada
Model330104-10-15-10-01-05
Product type3300 XL 8 mm Armored Metric Proximity Probe
Transducer system3300 XL 8 mm
Measurement methodNon-contact eddy-current proximity measurement
ORDER NUMBER CHECK＋
Probe family330104 · M10 × 1 · with armor
Unthreaded length10 · 100 mm
Case length15 · 150 mm
Total length10 · 1.0 m
Cable / connector01 · Standard cable · ClickLoc with protector
Approval option05 · Multiple approvals
SYSTEM & ELECTRICAL COMPATIBILITY＋
Compatible system3300 XL 8 mm probe, extension cable and Proximitor sensor
Nominal system lengthVerify the ordered total electrical length
ApplicationsRadial vibration, axial position, speed and Keyphasor reference
Target requirementConductive target material and calibrated system geometry
INSTALLATION & REPLACEMENT CHECK＋
Mechanical fitM10 × 1 armored body, 100 mm unthreaded length and 150 mm case length
Cable and connectorStandard cable with ClickLoc connector and connector protector
ApprovalsOption 05 · CSA, ATEX and IECEx selections per official ordering table
CommissioningVerify gap voltage and machine protection settings after installation
FAQ

Questions Buyers Ask Most

What is 330104-10-15-10-01-05 used for?＋
330104-10-15-10-01-05 is armored M10 × 1 metric proximity probe used in a compatible 3300 XL 8 mm proximity transducer system to measure shaft vibration, position, speed or a Keyphasor reference without contacting the target.
How is the 330104-10-15-10-01-05 order number decoded?＋
The 330104-10-15-10-01-05 order number must be read in its original sequence. 330104 identifies the armored M10 × 1 family; 10 and 15 define 100 mm and 150 mm body lengths; 10 is 1.0 m; 01 is standard cable with protector; 05 is approvals. These fields must not be reordered or merged because each identifies a separate mechanical, cable or approval selection.
Which cable and connector option is specified for 330104-10-15-10-01-05?＋
330104-10-15-10-01-05 uses Standard cable with ClickLoc connector and connector protector. The mating extension cable and Proximitor sensor must be selected for the same 3300 XL 8 mm system length and connector arrangement.
What total length is specified for 330104-10-15-10-01-05?＋
330104-10-15-10-01-05 specifies a 1.0 m total probe length. This is the ordered probe lead length, and the complete probe-plus-extension-cable electrical length must match the installed Proximitor system.
Which approvals apply to 330104-10-15-10-01-05?＋
330104-10-15-10-01-05 uses Option 05 · CSA, ATEX and IECEx selections per official ordering table. Confirm that the exact approval marking on the delivered nameplate satisfies the installation area and local certification requirements.
Can 330104-10-15-10-01-05 directly replace another 3300 XL 8 mm probe?＋
330104-10-15-10-01-05 can be considered only when thread, case geometry, unthreaded length, total length, cable/connector option, approvals and the connected 3300 XL 8 mm extension cable and Proximitor sensor all match.
What information should be supplied when ordering 330104-10-15-10-01-05?＋
For a 330104-10-15-10-01-05 inquiry, provide the complete order code, quantity, nameplate photo, machine application, mounting dimensions, target material, existing extension-cable and Proximitor numbers, hazardous-area requirements and required delivery date.
CONTACT PRODUCT SPECIALIST

Confirm your 330104-10-15-10-01-05 configuration with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 330104-10-15-10-01-05

Official Baker Hughes manufacturer-reference information for the 330104-10-15-10-01-05 3300 XL 8 mm proximity probe.

3300 XL 8 mm Armored Metric Proximity Probe

Baker Hughes Datasheet 141194 identifies 330104-10-15-10-01-05 as an armored M10 × 1 probe with 100 mm unthreaded length, 150 mm case length, 1.0 m total length, standard cable, connector protector and multiple approvals and documents its ordered mechanical, lead-length, connector/cable and approval fields.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330104-10-15-10-01-05 Fits into a Proximity Measurement Chain

Bently Nevada is the brand; the 3300 XL 8 mm Proximity Transducer System is the measurement family; and 330104-10-15-10-01-05 is the complete proximity-probe configuration.

Bently Nevada · BRAND
3300 XL 8 mm SystemPRODUCT FAMILY · MEASUREMENT
SENSING COMPONENT

Proximity Probe

The configured probe detects relative shaft vibration or position without contacting the target.

INTERCONNECTION

Extension Cable

The matched cable carries the probe signal while preserving the calibrated electrical length.

SIGNAL CONDITIONING

Proximitor / Monitor

The compatible Proximitor conditions the signal for the machinery-protection monitor channel.

System relationship: the probe code, mounting gap, target material, cable, system length, Proximitor and monitor channel must all match.
APPLICATION AREAS

Application mind map for 330104-10-15-10-01-05

Machine VibrationMeasures dynamic shaft motion in a compatible monitoring system
Axial PositionMeasures shaft position within the calibrated linear range
APPLICATION CENTER330104-10-15-10-01-053300 XL 8 mm Armored Metric Proximity Probe
Speed / KeyphasorProvides a phase or speed reference when correctly installed
Replacement CheckMatch the complete six-field order code and installed transducer system
