Product Overview

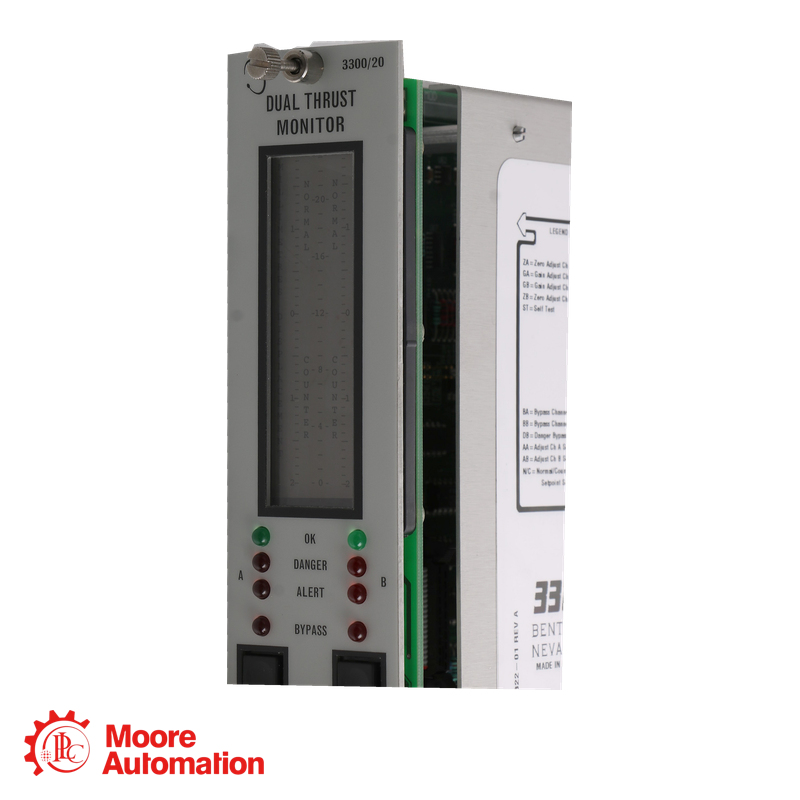

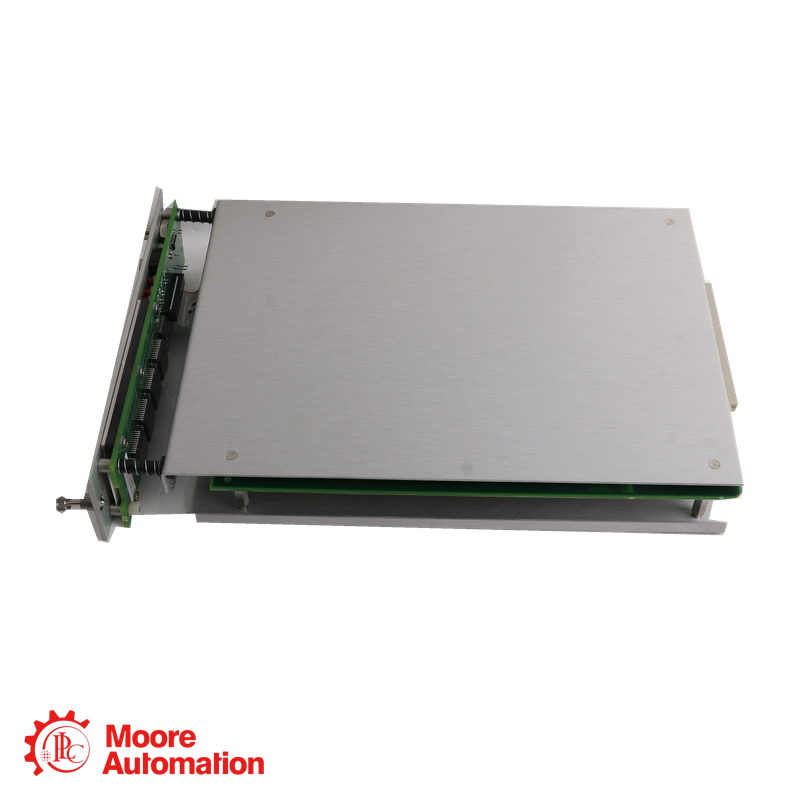

The Bently Nevada 3300/20-13-03-01-00-00 is a dual thrust position monitor for machinery equipped with a 3300 monitoring system. It continuously tracks two independent channels of shaft axial position, allowing movement to be evaluated against the machine’s available axial clearance. This configuration has a full-scale range of 2.0-0-2.0 mm. Its input is designed for a 7200 Series 14 mm or 3300 HTPS Proximitor system with a sensitivity of 100 mV/mil. The monitor also provides epoxy-sealed alarm relays, adjustable Alert and Danger setpoints, independent recorder outputs and field-programmable alarm voting.

Order Number Breakdown
3300/20 — Dual Thrust Position Monitor
13 — 2.0-0-2.0 mm full-scale range
03 — 7200 Series 14 mm or 3300 HTPS Proximitor systems; 100 mV/mil sensitivity
01 — Epoxy-sealed alarm relay option
00 — Agency approval not required
00 — No safety barrier

Technical Information

Parameter	Value
Manufacturer	Bently Nevada
Product Line	3300 System
Ordering Number	3300/20-13-03-01-00-00
Product Type	Dual Thrust Position Monitor
Measurement Channels	2 independent channels
Measured Variable	Shaft axial position relative to machine axial clearance
Full-Scale Range	2.0-0-2.0 mm
Accepted Signal Inputs	One or two proximity-probe signals
Compatible Proximitor Systems	7200 Series 14 mm or 3300 HTPS
Nominal Power Consumption	1.5 W
Alarm Setpoint Range	0–100% of full scale
Alarm Repeatability	Within 0.39% of full scale
Normal Thrust Direction	Toward or away from probe, programmable by channel
Recorder Output Options	+4–20 mA, +1–5 VDC or 0 to −10 VDC
Recorder Output Quantity	One independent output per channel
Voltage Output Impedance	100 Ω
Minimum Voltage Output Load	10 kΩ
4–20 mA Output Load	0–600 Ω
Buffered Transducer Outputs	One front coaxial output and one rear terminal output per channel
Transducer Supply Voltage	−24 VDC or −18 VDC, field-programmable
Display Resolution	Within ±1.6% of monitor full scale
Operating Temperature	0°C to +65°C
Storage Temperature	−40°C to +85°C
Relative Humidity	Up to 95%, non-condensing

Benefits&Features

• Measures two independent thrust position channels continuously
• Provides a 2.0-0-2.0 mm full-scale measurement range
• Accepts one or two proximity-probe signal inputs
• Supports 7200 Series 14 mm and 3300 HTPS Proximitor systems
• Provides adjustable bi-directional Alert and Danger alarms
• Supports field-programmable AND or OR Danger relay voting
• Includes an independent recorder output for each channel
• Displays channel position, probe gap and monitor status locally

Application Areas

-Axial shaft position monitoring in turbine supervisory instrumentation systems
- Thrust bearing monitoring on steam and gas turbines
-Machinery protection for compressors and other critical rotating equipment
-Monitoring shaft movement relative to thrust bearing clearance
-Dual-channel thrust measurement in Bently Nevada 3300 racks
