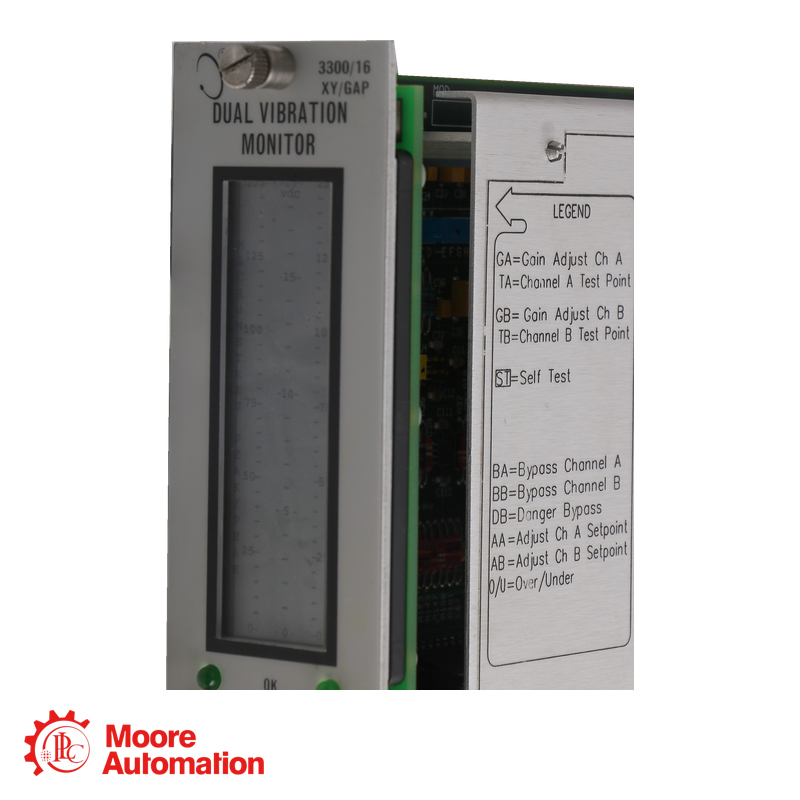

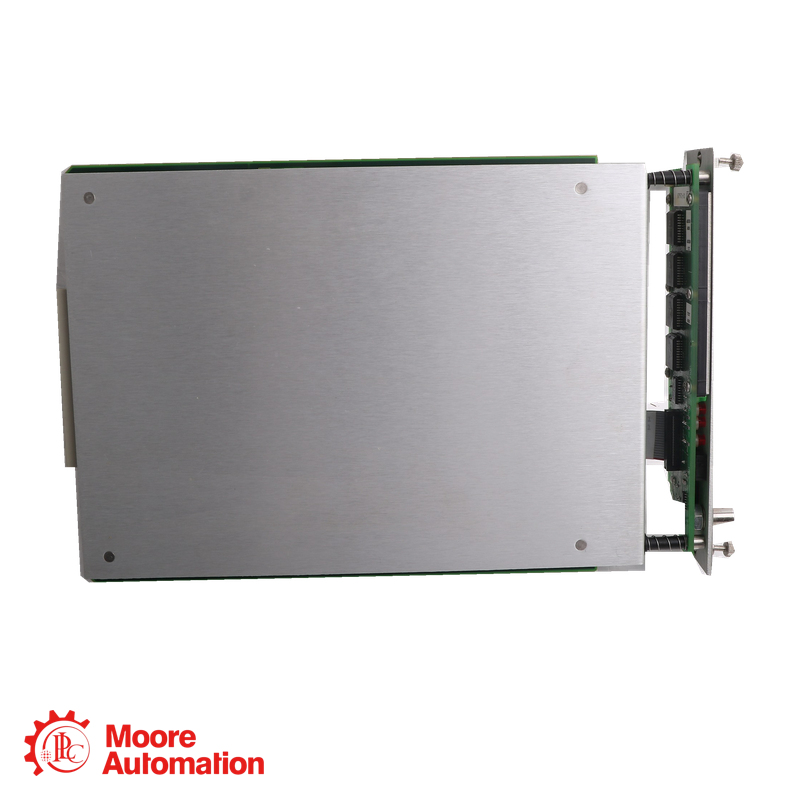

Bently Nevada 3300/16-02-01-00-00-00-01 3300 Series XY/Gap Dual Vibration Monitor
Bently Nevada 3300/16-02-01-00-00-00-01 3300 Series XY/Gap Dual Vibration Monitor
Bently Nevada 3300/16-02-01-00-00-00-01 3300 Series XY/Gap Dual Vibration Monitor

Bently Nevada 3300/16-02-01-00-00-00-01 3300 Series XY/Gap Dual Vibration Monitor

3300 SERIES · XY/GAP DUAL VIBRATION MONITOR

3300/16-02-01-00-00-00-01

3300/16-02-01-00-00-00-01 — A Bently Nevada 3300/16 XY/Gap Dual Vibration Monitor configured for 0 to 5 mil peak-to-peak full scale, a 200 mV/mil proximity-transducer input, no alarm relay, no agency approval, no safety barrier and 2X trip multiply.

CHANNELSTWO
INPUT200 MV/MIL PROXIMITY
FULL SCALE0–5 MIL PP
TRIP MULTIPLY2X
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 SERIES · XY/GAP DUAL VIBRATION MONITOR
XY/GAP DUAL VIBRATION MONITOR

3300/16-02-01-00-00-00-01

Two channels · 0–5 mil pp full scale · 200 mV/mil proximity input · no relay · no barrier · 2X trip multiply

3300/16 XY/Gap Dual Vibration Monitor

DUAL VIBRATION AND GAP ROLE
3300/16-02-01-00-00-00-01 — This Bently Nevada monitor continuously measures two independent radial-vibration channels and average shaft position (gap) from compatible proximity-transducer systems.
CONFIGURATION NOTE
3300/16 identifies the XY/Gap Dual Vibration Monitor; 02 specifies 0 to 5 mil peak-to-peak full scale; 01 specifies a 200 mV/mil proximity-transducer input; the three 00 codes specify no alarm relay, agency approval not required and no safety barrier; the final 01 specifies 2X trip multiply.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

3300
System series3300 Monitoring System
16
Monitor moduleXY/Gap Dual Vibration Monitor
02
Full-scale option0 to 5 mil pp
01
Transducer input200 mV/mil proximity system
00
Alarm relayNo alarm relay
00
Agency approvalNot required
00
Safety barrierNo safety barrier
01
Trip multiply2X
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300/16 XY/GAP DUAL VIBRATION MONITOR

Engineering data at a glance

Click “+” to expand more specifications.

CHANNELSTWO
FULL SCALE0–5 MIL PP
INPUT200 MV/MIL
TRIP MULTIPLY2X
Configuration decoded from manufacturer ordering data.
Configuration check Confirm the complete 3300/16-02-01-00-00-00-01 identity, installed 3300 Series revision, connected proximity-transducer systems and rack application before ordering or replacement.
General Information −
BrandBently Nevada
Part number3300/16-02-01-00-00-00-01
Product type3300/16 XY/Gap Dual Vibration Monitor
Product family3300 Series
Measurement channelsTwo independent channels
Full-scale range0–5 mil peak-to-peak
Order Configuration ＋
Transducer input01 · 200 mV/mil proximity system
Alarm relay / approval / barrier00 / 00 / 00 · none / not required / none
Trip multiply01 · 2X
Electrical Interface ＋
Input impedance10 kΩ
Input sensitivity200 mV/mil
Recorder outputsOne output per channel
Output choices+4–20 mA, 0 to -10 Vdc or +1 to +5 Vdc
Nominal power consumption2 W
Performance and Limits ＋
Published 3300/16 family specifications include selectable 4–4000 Hz or 1–600 Hz frequency response, operating temperature from 0°C to +65°C, and storage temperature from -40°C to +85°C. Confirm jumper settings and system revision before commissioning.
Source: Bently Nevada 3300/16 Specifications and Ordering Information, Part Number 141498-01, and Operation Manual 86830-01. The full suffix decodes the installed measurement range, transducer input, relay, approval, barrier and trip-multiply configuration.
FAQ

Questions Buyers Ask Most

What is 3300/16-02-01-00-00-00-01 used for?＋

3300/16-02-01-00-00-00-01 is a Bently Nevada two-channel monitor for radial vibration and average shaft-position (gap) measurement in a 3300 Series monitoring rack.

What does the 3300/16-02-01-00-00-00-01 order code specify?＋

For 3300/16-02-01-00-00-00-01, 02 means 0 to 5 mil pp full scale; 01 means a 200 mV/mil proximity input; 00-00-00 means no relay, approval not required and no barrier; the final 01 means 2X trip multiply.

Can 3300/16-02-01-00-00-00-01 be substituted with a similar part number?＋

Do not substitute 3300/16-02-01-00-00-00-01 by appearance or family name alone. Compare the complete suffix, system revision, transducer sensitivity, full-scale range, relay, approval, barrier and trip-multiply configuration.

Which signals does 3300/16-02-01-00-00-00-01 monitor?＋

3300/16-02-01-00-00-00-01 continuously monitors two independent radial-vibration channels and average shaft position (gap) from compatible proximity-transducer systems.

What should I provide for a 3300/16-02-01-00-00-00-01 quotation?＋

Send the complete 3300/16-02-01-00-00-00-01 nameplate with rack revision, quantity, connected probe and Proximitor details, jumper settings and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 3300/16-02-01-00-00-00-01 nameplate, rack revision and connected proximity-system details for configuration, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and References for
3300/16-02-01-00-00-00-01

Bently Nevada publications 141498-01 and 86830-01 cover the 3300/16 XY/Gap Dual Vibration Monitor family. Request the applicable revision for the installed rack and complete ordering identity.

Applicable manufacturer publications

Specifications and Ordering Information 141498-01 defines the 3300/16 family and order-code options; Operation Manual 86830-01 covers installation, operation and maintenance. Confirm the document revision against the installed system.

REQUEST THE APPLICABLE MANUAL

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements use Bently Nevada 3300/16 Specifications and Ordering Information, Part Number 141498-01, and Operation Manual, Part Number 86830-01. Confirm the exact document revision before use.

3300/16 XY/GAP DUAL VIBRATION MONITOR CONNECTION

How 3300/16-02-01-00-00-00-01 Fits into a 3300 Monitoring System

Bently Nevada is the manufacturer. 3300/16-02-01-00-00-00-01 is a two-channel monitor configured for 0 to 5 mil peak-to-peak full scale and 200 mV/mil proximity-transducer inputs, with no relay, no barrier and 2X trip multiply.

Bently Nevada · BRAND
Bently Nevada 3300 SeriesPRODUCT FAMILY · XY/GAP DUAL VIBRATION MONITOR
MEASUREMENT INPUT

Two Proximity Channels

One or two compatible probe and Proximitor systems provide radial-vibration and gap signals to the monitor.

FULL-SCALE RANGE

0 to 5 mil Peak-to-Peak

The 02 option specifies the configured full-scale vibration range.

TRIP MULTIPLY

2X

The final 01 option specifies 2X trip multiply for this complete ordering identity.

System relationship: match the 200 mV/mil transducer sensitivity, complete suffix, rack revision and jumper configuration before installation or replacement.
APPLICATION AREAS

Functions and integration points for 3300/16-02-01-00-00-00-01

Radial Vibration MonitoringContinuously measures two independent radial-vibration channels from compatible proximity-transducer systems.
Average Shaft PositionProvides gap indication for average shaft position in addition to channel vibration measurement.
APPLICATION CENTER 3300/16-02-01-00-00-00-01 3300/16 XY/Gap Dual Vibration Monitor
Selectable Frequency ResponsePublished family settings include 4–4000 Hz or 1–600 Hz response; verify jumper configuration before use.
Recorder IntegrationProvides one recorder output per channel, with output format determined by the installed configuration.
