Bently Nevada 3300/05-27-01-01 8-Position 19-Inch EIA Rack

Product Overview

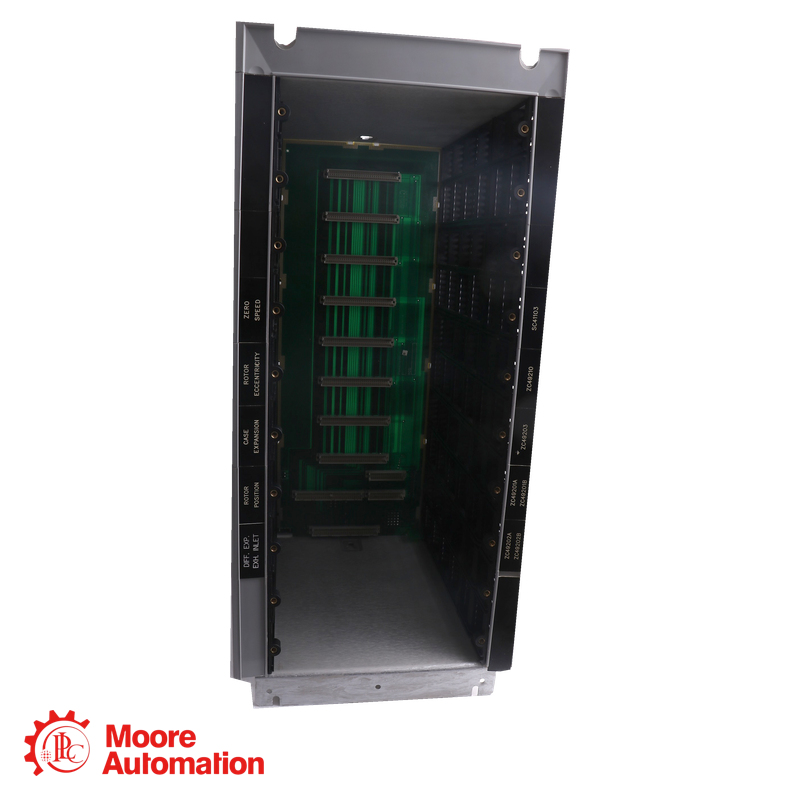

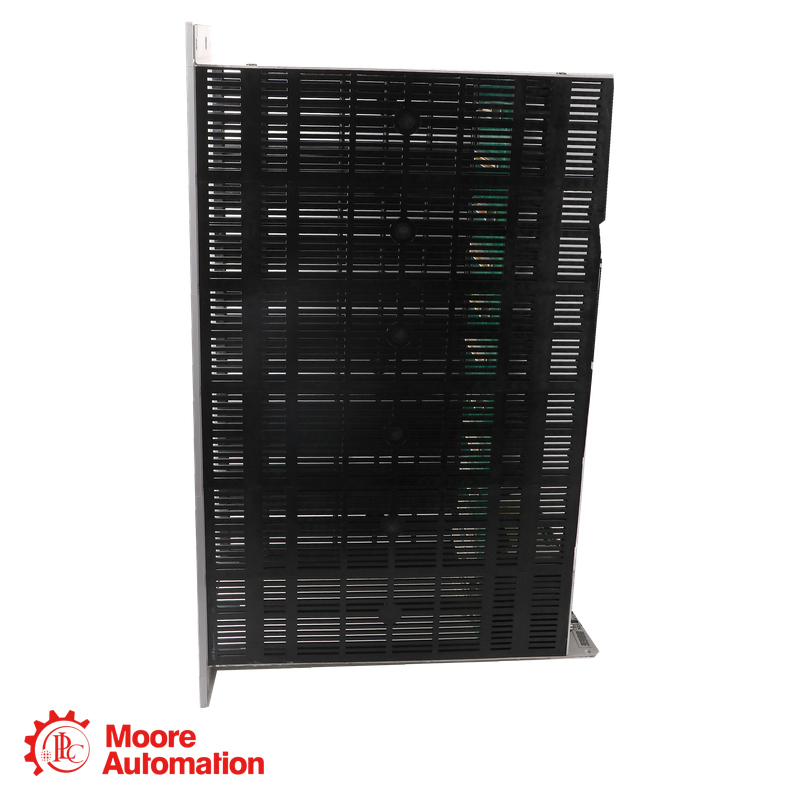

The Bently Nevada 3300/05-27-01-01 is an eight-position, 19-inch EIA rack for the 3300 machinery monitoring system. It provides the mounting structure and backplane connections for a 3300 power supply, system monitor and individual machinery-monitoring modules. Position 1 is reserved for the power supply, and position 2 is assigned to the system monitor. The remaining six positions accommodate compatible 3300 monitor modules. A corresponding signal input or relay module can be installed behind each monitor position. This configuration uses the SDI/DDI-compatible rack design. The mounting option provides the front-panel holes required for 19-inch EIA installation or placement in a compatible weatherproof housing.

Order Number Breakdown
3300/05--Bently Nevada 3300 System Rack
27--Eight-position rack with 19-inch EIA mounting
01--CSA/NRTL/C agency approval option
01--Mounting option for a weatherproof housing or 19-inch EIA rack

Technical Information

Benefits&Features

• Eight-position 3300 monitoring-system rack
• Fits standard 19-inch EIA mounting structures
• Six available positions for individual monitor modules
• Dedicated locations for the power supply and system monitor
• Rear positions for signal input and relay modules
• SDI/DDI-compatible backplane configuration
• Modular structure supports system expansion
• Provides straightforward front and rear module access
• Conductive antistatic material dissipates electrostatic discharge
• Front bezel supports individual machine-point identification
• Eliminates point-to-point internal rack wiring
• Suitable for control panels and weatherproof enclosure installations

Application Areas

-Turbine machinery-monitoring systems
-Compressor vibration-monitoring panels
-Generator and turbine-generator installations
-Pump and large-motor protection systems
-Refinery and petrochemical rotating equipment
-Power-generation monitoring cabinets
-19-inch industrial equipment racks
-Weatherproof machinery-monitoring enclosures
-Expansion or maintenance of an installed 3300 system

Main brands

Frequently Asked Questions

1. How many monitor modules can this rack accommodate?
The rack has eight total positions. After positions 1 and 2 are allocated to the power supply and system monitor, six positions remain available for individual monitoring modules.

2. Is the 3300/05-27-01-01 suitable for a 19-inch rack?
Yes. Option “27” identifies an eight-position rack designed for 19-inch EIA mounting. The final “01” provides the corresponding mounting arrangement.

3. What is installed behind each monitor position?
Each monitor position has a rear location for the applicable signal input or relay module. The exact rear module depends on the monitor installed in that position.

4. Which 3300 system configurations support this rack?
The “27” rack option belongs to the SDI/DDI-compatible rack group. The system monitor, power supply, backplane and monitor firmware should be checked as a complete configuration before installation.
