Bently Nevada 31000-29-05-15-033-03-02 Proximity Probe Housing Assembly

✦Let's Discuss Your Requirement✦

Sales Manager: Frida

Phone/Whatsapp/Wechat:+86 15359408275  Email:sales5@mooreplc.com

✦Product Overview in Brief✦

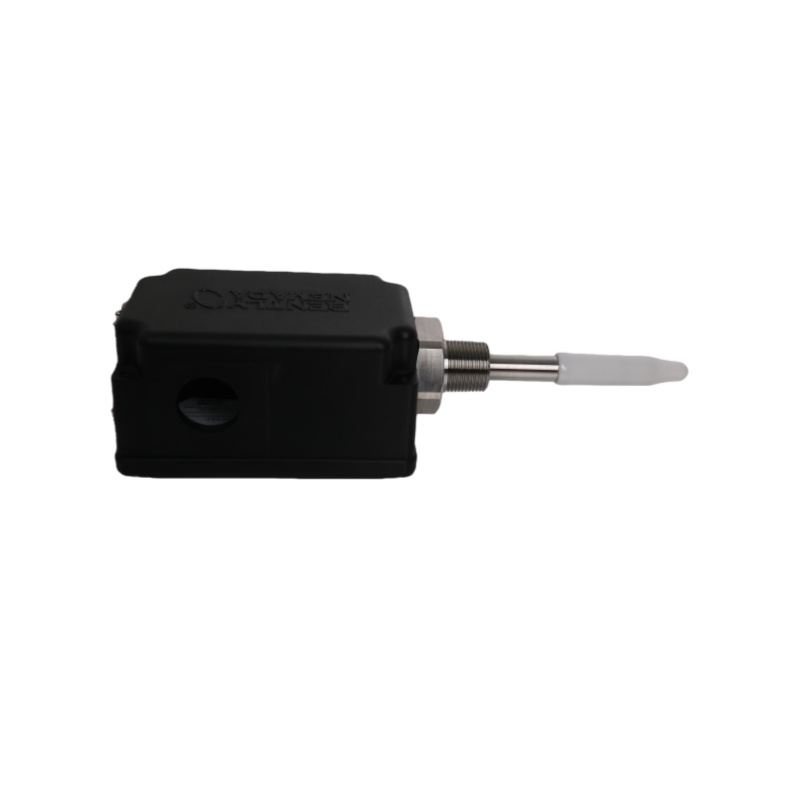

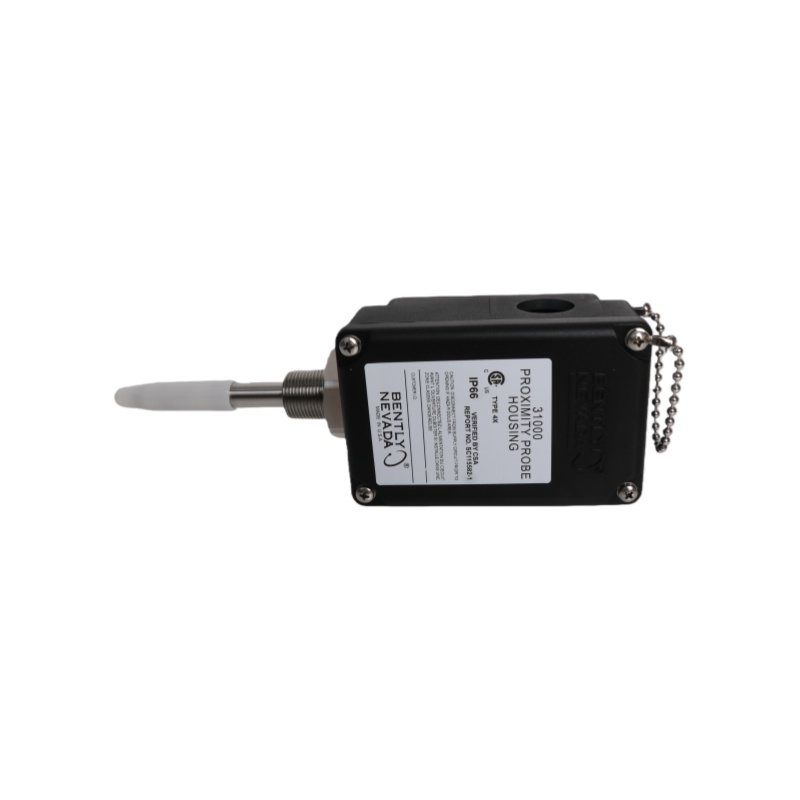

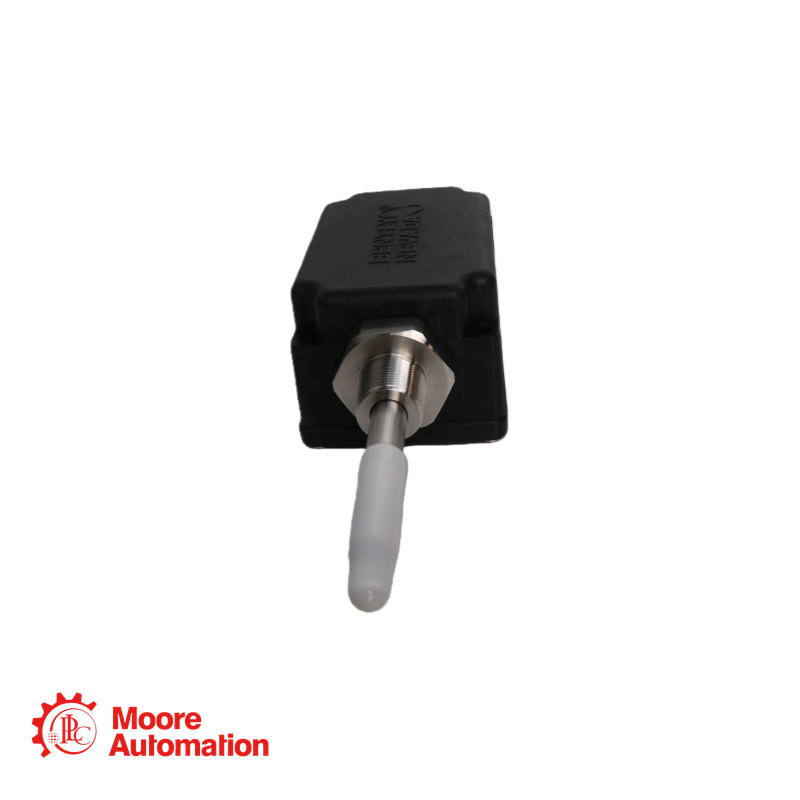

31000-29-05-15-033-03-02 is a 31000 Series Proximity Probe Housing Assembly, configured with a 3300 XL 8 mm probe with connector protector, 0.5 meter probe cable length, 1.5 inch standoff adapter, 3.3 inch probe penetration length, conduit fittings including one 3/4-14 NPT fitting, a reducer, a cable seal grip, and two plugs, and with 3/4-14 NPT mounting thread.

✦Key Data✦

31000-AXX-BXX-CXX-DXXX-EXX-FXX

A = 29：Probe Option = 3300 XL 8mm probe, with connector protector
B = 05：Probe Cable Length Option = 0.5 meter (20 in)
C = 15：Standoff Adapter Option = 1.5 inches (38 mm)
D = 033：Probe Penetration Option = 3.3 inches (84 mm)
E = 03：Fittings Option = Two plugs, one 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer, and a cable seal grip with grommets
F = 02：Mounting Thread Option = 3/4-14 NPT

Recommended Torque (retaining nut): 29.4 N·m (260 in‑lb).
Operating Temperature: –51 °C to +105 °C (–60 °F to +221 °F).

✦FAQs About 31000-29-05-15-033-03-02✦

Q:What type of probe is supplied with this 31000-29-05-15-033-03-02 housing?
A: A 3300 XL 8 mm proximity probe with a connector protector (option A=29). The probe cable length is 0.5 meters (option B=05).
Q:What conduit fittings are included?
A: Option E=03 provides:
One 3/4‑14 NPT fitting
One 3/4‑14 NPT to 1/2‑14 NPT stainless‑steel reducer
A cable‑seal grip with grommets (for cable diameters 1/8–3/16 in, 1/4–5/16 in, and 5/16–3/8 in)
Two plugs for unused holes
Q:Can I use this 31000-29-05-15-033-03-02 housing with a 3300 XL 11 mm probe?
A: No. This specific configuration (A=29) is for a 3300 XL 8 mm probe only. For an 11 mm probe, you would need option A=33 (standard) or A=34 (with multiple approvals).
