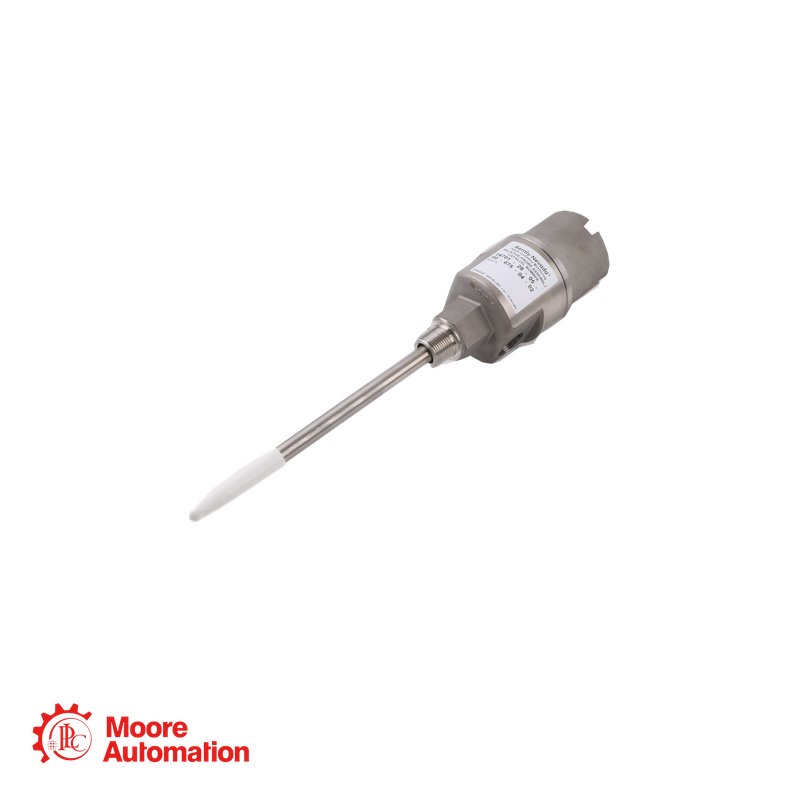

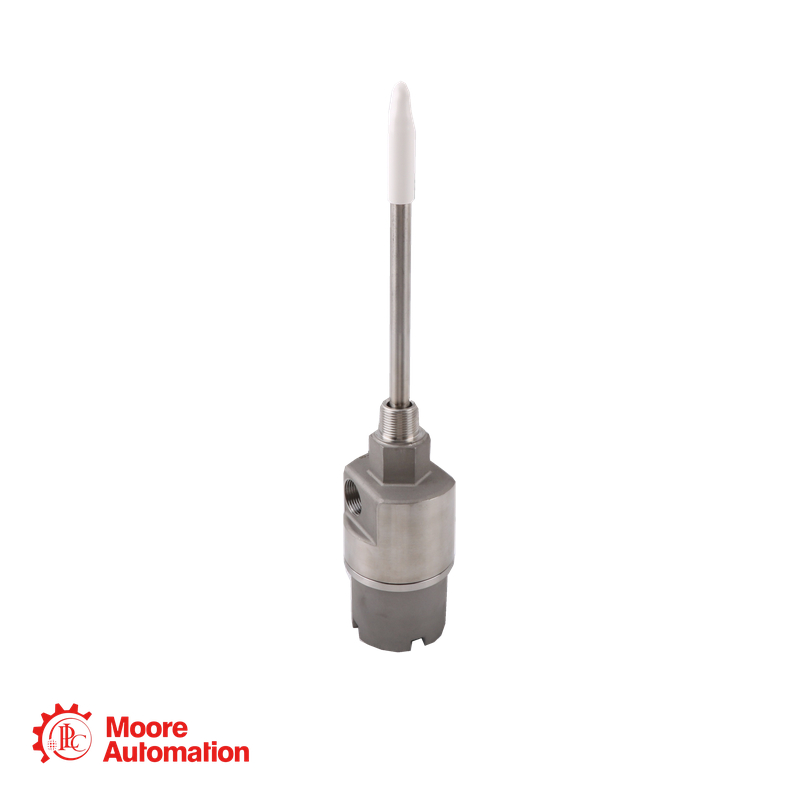

 /Bently Nevada 24701-28-05-XX-065-03-XX MOD: 323933-00-02 Proximity Probe Housing Assembly
Bently Nevada 24701-28-05-XX-065-03-XX MOD: 323933-00-02 Proximity Probe Housing Assembly
Bently Nevada 24701-28-05-XX-065-03-XX MOD: 323933-00-02 Proximity Probe Housing Assembly
Bently Nevada 24701-28-05-XX-065-03-XX MOD: 323933-00-02 Proximity Probe Housing Assembly

Bently Nevada 24701-28-05-XX-065-03-XX MOD: 323933-00-02 Proximity Probe Housing Assembly

24701 · PROXIMITY PROBE HOUSING

24701-28-05-XX-065-03-XX MOD: 323933-00-02

24701-28-05-XX-065-03-XX MOD: 323933-00-02 — A Bently Nevada 24701 proximity probe housing assembly configured with a 3300 XL 8 mm probe, 0.5 metre probe cable, 6.5 inch penetration and an E03 fitting set with plug, reducer and cable seal.

PROBE TYPE3300 XL 8 MM
PROBE CABLE0.5 M / 20 IN
PENETRATION6.5 IN / 165 MM
FITTINGE03 FITTING SET
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 24701 PROXIMITY PROBE HOUSING
24701 PROXIMITY PROBE HOUSING

24701-28-05-XX-065-03-XX MOD: 323933-00-02

0.5 m probe cable · 6.5 in penetration · E03 fitting set · Modified assembly

24701 Proximity Probe Housing Assembly

PROXIMITY PROBE HOUSING
24701-28-05-XX-065-03-XX MOD: 323933-00-02 — This Bently Nevada 24701 assembly houses and positions a 3300 XL 8 mm proximity probe for machinery monitoring applications.
CONFIGURATION NOTE
24701 identifies the proximity probe housing family; 28 specifies a 3300 XL 8 mm probe with approval option, 05 specifies a 0.5 metre probe cable, 065 specifies 6.5 inch penetration, and 03 specifies one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer and one cable seal grip. The two XX positions and MOD: 323933-00-02 must be matched to the product record.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

24701
Base familyProximity probe housing
28
Probe option3300 XL 8 mm · approval option
05
Probe cable0.5 metres (20 in)
065
Probe penetration6.5 in (165 mm)
03
FittingsPlug, reducer and cable seal grip
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
24701 PROXIMITY PROBE HOUSING

Engineering data at a glance

Click “+” to expand more specifications.

PROBE TYPE3300 XL 8 MM
PROBE CABLE0.5 M / 20 IN
PENETRATION6.5 IN / 165 MM
FITTINGE03 FITTING SET
Configuration from the manufacturer 24701 ordering guide.
Configuration check Confirm the complete 24701 ordering code, both XX selections, modification identifier, dimensions and probe-system requirements.
General Information −
BrandBently Nevada
Part number24701-28-05-XX-065-03-XX MOD: 323933-00-02
Product typeProximity Probe Housing Assembly
Product family24701 Proximity Probe Housing
Probe type3300 XL 8 mm · approval option
Modification323933-00-02
Ordering Configuration ＋
Probe option28 · 3300 XL 8 mm with approval
Probe cable05 · 0.5 metres (20 in)
Probe penetration065 · 6.5 in (165 mm)
Unspecified Fields & Dimensions ＋
Standoff codeXX · Not specified in supplied reference
Mounting threadXX · Not specified in supplied reference
Housing dimensionsA 78.2 mm · B 151.9 mm · E 27.9 mm
Cable-length limitMaximum C + D: 343 mm (13.5 in)
Plug option03 · Plug, reducer and cable seal grip
Exact Configuration Match ＋
Use the full ordering string and modification identifier from the nameplate or engineering record. Similar 24701 housings are not evidence of interchangeability.
Source: Bently Nevada 21000, 24701, and 164818 Proximity Probe Housing Assemblies Datasheet, 141600 Rev. AC. The public family datasheet defines the 24701 ordering positions but does not decode MOD 323933-00-02.
FAQ

Questions Buyers Ask Most

What is 24701-28-05-XX-065-03-XX MOD: 323933-00-02 used for?＋

24701-28-05-XX-065-03-XX MOD: 323933-00-02 is a Bently Nevada 24701 proximity probe housing assembly configured with a 3300 XL 8 mm probe for machinery monitoring applications.

Which probe and cable options are used on 24701-28-05-XX-065-03-XX MOD: 323933-00-02 ?＋

For 24701-28-05-XX-065-03-XX MOD: 323933-00-02, 28 specifies a 3300 XL 8 mm probe with approval option, while 05 specifies a 0.5 metre (20 in) probe cable.

What do the 065 and 03 codes on 24701-28-05-XX-065-03-XX MOD: 323933-00-02 specify?＋

24701-28-05-XX-065-03-XX MOD: 323933-00-02 uses 6.5 in (165 mm) probe penetration and the E03 plug, reducer and cable-seal configuration.

What should be verified for the XX fields and MOD identifier on 24701-28-05-XX-065-03-XX MOD: 323933-00-02 ?＋

24701-28-05-XX-065-03-XX MOD: 323933-00-02 contains two XX placeholders for the standoff-adapter and mounting-thread positions. The public datasheet does not decode MOD 323933-00-02; use the exact nameplate or engineering record.

What should I provide for a 24701-28-05-XX-065-03-XX MOD: 323933-00-02 quotation?＋

Send the complete 24701-28-05-XX-065-03-XX MOD: 323933-00-02 label, quantity, visible XX selections, MOD 323933-00-02, housing dimensions and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the full ordering string, modification identifier, nameplate photo and required dimensions for an exact configuration check.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
24701-28-05-XX-065-03-XX MOD: 323933-00-02

Official manufacturer documentation for the Bently Nevada 24701 proximity probe housing assembly family.

Official manufacturer datasheet

Bently Nevada Datasheet 141600 defines the 24701 housing family and its ordering options. This supplied code specifies a 3300 XL 8 mm probe with approval option, 0.5 metre probe cable, 6.5 inch probe penetration and an E03 fitting set with plug, reducer and cable seal.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use Bently Nevada 21000, 24701, and 164818 Proximity Probe Housing Assemblies Datasheet, 141600 Rev. AC.

24701 PROBE HOUSING ASSEMBLY

How 24701-28-05-XX-065-03-XX MOD: 323933-00-02 Fits into the 24701 Probe Housing Family

Bently Nevada is the manufacturer. 24701-28-05-XX-065-03-XX MOD: 323933-00-02 is a Bently Nevada 24701 proximity probe housing assembly configured with a 3300 XL 8 mm probe, 0.5 metre probe cable, 6.5 inch penetration and an E03 fitting set with plug, reducer and cable seal.

Bently Nevada · BRAND
Bently Nevada 24701 Housing FamilyPRODUCT FAMILY · PROXIMITY SYSTEM
PROBE OPTION

3300 XL 8 mm

The 28 option specifies a 3300 XL 8 mm probe with approval option.

PROBE CABLE

0.5 Metres

The 05 option specifies a 0.5 metre (20 in) probe cable.

HOUSING FITTINGS

065 / 03

065 specifies 6.5 in (165 mm) probe penetration; 03 specifies one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer and one cable seal grip.

System relationship: use the exact full ordering string, both XX positions and MOD 323933-00-02 when identifying this housing assembly.
APPLICATION AREAS

Functions and integration points for 24701-28-05-XX-065-03-XX MOD: 323933-00-02

Probe Housing RoleProvides a housing assembly for a 3300 XL 8 mm proximity probe in machinery monitoring service.
Radial VibrationSupports probe placement for radial shaft-vibration measurement in a matched proximity system.
APPLICATION CENTER 24701-28-05-XX-065-03-XX MOD: 323933-00-02 24701 Proximity Probe Housing Assembly
Axial PositionSupports probe placement for axial or thrust-position measurement.
Fluid-Film Bearing MachinesSupports proximity-probe use on fluid-film bearing machinery within a matched 3300 XL 8 mm system.
