 /Bently Nevada 24701-00-00-00-290-03-02 Proximity Probe Housing Assembly

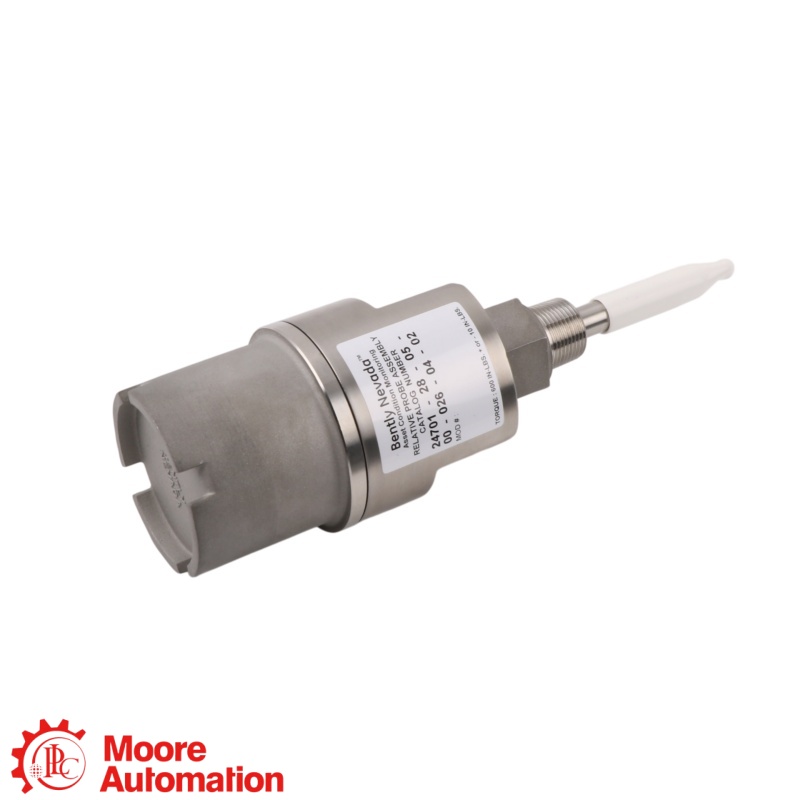

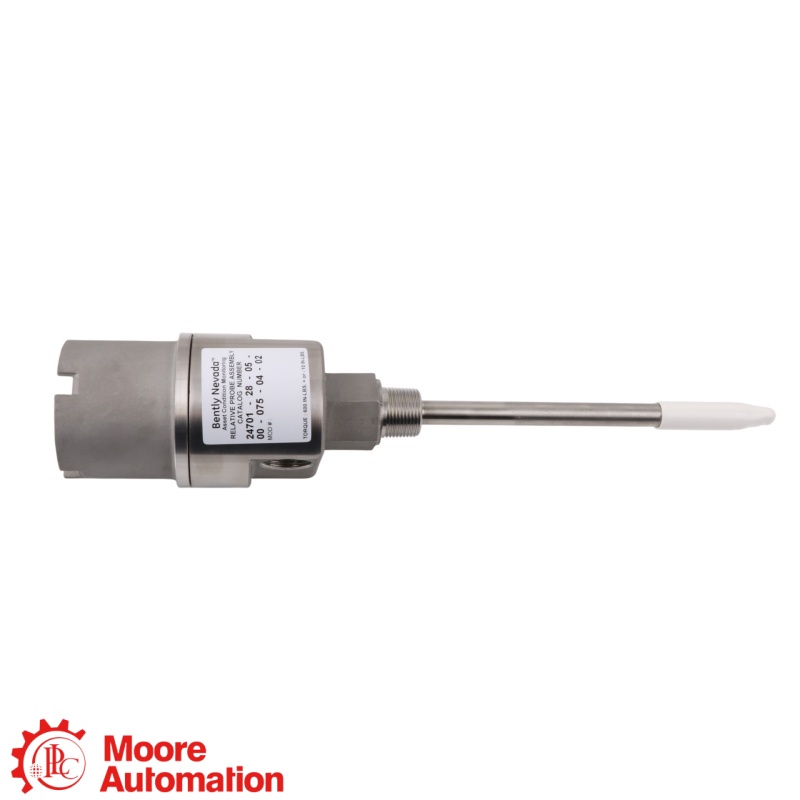

Bently Nevada 24701-00-00-00-290-03-02 Proximity Probe Housing Assembly
Bently Nevada 24701-00-00-00-290-03-02 Proximity Probe Housing Assembly
Bently Nevada 24701-00-00-00-290-03-02 Proximity Probe Housing Assembly

Bently Nevada 24701-00-00-00-290-03-02 Proximity Probe Housing Assembly

24701 · PROBE HOUSING

24701-00-00-00-290-03-02

24701-00-00-00-290-03-02 — A Bently Nevada 24701 stainless-steel proximity probe housing assembly with no probe or cable supplied, no standoff adapter, 29.0 in penetration, option 03 fittings and 3/4-14 NPT mounting.

HOUSING BODY303 SS
SLEEVE304 SS
PENETRATION29.0 IN
MOUNTING3/4-14 NPT
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 24701 PROXIMITY PROBE HOUSING
24701 PROXIMITY PROBE HOUSING

24701-00-00-00-290-03-02

303 SS body · 304 SS sleeve · 29.0 in penetration · 3/4-14 NPT

Proximity Probe Housing Assembly

PROBE MOUNTING ROLE
24701-00-00-00-290-03-02 — This 24701 stainless-steel housing assembly provides an externally mounted enclosure for a proximity probe; this ordering code does not include the probe or probe cable.
CONFIGURATION NOTE
24701 identifies the stainless-steel proximity-probe housing; 00 means the probe is not required, 00 means the probe cable is not required, 00 specifies no standoff adapter, 290 sets 29.0 in penetration, 03 defines the fitting set, and 02 specifies 3/4-14 NPT mounting.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

24701
Base modelStainless-steel probe housing
00
Probe optionNot required
00
Probe cableNot required
00
Standoff adapterNone
290
Probe penetration29.0 in
03
Fittings optionPlug · reducer · cable-seal grip
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Official Datasheet ↗
24701 PROXIMITY PROBE HOUSING

Engineering data at a glance

Click “+” to expand more specifications.

HOUSING BODY303 SS
SLEEVE304 SS
PENETRATION29.0 IN
MOUNTING3/4-14 NPT
Configuration from the official 21000 and 24701 Proximity Probe Housing Assemblies datasheet.
Configuration check Confirm the full housing code, probe option, cable length, standoff, penetration, fittings and mounting thread against the machine installation before ordering.
General Information −
BrandBently Nevada
Part number24701-00-00-00-290-03-02
Product typeProximity Probe Housing Assembly
Product family21000/24701 Proximity Probe Housing Assembly
Housing construction303 stainless-steel body · 304 stainless-steel sleeve
Installed probeNot required · probe option 00
Housing and Dimensions ＋
Probe cableNot required · option 00
Standoff adapterNone · option 00
Probe penetration29.0 in · option 290
Fittings and Mounting ＋
Fittings option03
Fitting setOne 3/4-14 NPT plug · One 3/4-14 to 1/2-14 NPT reducer · One cable-seal grip with grommets
Mounting thread3/4-14 NPT · option 02
Probe optionNot required · option 00
Housing materials303 SS body · 304 SS sleeve
Application and Environment ＋
The 24701 stainless-steel housing provides mechanical protection and external access for proximity-probe installation; the probe and probe cable are not included in this configuration.
Source: Bently Nevada 21000 and 24701 Proximity Probe Housing Assemblies Datasheet, Part Number 141600, Rev. R. Dimensions, installation limits and environmental values require the complete configured housing and the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 24701-00-00-00-290-03-02 used for?＋

24701-00-00-00-290-03-02 is a stainless-steel proximity-probe housing assembly configured for 29.0 in penetration, option 03 fittings and 3/4-14 NPT mounting; the probe is not included.

What does the 24701-00-00-00-290-03-02 code specify?＋

For 24701-00-00-00-290-03-02, the fields identify the 24701 housing, no probe, no probe cable, no standoff, 29.0 in penetration, option 03 fittings and 3/4-14 NPT mounting.

Can 24701-00-00-00-290-03-02 be substituted with a similar part number?＋

Do not substitute 24701-00-00-00-290-03-02 by appearance alone. Compare the complete code, housing materials, probe and cable supply status, penetration, fitting set, mounting thread and machine installation dimensions.

What installation role does 24701-00-00-00-290-03-02 provide?＋

24701-00-00-00-290-03-02 provides a corrosion-resistant externally mounted housing and access for installing or servicing a compatible proximity probe at the specified penetration.

What should I provide for a 24701-00-00-00-290-03-02 quotation?＋

Send the complete 24701-00-00-00-290-03-02 code, quantity, required probe system, insertion depth, mounting dimensions, conduit arrangement and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete housing code, probe-system requirement, insertion depth and machine mounting dimensions for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
24701-00-00-00-290-03-02

Official manufacturer documentation for the Bently Nevada 24701 proximity probe housing assembly, shown here for exact model verification.

Official manufacturer datasheet

Bently Nevada Datasheet 141600 defines the 24701-AA-BB-CC-DDD-EE-FF ordering structure and identifies every option used in this exact housing configuration.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the Bently Nevada 21000 and 24701 Proximity Probe Housing Assemblies Datasheet, Part Number 141600, Rev. R.

24701 PROBE HOUSING RELATIONSHIP

How 24701-00-00-00-290-03-02 Fits into the Proximity Measurement Chain

Bently Nevada is the manufacturer. 24701-00-00-00-290-03-02 is a 24701 stainless-steel housing assembly supplied without a probe or probe cable, with no standoff, 29.0 in penetration and 3/4-14 NPT mounting.

Bently Nevada · BRAND
Bently Nevada 24701 Housing AssemblyPRODUCT FAMILY · SENSOR ACCESSORY
HOUSING AND MATERIAL

24701 Assembly

The 24701 housing uses a 303 stainless-steel body and 304 stainless-steel sleeve for corrosion-resistant mechanical and environmental protection.

PROBE AND DIMENSIONS

Probe Not Included

The configuration supplies no probe or probe cable, uses no standoff, and provides 29.0 in probe penetration.

FITTINGS AND MOUNTING

Option 03 · 3/4-14 NPT

The fitting set contains one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer and one cable seal grip with grommets; mounting thread option 02 is 3/4-14 NPT.

System relationship: the complete housing code, penetration, fittings and mounting thread must match the machine installation and proximity-probe system.
APPLICATION AREAS

Installation and measurement roles for 24701-00-00-00-290-03-02

Probe Installation AccessProvides protected external access for installing, adjusting or replacing a compatible proximity probe.
Corrosion-Resistant HousingUses stainless-steel housing components for demanding machinery installations where corrosion resistance is required.
APPLICATION CENTER 24701-00-00-00-290-03-02 Proximity Probe Housing Assembly
External Probe MountingSupports externally mounted proximity-probe installations with protected access to the probe assembly.
Long Penetration InstallationProvides 29.0 in probe penetration for machine installations requiring extended reach.
