Product Overview

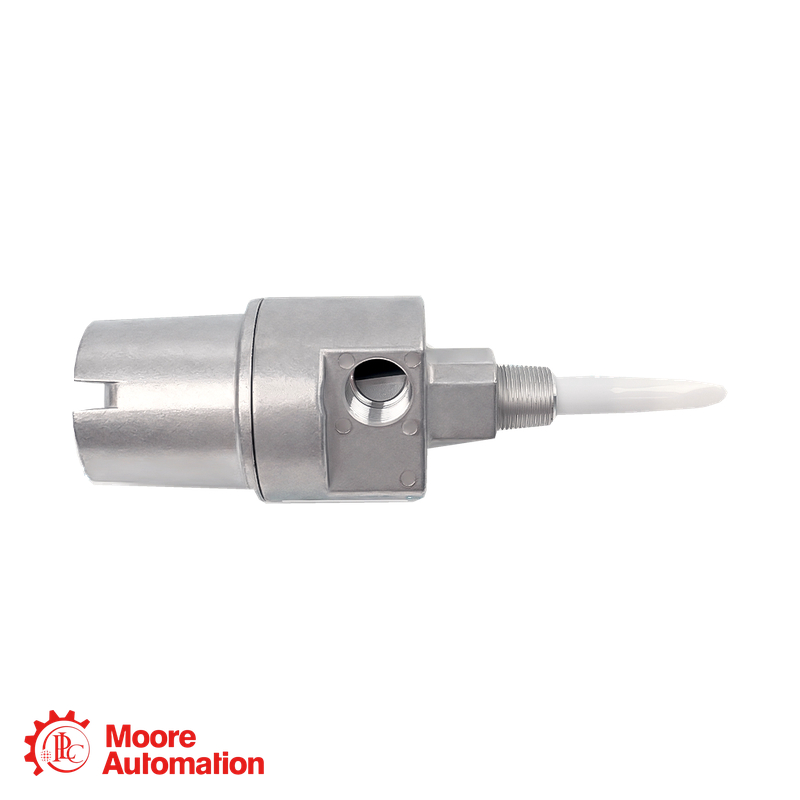

The Bently Nevada 21000-32-05-00-038-03-02 is an aluminum proximity probe housing assembly for externally mounting a 3300 XL NSv reverse-mount probe. This configuration combines a connector protector, a 0.5 m probe cable, no standoff adapter, 3.8 in probe penetration, fittings option 03, and a 3/4-14 NPT mounting thread. The assembly provides a protected and accessible mounting point for proximity measurements on rotating machinery. Its 3.8 in penetration remains below the 12 in threshold at which Bently Nevada requires additional sleeve support.

Model Number Breakdown

Complete Model: 21000-32-05-00-038-03-02
21000 = Aluminum proximity probe housing assembly.
32 = 3300 XL NSv probe with connector protector and selectable hazardous-area approval options.
05 = 0.5 m (20 in) probe cable.
00 = No standoff adapter.
038 = 3.8 in probe penetration.
03 = One 3/4-14 NPT plug;
one 3/4-14 to 1/2-14 NPT reducer;
one cable seal grip with grommets for cable sizes:
1/8–3/16 in, 1/4–5/16 in and 5/16–3/8 in.
02 = 3/4-14 NPT mounting thread.

Technical Information

Parameter	Value
Manufacturer	Bently Nevada
Ordering Number	21000-32-05-00-038-03-02
Product Type	Proximity Probe Housing Assembly
Housing Body	Aluminum
Probe Sleeve	304 stainless steel
Probe Type	3300 XL NSv reverse-mount probe
Connector Protection	Connector protector included
Probe Cable Length	0.5 m (20 in)
Standoff Adapter	None
Probe Penetration	3.8 in (approx. 97 mm)
Penetration Adjustment Range	13 mm (±0.5 in)
Mounting Thread	3/4-14 NPT
Fittings	NPT plug, NPT reducer and cable seal grip
Cable Seal Grommet Ranges	1/8–3/16 in; 1/4–5/16 in; 5/16–3/8 in
Probe Operating Temperature	-34°C to +177°C
Probe Storage Temperature	-51°C to +177°C
External Housing Standard	API 670

Industries Served

• Oil and gas production and processing
• Power generation facilities
• Petroleum refining operations
• Chemical and petrochemical plants
• Heavy industrial manufacturing

Application Areas

-External mounting of a 3300 XL NSv proximity probe
-Shaft radial-vibration and position monitoring
-Turbine and generator bearing housings
-Compressor, pump, fan and motor monitoring points
-Machine installations requiring protected probe and cable connections

Key Highlights

Key Highlight	Details
Protected NSv probe	Option 32 combines a 3300 XL NSv probe with a connector protector.
Compact cable arrangement	The 0.5 m probe cable supports short field-routing requirements.
3.8 in penetration	Provides a defined probe reach without exceeding the 12 in sleeve-support threshold.
No standoff adapter	The probe penetration is established directly by the 038 configuration.
Complete fittings package	Includes an NPT plug, reducer, cable seal grip and three grommet ranges.
3/4-14 NPT mounting	Provides the documented machine-mounting thread selected by option 02.

Frequently Asked Questions

1. Which probe is included in 21000-32-05-00-038-03-02?
Option 32 specifies a 3300 XL NSv probe equipped with a connector protector.

2. What cable length is selected by option 05?
Option 05 provides a 0.5 m cable, approximately 20 inches long.

3. Does the 3.8 in probe penetration require additional sleeve support?
The official manual requires support when the combined standoff and penetration length exceeds 12 inches. This configuration has no standoff and uses 3.8 in penetration.
