Bently Nevada 21000-16-10-00-098-03-02 300 XL 8 mm Probe Housing

Product Overview

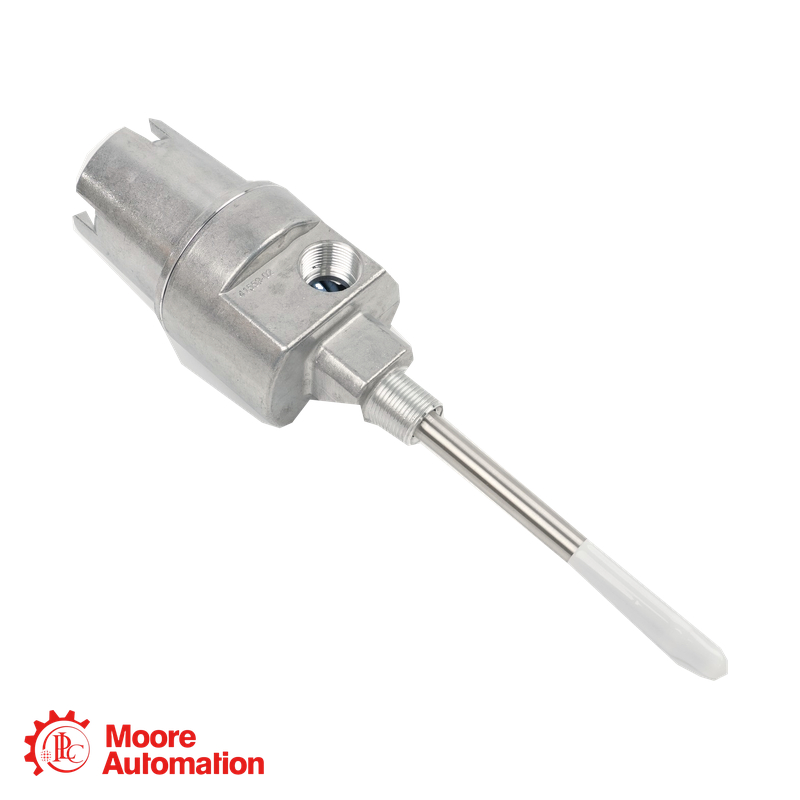

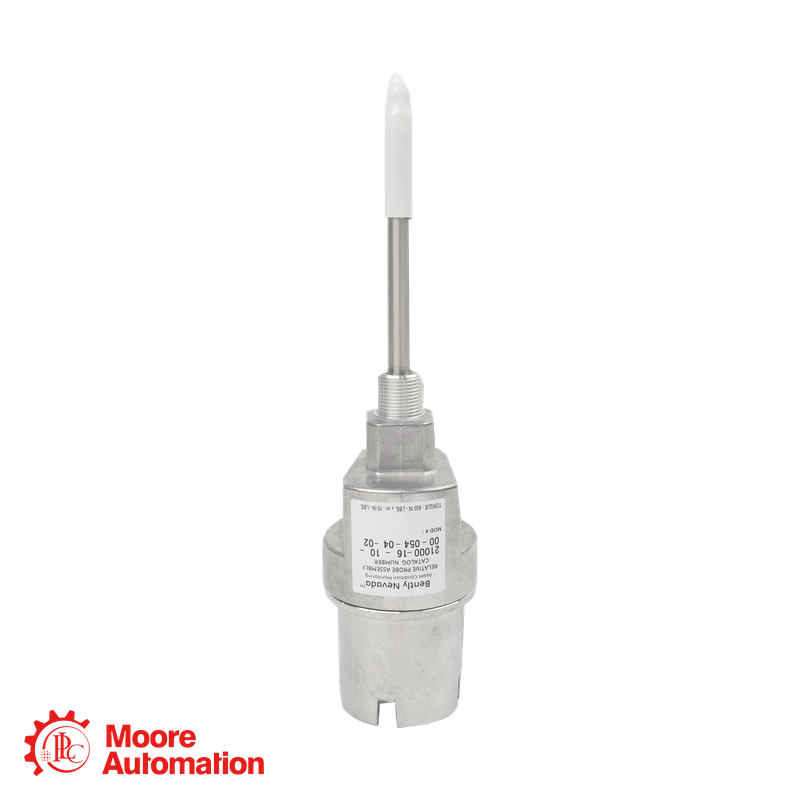

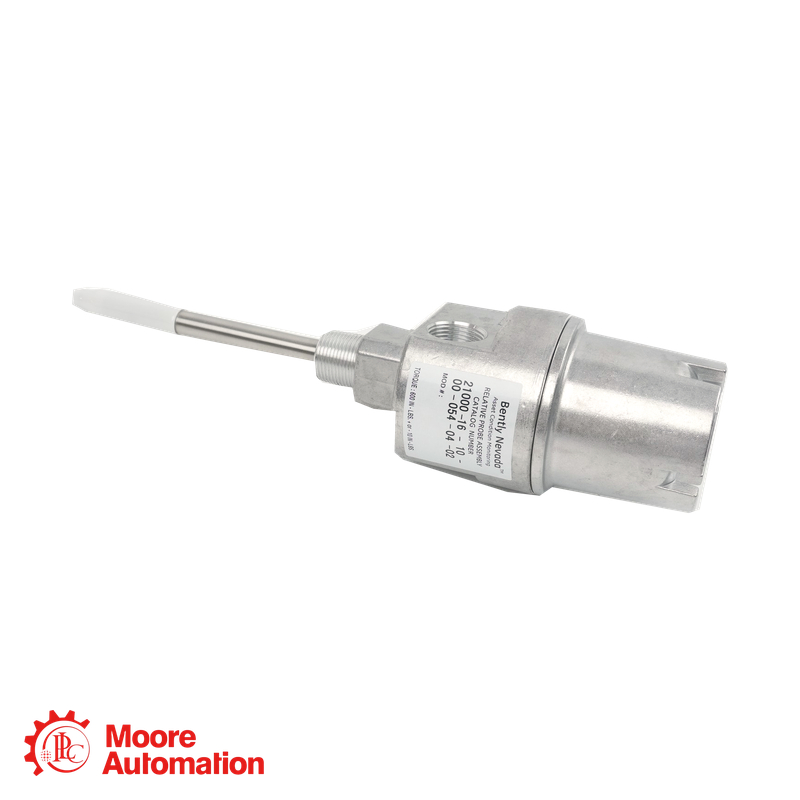

The Bently Nevada 21000-16-10-00-098-03-02 is an aluminum proximity probe housing assembly for externally mounting a 3300 XL 8 mm reverse-mount proximity probe. This configuration includes a 1.0 m probe cable, no standoff adapter, a 9.8 in probe-penetration selection, fittings option 03, and a 3/4-14 NPT mounting thread. The assembly supports protected routing and adjustment of the proximity probe in rotating-machinery monitoring installations.

Model Number Breakdown

Model Number: 21000-16-10-00-098-03-02
21000 = Aluminum proximity probe housing assembly.
16 = 3300 XL 8 mm probe selection.
10 = 1.0 m (39 in) probe cable length.
00 = No standoff adapter.
098 = 9.8 in probe penetration option.
03 = One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer,and one cable seal grip with grommets.
02 = 3/4-14 NPT mounting thread.

Technical Information

Industries Served

• Oil and gas rotating-equipment facilities
• Power generation turbine applications
• Chemical and petrochemical processing plants
• Refining and compressor-train installations
• Industrial pump, fan and blower monitoring programs

Application Areas

-External mounting of a 3300 XL 8 mm proximity probe
-Shaft vibration and radial-position measurement points
-Turbine, compressor, pump and motor bearing housings
-Probe installations requiring a 3/4-14 NPT mounting connection
-Machinery-monitoring upgrades where probe access is required outside the machine casing

Key Highlights

Frequently Asked Questions

1. Which probe is configured in 21000-16-10-00-098-03-02?
This model uses the 16 option, which specifies a Bently Nevada 3300 XL 8 mm probe.

2. What probe penetration does the 098 option provide?
The 098 code specifies a 9.8 in probe penetration selection.

3. What is included with fittings option 03?
It includes a 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with grommets.
