 /Bently Nevada 21000-00-00-15-030-04-02 Proximity Probe Housing Assembly
Bently Nevada 21000-00-00-15-030-04-02 Proximity Probe Housing Assembly
Bently Nevada 21000-00-00-15-030-04-02 Proximity Probe Housing Assembly
Bently Nevada 21000-00-00-15-030-04-02 Proximity Probe Housing Assembly

Bently Nevada 21000-00-00-15-030-04-02 Proximity Probe Housing Assembly

21000 · PROBE HOUSING ASSEMBLY

21000-00-00-15-030-04-02

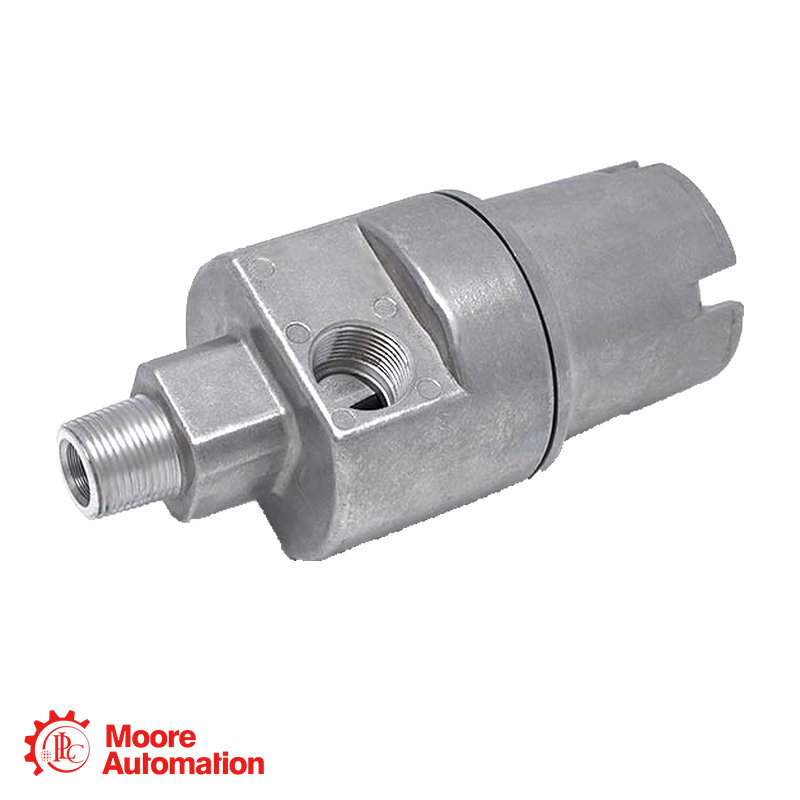

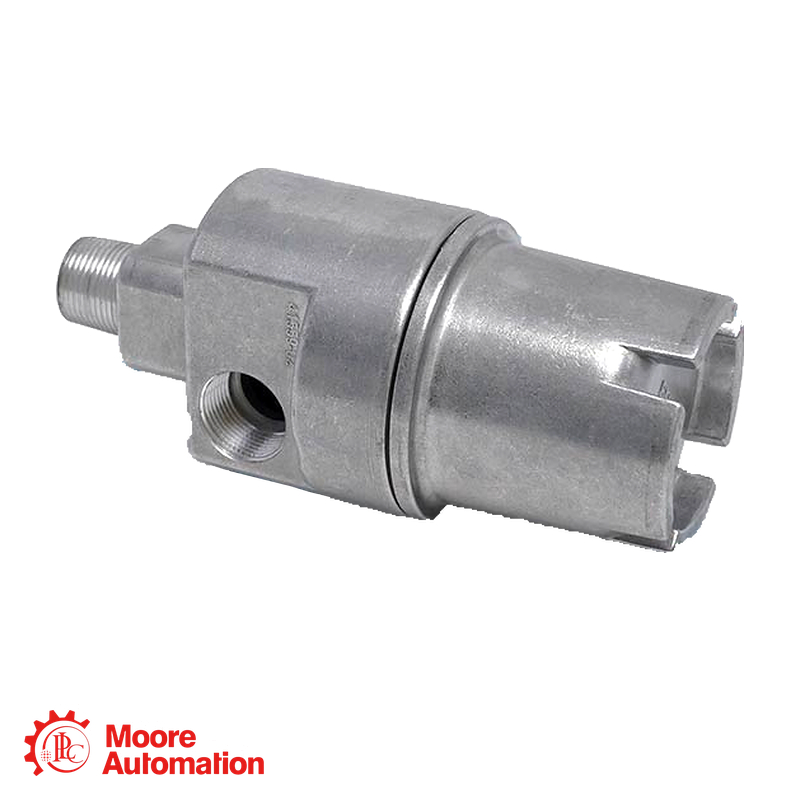

21000-00-00-15-030-04-02 — A configured Bently Nevada 21000 aluminum proximity probe housing assembly supplied without a probe or probe cable, with a 1.5 inch standoff adapter, 3.0 inch probe penetration, one 3/4-14 NPT plug and 3/4-14 NPT mounting thread.

HOUSINGALUMINUM
STANDOFF1.5 IN
PENETRATION3.0 IN
MOUNTING3/4-14 NPT
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 21000 PROXIMITY PROBE HOUSING ASSEMBLY
21000 PROXIMITY PROBE HOUSING ASSEMBLY

21000-00-00-15-030-04-02

Aluminum housing · No probe · 1.5 in standoff · 3/4-14 NPT mount

Proximity Probe Housing Assembly

PROXIMITY SENSING ROLE
21000-00-00-15-030-04-02 — This configured 21000 aluminum housing assembly provides an external mounting enclosure for a separately selected Bently Nevada proximity probe.
CONFIGURATION NOTE
21000 identifies the aluminum housing assembly; the first 00 specifies no probe, the second 00 specifies no probe cable, 15 specifies a 1.5 inch standoff adapter, 030 specifies 3.0 inch probe penetration, 04 specifies one 3/4-14 NPT plug, and 02 specifies a 3/4-14 NPT mounting thread.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

21000
Base modelAluminum proximity probe housing assembly
00
Probe optionProbe not required
00
Probe cableProbe cable not required
15
Standoff adapter1.5 in (38 mm)
030
Probe penetration3.0 in (76 mm)
04
FittingsOne 3/4-14 NPT plug
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
21000 PROXIMITY PROBE HOUSING ASSEMBLY

Engineering data at a glance

Click “+” to expand more specifications.

HOUSINGALUMINUM
STANDOFF1.5 IN
PENETRATION3.0 IN
MOUNTING3/4-14 NPT
Configuration from manufacturer ordering data.
Configuration check Confirm the complete order code, probe and cable requirement, standoff length, probe penetration, fitting package and mounting thread before ordering.
General Information −
BrandBently Nevada
Part number21000-00-00-15-030-04-02
Product typeProximity Probe Housing Assembly
Product family21000 Proximity Probe Housing Assembly
Housing materialALUMINUM
ArmorAluminum housing assembly
Housing Configuration ＋
Probe suppliedNo probe required
Probe cableNot required
Standoff adapter1.5 in (38 mm)
Mounting and Fittings ＋
Probe penetration3.0 in (76 mm)
FittingsOne 3/4-14 NPT plug only
Mounting thread3/4-14 NPT
Housing body dimension A83.3 mm (3.28 in)
Housing body dimension B161.6 mm (6.36 in)
Installation Reference ＋
The 21000 housing is designed for externally mounting a proximity probe. This configuration has a combined standoff and probe-penetration dimension of 4.5 in (114 mm); select the probe and sleeve arrangement for the actual machine location.
Source: Bently Nevada 21000, 24701, and 164818 Proximity Probe Housing Assemblies Datasheet, Part Number 141600, Rev. AC. Final installation requires a separately selected compatible proximity probe and the correct sleeve and cable arrangement.
FAQ

Questions Buyers Ask Most

What is 21000-00-00-15-030-04-02 used for?＋

21000-00-00-15-030-04-02 is a Bently Nevada aluminum proximity probe housing assembly configured without a probe or probe cable, with a 1.5 inch standoff, 3.0 inch probe penetration, one 3/4-14 NPT plug and 3/4-14 NPT mounting thread.

What does the 21000-00-00-15-030-04-02 code specify?＋

For 21000-00-00-15-030-04-02, 21000 identifies the aluminum housing; 00 means no probe, 00 means no probe cable, 15 is a 1.5 inch standoff, 030 is 3.0 inch probe penetration, 04 is one 3/4-14 NPT plug, and 02 is a 3/4-14 NPT mounting thread.

Can 21000-00-00-15-030-04-02 be substituted with a similar part number?＋

Do not substitute 21000-00-00-15-030-04-02 by appearance or family name alone. Compare the housing material, probe and cable selection, standoff length, probe penetration, fitting package and mounting thread.

What do the 15 and 030 options on 21000-00-00-15-030-04-02 specify?＋

21000-00-00-15-030-04-02 uses a 1.5 inch standoff adapter and 3.0 inch probe penetration. The final 02 option specifies a 3/4-14 NPT mounting thread.

What should I provide for a 21000-00-00-15-030-04-02 quotation?＋

Send the complete 21000-00-00-15-030-04-02 label, quantity, required proximity probe and cable details, installation dimensions, conduit requirements, and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete housing order code, probe and cable requirements, machine mounting dimensions and conduit details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
21000-00-00-15-030-04-02

Official manufacturer documentation for the Bently Nevada 21000 aluminum proximity probe housing assembly and its ordering configuration.

Official manufacturer datasheet

Bently Nevada Datasheet 141600 identifies 21000 as the aluminum proximity probe housing assembly. This order code specifies no probe, no probe cable, a 1.5 inch standoff adapter, 3.0 inch probe penetration, one 3/4-14 NPT plug and a 3/4-14 NPT mounting thread.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use Bently Nevada 21000, 24701, and 164818 Proximity Probe Housing Assemblies Datasheet, Part Number 141600, Rev. AC.

21000 HOUSING CONFIGURATION

How 21000-00-00-15-030-04-02 Is Configured

Bently Nevada is the manufacturer. 21000-00-00-15-030-04-02 is an aluminum proximity probe housing assembly configured without a probe or probe cable, with a 1.5 inch standoff adapter, 3.0 inch probe penetration, one 3/4-14 NPT plug and a 3/4-14 NPT mounting thread.

Bently Nevada · BRAND
Bently Nevada 21000 Housing AssemblyPRODUCT FAMILY · PROBE HOUSING
HOUSING BODY

Aluminum Housing

The 21000 series uses an all-metal aluminum housing body for externally mounting a separately selected proximity probe.

STANDOFF ADAPTER

1.5 in Standoff

Option 15 specifies a 1.5 inch (38 mm) standoff adapter between the machine mounting point and probe housing.

MOUNTING CONNECTION

3/4-14 NPT Thread

Option 02 specifies the 3/4-14 NPT mounting thread required with the nonzero standoff adapter.

System relationship: this configuration is supplied without a probe or probe cable; select the compatible probe, sleeve and cable arrangement separately for the installation.
APPLICATION AREAS

Functions and integration points for 21000-00-00-15-030-04-02

External Probe MountingProvides an external all-metal housing for installing a separately selected Bently Nevada proximity probe.
Probe Sleeve PositioningUses the specified 1.5 inch standoff and 3.0 inch probe-penetration dimensions to position the probe housing at the machine case.
APPLICATION CENTER 21000-00-00-15-030-04-02 21000 Proximity Probe Housing Assembly
Conduit ConnectionProvides one 3/4-14 NPT plug in the configured fitting package for the housing conduit arrangement.
API 670 External MountingSupports externally mounted proximity-probe housing installations designed around the manufacturer’s API 670-compliant housing assembly.
