Marque :
BENDERNuméro d'article :
IRDH275B-427Lester :
0.5kgDimension :
11.1x11.1x7.7cmPays d'origine :
GermanyCode SH :
8537101190La description :

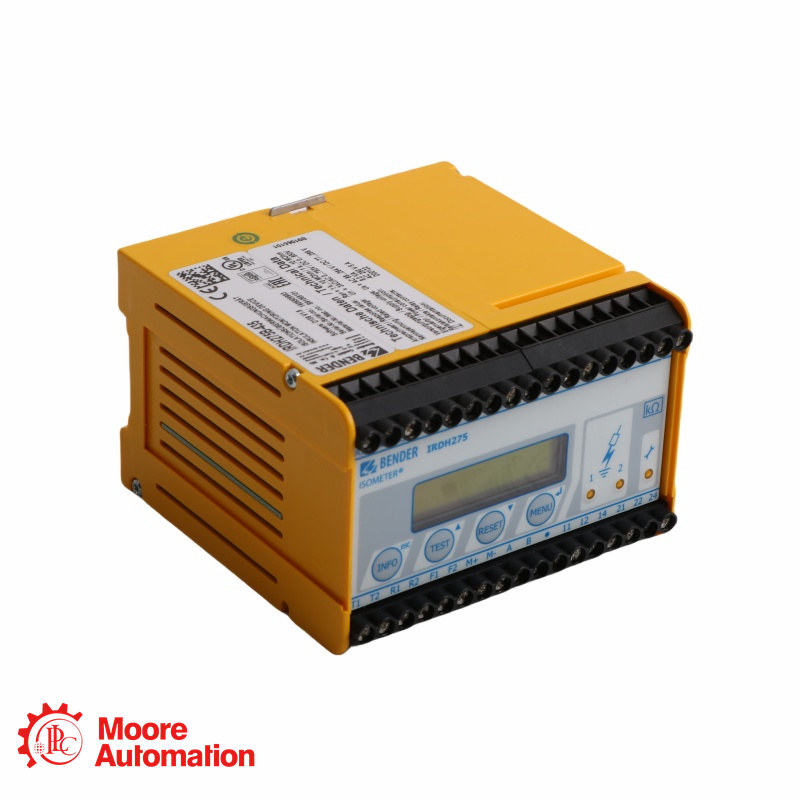

Insulation Monitoring Device
Contact ：Chloe
Our Company
|
Moore Automation is a high-tech company specializing in the sales of industrial automation components dedicated to enhancing the world's supply of automation components. No matter where your customers are, no matter how rare moles they need, accessories are available to customers all over the world, allowing them to connect closely with their products. |
Product Specifications
|
• Insulation monitoring for unearthed AC,
AC/DC systems 0…793 V, DC 0…650 V
• Nominal voltage extendable via coupling
device
• Two separately adjustable response values1 kΩ…10 MΩ
• AMPPlus measurement method
• Automatic adaptation to the system
leakage capacitance
• Info button to display device settings
and system leakage capacitance
• Self monitoring with automatic alarm
• Automatic self test, selectable
• Connection for external kΩ indication
• Test and reset button
• External test/reset button can be connected
• Two separate alarm relays with two
potential-free changeover contacts
• N/O or N/C operation, selectable
• Backlit LC display
• RS-485 interface
|
Product Information
|
The ISOMETER® of the IRDH275 series is designed to monitor the insulation resistance of unearthed main circuits (IT systems) AC, AC/DC 0…793 V resp. DC 0…650 V. The AMPPlus measurement method meets the particular requirements of modern power supplies which often include rectifiers, converters, thyristor-controlled DC drives and directly connected DC components. In these systems often high leakage capacitances against earth occur due to interference suppression measures. The IRDH275 automatically adapts itself to the existing system conditions.
|
Nos avantages
※Si vous souhaitez commander plus d'un produit, veuillez nous contacter. Nous pouvons vous proposer une réduction.
※Si vous avez d'autres questions, n'hésitez pas à nous contacter.
※Si vous trouvez les mêmes pièces chez d'autres fournisseurs à un prix inférieur au nôtre, nous essaierons de nous aligner sur ce prix.
au même prix, ou vous accorder une réduction supplémentaire.
