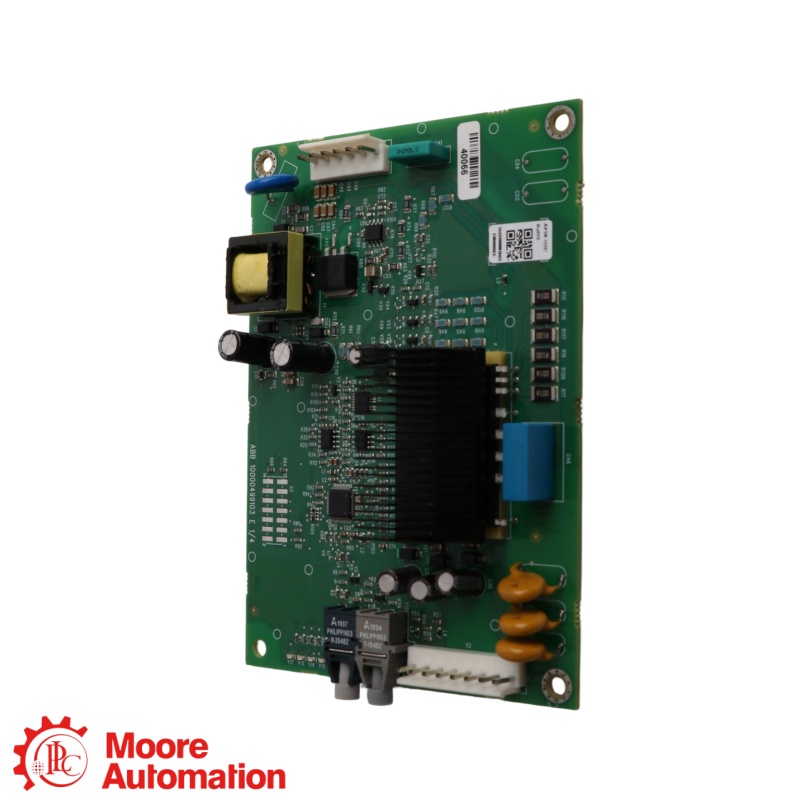

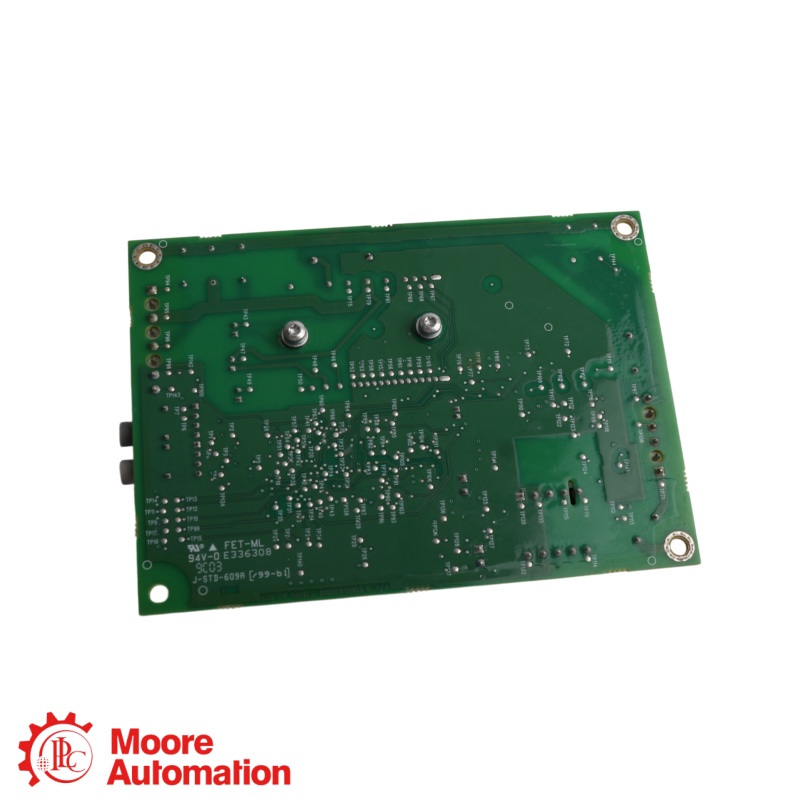

ABB ZINT-592 3AXD50000037931 MC Interface Board
ABB ZINT-592 3AXD50000037931 MC Interface Board
ABB ZINT-592 3AXD50000037931 MC Interface Board

ABB ZINT-592 3AXD50000037931 MC Interface Board

ABB · ZINT-592 MC INTERFACE BOARD

ZINT-592 3AXD50000037931

The ZINT-592 3AXD50000037931 is an ABB ZINT-592 MC interface board supplied as the preloaded rated CCU-24 spare under ABB product ID 3AXD50000037931. ABB lists it for ACS580, ACH580 and ACQ580 R8–R9 drive modules with a CCU-24 control unit.

MANUFACTURERABB
BOARD FAMILYZINT-592
CONTROL UNITCCU-24
RATING STATEPreloaded
MANUFACTURERABB
PRODUCT TYPEMC interface board
CONDITION / WARRANTYOriginal New · One-Year Warranty
COMPATIBILITYCCU-24 control unit
REQUEST A QUOTE
Renseignez-vous maintenant
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ABB ● ZINT-592 rated MC interface board
ABB ZINT-592 MC Interface Board

ZINT-592 3AXD50000037931

ABB RATED CCU-24 SPARE

Preloaded MC interface board · CCU-24 · R8–R9

PRODUCT ROLE
ZINT-592 3AXD50000037931 is ABB’s preloaded rated MC interface board for ACS580, ACH580 and ACQ580 R8–R9 drive modules with a CCU-24 control unit. ABB identifies the separate 3AXD50000037910 as the non-rated version.
CONFIGURATION NOTE
ABB identifies 3AXD50000037931 as the ZINT-592 WITH RATING CCU-24 SP. It is preloaded with the specified PU type and RatingID, which cannot be changed afterward. ABB specifies CCU-24 software v2.03.0.4 or later after manufacturing week 25/2017.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE MC INTERFACE BOARD

Technical Specifications

ABB ZINT-592 MC Interface Board
ZINT-592 3AXD50000037931

Engineering data at a glance

ABB’s exact product record identifies the rated CCU-24 variant and its application in R8–R9 ACS580, ACH580 and ACQ580 modules.

BOARD TYPEMC interface
CONTROL UNITCCU-24
DRIVE FRAMESR8–R9
NET WEIGHT0.4 kg
ZINT-592 rated configurationABB lists this board as preloaded with the correct PU type and RatingID. The RatingID cannot be changed after supply.
GENERAL INFORMATION −
BrandABB
ABB product ID3AXD50000037931
Product typeMC interface board
Type designationZINT-592 with rating CCU-24 SP
Control unitCCU-24
Drive familiesACS580 / ACH580 / ACQ580
Drive framesR8–R9
Net weight0.4 kg
Rating configurationPU type and RatingID preloaded
COMPATIBILITY & SOFTWARE ＋
Control unitCCU-24
Required softwarev2.03.0.4 or later after week 25/2017
Drive module applicationACS580, ACH580 and ACQ580 R8–R9
RATED BOARD CONFIGURATION ＋
ABB describes this product ID as a preloaded rated ZINT-592 board with its PU type and RatingID already set. ABB lists 3AXD50000037910 as a separate non-rated on-site-programmable spare.
Source: ABB’s official product record for 3AXD50000037931 specifies the CCU-24 version, supported drive families and preloaded rating configuration.
FAQ

ZINT-592 3AXD50000037931 Technical FAQ

Which ABB drive modules use ZINT-592 3AXD50000037931 as their main interface board?＋

ZINT-592 3AXD50000037931 is listed for ACS580, ACH580 and ACQ580 R8–R9 drive modules when the installed control unit is CCU-24.

What control-unit and software conditions apply to ZINT-592 3AXD50000037931?＋

ZINT-592 3AXD50000037931 requires CCU-24. ABB specifies CCU-24 software v2.03.0.4 or later for units after manufacturing week 25/2017; compare the installed control-unit revision before replacement.

Which settings are preloaded in ZINT-592 3AXD50000037931?＋

ZINT-592 3AXD50000037931 is supplied with the correct PU type and RatingID. ABB states that the RatingID cannot be changed afterward.

Is ZINT-592 3AXD50000037931the same as non-rated 3AXD50000037910?＋

No. ZINT-592 3AXD50000037931is the rated, preloaded CCU-24 spare. ABB lists 3AXD50000037910 separately as a non-rated board with a service license for on-site programming.

What should be checked before installing and commissioning ZINT-592 3AXD50000037931 ?＋

ZINT-592 3AXD50000037931 should be checked against the ABB product ID, the ACS580/ACH580/ACQ580 R8–R9 module, CCU-24 control unit, software revision and preloaded rating in the drive service record.

Can ZINT-592 3AXD50000037931 be used with an existing CCU-12 control unit?＋

No. ZINT-592 3AXD50000037931 is compatible only with CCU-24. ABB says a CCU-12 control unit must be replaced with CCU-24 for this board.

Which order and successor IDs should be checked for ZINT-592 3AXD50000037931?＋

ABB identifies ZINT-592 3AXD50000037931 as product ID 3AXD50000037931 and lists replacement/configurator product ID 3AXD50001108335. Confirm the correct configured replacement against the installed drive before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the ABB product ID, drive family and frame, CCU-24 software version, installed rating and quantity for configuration and availability checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
ZINT-592 3AXD50000037931

ABB’s exact product record identifies 3AXD50000037931 as the preloaded rated ZINT-592 MC interface board for CCU-24-equipped R8–R9 drive modules. An exact manufacturer-hosted PDF for this full product ID was not confirmed.

Official datasheet status

No current official ZINT-592 3AXD50000037931 product PDF was located in ABB’s public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Configuration facts are based on ABB’s exact 3AXD50000037931 product record; no full-code official PDF is linked here.

ABB ZINT-592 MC INTERFACE BOARD IDENTIFICATION

ABB product identification

ZINT-592 3AXD50000037931 is ABB’s rated ZINT-592 MC interface board supplied preloaded for a CCU-24 control unit.

BOARD DESIGNATION

ZINT-592

ABB calls the ZINT-592 WITH RATING CCU-24 SP an MC interface board.

ABB PRODUCT ID

3AXD50000037931

This complete ABB product ID identifies the preloaded rated CCU-24 spare, distinct from the non-rated 3AXD50000037910.

Identifier relationship: ZINT-592 is the board designation; 3AXD50000037931 is ABB’s rated CCU-24 spare product ID.
APPLICATION AREAS

Application areas for ZINT-592 3AXD50000037931

ACS580 Drive ModulesMain interface board in ACS580 R8–R9 modules equipped with CCU-24.
ACH580 Drive ModulesMain interface board in ACH580 R8–R9 modules equipped with CCU-24.
APPLICATION CENTER ZINT-592 3AXD50000037931 Rated ZINT-592 · CCU-24 · R8–R9
ACQ580 Drive ModulesMain interface board in ACQ580 R8–R9 modules equipped with CCU-24.
Drive Rating ConfigurationPreloaded PU type and RatingID for the specified CCU-24 drive configuration.
