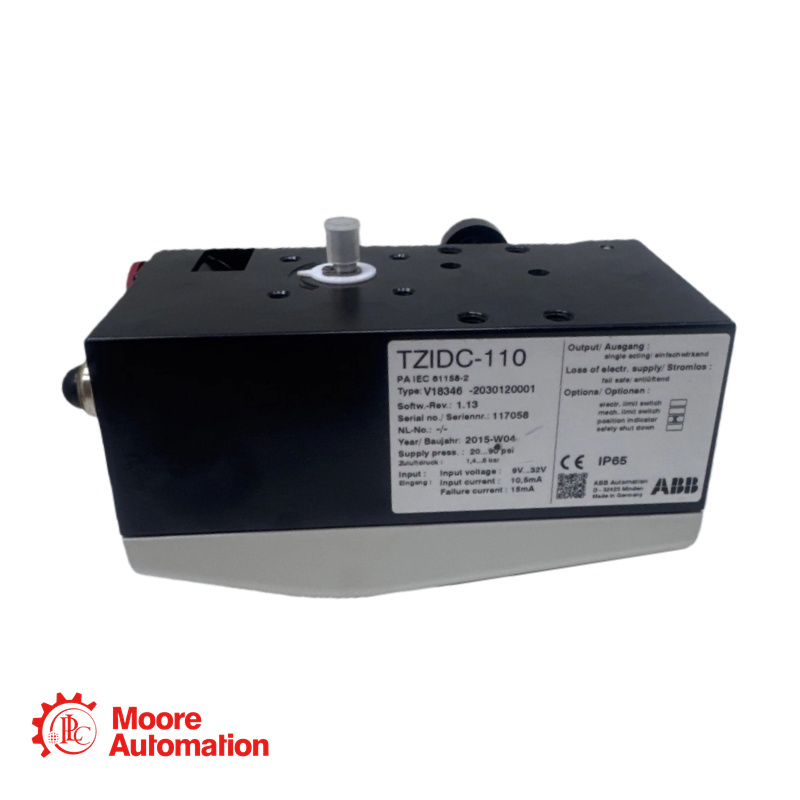

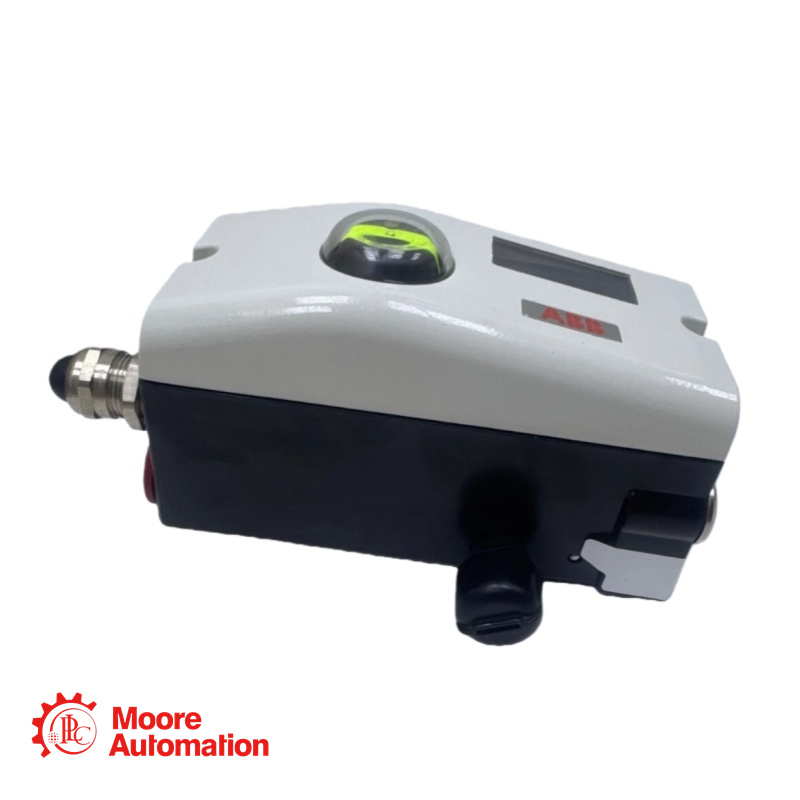

The TZIDC-110 represents the digital, intelligent positioner for communication via PROFIBUS PA within the positioner family. Unmatched shock and vibration immunity of 10g up to 80 Hz distinguishes the TZIDC-110 from other's and guarantee reliable operation in almost all areas under harshest environmental conditions.
Marque :
ABBNuméro d'article :
TZIDC-110Lester :
1.7 kgDimension :
130 mm*160 mm*210 mmPays d'origine :
SwedenCode SH :
8537101190La description :
Digital PositionerHow to Contact?
Click to Communicate with Our Sales Manager: Frida
Phone: +86 15359408275 Email:sales5@mooreplc.com
Discover This Product
PROFIBUS Profile: Electro-pneumatic actuators V3.0
Physical Layer: In compliance with IEC 61158-2
Transmission Rate: 31.25 Kbit/s
Bus Supply Voltage: 9.0 to 32.0 V DC
Maximum Permissible Voltage: 35 V DC
Input Current: 10.5 mA
Current in Event of an Error: 15 mA (10.5 mA + 4.5 mA)
Device Name: TZIDC-X10
Bus Address Range: 0 to 126 (Default: 126)
Actuator Travel:
Rotation Angle (Meas. Range): 270°
Operating Range for Linear Actuators: min. 25°, max. 45°
Operating Range for Rotary Actuators: min. 25°, max. <270°
Actuator Travel Limit: Freely configurable from 0 to 100% of total travel (minimum range >20%)
Actuator Travel Time Prolongation: 0 to 200 seconds, separately adjustable for each direction (only with "fail-safe" pneumatics)
Dead Band Time Limit (Monitoring Parameter): 0 to 200 seconds
Pneumatic Connections: Thread options: 1/4-14 NPT, 1/4-18 NPT, M20 x 1.5, G 1/4, Rc 1/4
Compressed Air Supply Pressure (Standard): 1.4 to 6.0 bar (20 to 90 psi)
Compressed Air Supply Pressure (Marine Version): 1.6 to 5.5 bar (23 to 80 psi)
Air Capacity (at 1.4 bar / 20 psi): >5 kg/h (~3.9 Nm³/h / 2.3 scfm)
Air Capacity (at 6.0 bar / 90 psi): >13 kg/h (~10 Nm³/h / 6 scfm)
Air Consumption (Standby): <0.03 kg/h (<0.015 scfm), independent of supply pressure
Resolution (A/D Conversion): >16,000 steps
Sampling Frequency: 20 ms
Ambient Temperature Effect: ≤0.5% per 10 K (Reference: 20 °C)
Influence of Vibration: ≤1% up to 10 g at 80 Hz
Temperature Range (Operation, Storage, Transport): -40 to +85 °C (-40 to 185 °F)
Relative Humidity (Operation): Up to 95% (annual average), condensation permissible with housing closed and air supply on.
Relative Humidity (Transport/Storage): Up to 75% (annual average)
Using Area
Oil & Gas
Chemical & Petrochemical
Pharmaceutical & Biotechnology
Power Generation
