Contact Frida for ACS580-01-026A-4 Pricing

Inquiry Information	Contact Details
Product Model	ACS580-01-026A-4
Inquiry Type	Price, availability and delivery time
Contact Person	Frida
Mobile / WhatsApp	+86 15359408275
Email	sales5@mooreplc.com
Information to Provide	Required quantity and delivery destination

Product Overview

The ABB ACS580-01-026A-4 is a wall-mounted AC drive developed for general-purpose motor control. Its nominal IEC output is 25 A with an 11 kW motor rating at 400 V. Built in the R2 frame, the standard model uses an IP21 enclosure for indoor installation. It can regulate the speed and torque of induction, permanent-magnet and synchronous reluctance motors when the motor data and control parameters are correctly configured. The standard drive includes an assistant control panel, Modbus RTU communication, Safe Torque Off, an internal EMC filter and a braking chopper. It can operate as an independent motor controller or exchange commands and process data with a compatible automation system.

Technical Specifications

Parameter	Specification
Model Number	ACS580-01-026A-4
Product Type	Wall-mounted AC drive
Input Supply	380–480 V AC, three-phase
Rated Power	11 kW at 400 V
Rated Output Current	25 A at 400 V
Frame Size	R2
Enclosure Rating	IP21

Benefits

-Adjustable motor speed
-Controlled acceleration and stopping
-Reduced starting current
-Lower mechanical stress
-Straightforward parameter setup
-Integrated energy monitoring
-Flexible automation connection
-Compact cabinet installation

Key Highlights

● 11 kW nominal IEC rating
● 25 A nominal output at 400 V
● 30.6 A maximum output current
● 380–480 V three-phase supply
● R2 wall-mounted construction
● Integrated Safe Torque Off
● Built-in braking chopper
● Standard Modbus RTU interface

Customer Questions and Answers

Customer Question	Engineering Answer
What motor rating is suitable for the ACS580-01-026A-4?	Its nominal IEC rating is 11 kW and 25 A at 400 V. Selection should be based on the motor nameplate current and load duty rather than motor power alone.
What is the heavy-duty rating at 400 V?	ABB specifies 17 A and 7.5 kW for heavy-duty operation. This lower rating applies where the load requires increased overload capability or higher starting torque.
How is the drive rated on a 480 V supply?	At 480 V, ABB lists a light-duty rating of 23 A and 15 hp. The heavy-duty rating is 14 A and 10 hp. The selected rating must match the application load profile.
Does this R2 drive include a braking chopper?	Yes. A braking chopper is integrated into the R2 frame. The required external braking resistor must be sized according to load inertia, stopping time, motor rating and braking frequency.
What should be verified before the first start?	Check the incoming voltage, motor nameplate values, grounding, fuse selection, power-cable size, current limit, speed range, ramp times, rotation direction, cooling clearance and Safe Torque Off wiring.

Industries Served

Water and Wastewater--The ACS580-01-026A-4 can regulate transfer pumps, circulation pumps and pressure-boosting systems within its rated capacity. Adjusting pump speed to process demand can reduce the energy losses associated with valves and continuous full-speed operation.

Food and Beverage Processing--Possible applications include conveyors, mixers, agitators and process pumps fitted with compatible motors. Adjustable ramp settings can provide smoother starts and stops while reducing shock loads on belts, couplings and gearboxes.

General Manufacturing--The ACS580-01-026A-4 can operate fans, pumps, mixers and auxiliary production machinery. Engineers should evaluate motor current, load torque, overload profile, stopping requirements and cabinet conditions before final selection.

Brand	ABB
Part number	ACS580-01-026A-4
Origin	Sweden
Shipping Port	Xiamen，China
Payment	T/T
Shipment	DHL,UPS,FEDEX,TNT,EMS,SF
Service	One-year warranty

Supply Advantages

✔ In Stock

✔ Worldwide shipping support

✔ Tested before shipment

✔1 Year Warranty

Product Supply & Ordering Information

Parameter	Ordering Information
Manufacturer	ABB
Required Model	ACS580-01-026A-4
Required Quantity	State the number of drive units required
Delivery Destination	Provide the destination country, city and postal code

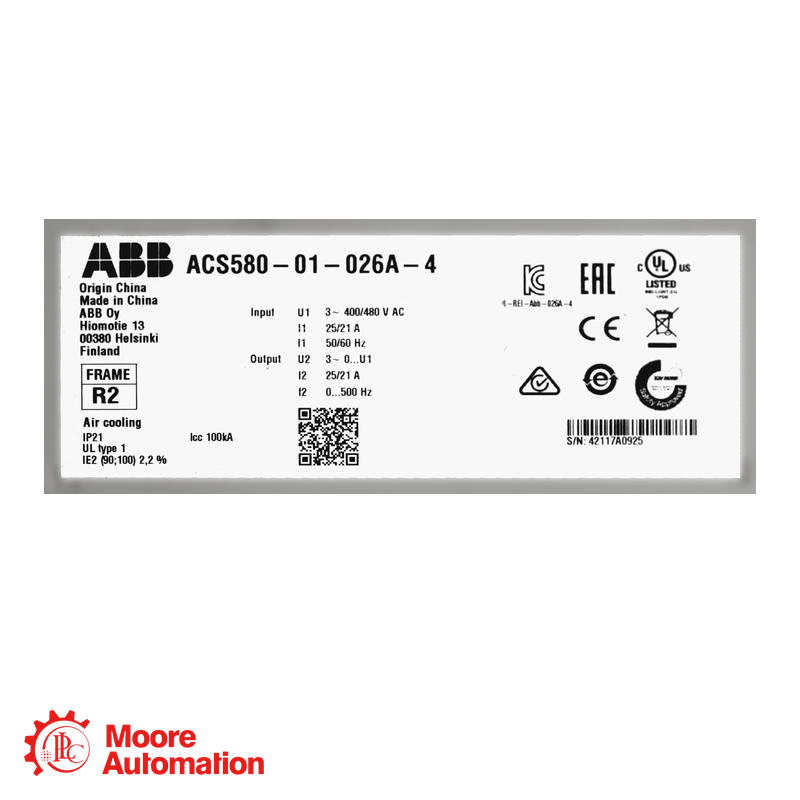

Order Verification	Provide the complete model number and a clear product-label photograph when available
Final Confirmation	Check the model number, quantity, package scope, lead time and shipping method before ordering
