Marque :
Bently NevadaNuméro d'article :
990-08-50-01-05Lester :
0.46kgDimension :
10x7.3x6cmPays d'origine :
USACode SH :
8537101190La description :
Vibration Transmitter
|

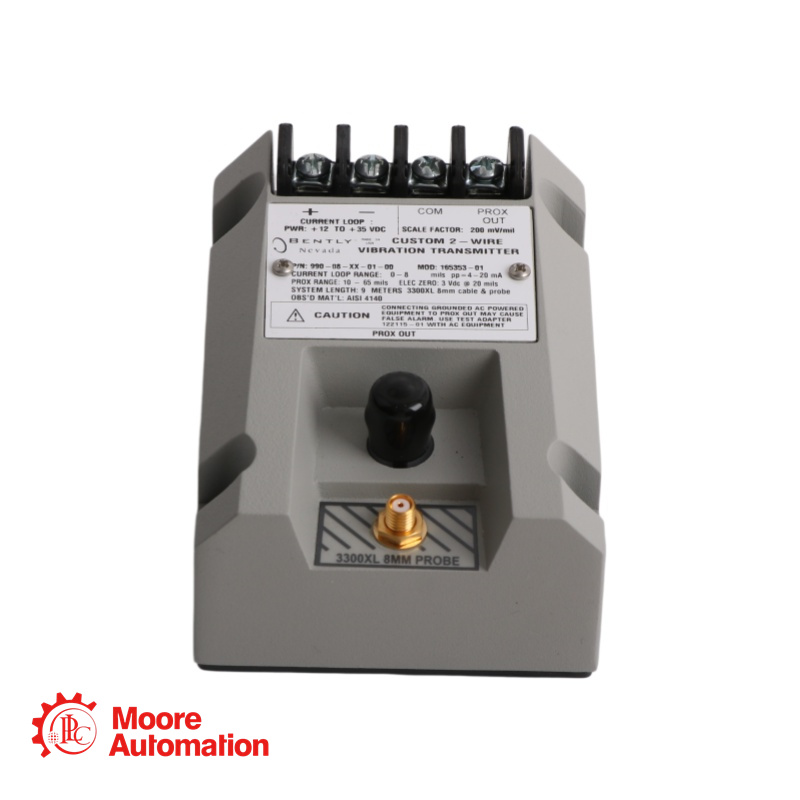

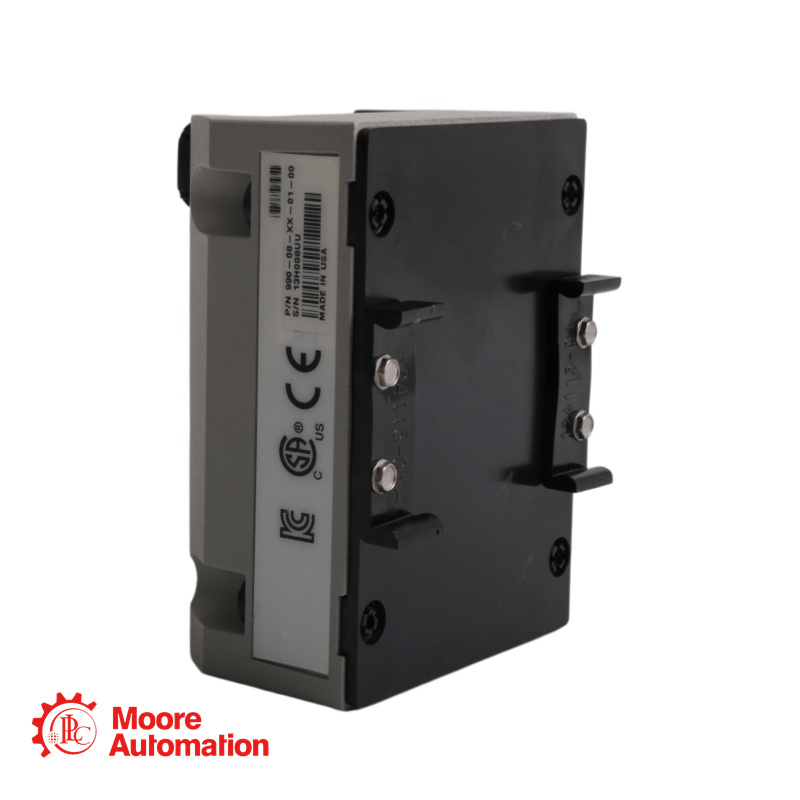

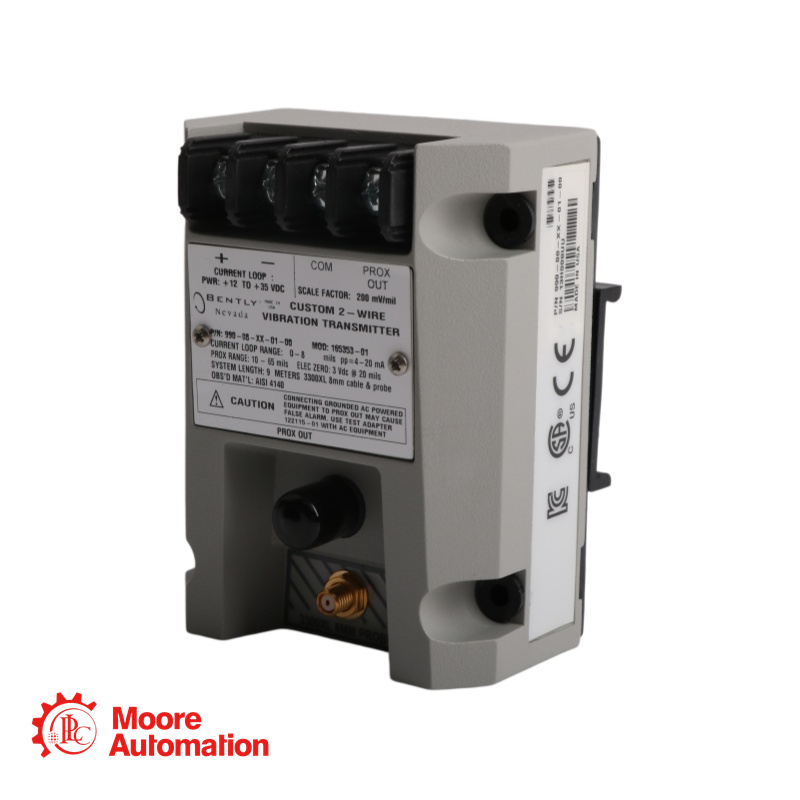

Bently Nevada 990-08-50-01-05 Vibration Transmitter |
|
The 990-08-50-01-05 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options)
A: Full-scale Option: 08 0-8 mils pp (0-200 μm pp) B: System Length Option: 50 5.0 meters (16.4 feet) C: Mounting Option: 01 35 mm DIN rail clips D:Agency Approval Option: 05 CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approval
|
|
Get Best Price - Please Contact Frida |
|
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
Bently Nevada 990-08-50-01-05 FAQ |
||
|
What is the 990-08-50-01-05 primarily used for?
It is designed primarily for OEMs of centrifugal air compressors, small pumps, motors, and fans. It converts vibration signals from a proximity probe into a simple 4 to 20 mA proportional vibration signal for machinery control systems. Which proximity probe is compatible with this transmitter? The 990 transmitter is designed specifically for use with the 3300 NSv Proximity Probe and its corresponding extension cables. What is the input voltage and output signal? The unit is loop-powered with a +12 to +35 Vdc input, providing a proportional 4-20 mA output.
Product Series: Bently Nevada 990 Vibration Transmitter
The 990 transmitter provides the following notable features:
Integrated Proximitor Sensor requires no external unit
Non-isolated PROX OUT and COM terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics.2
Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
Test Input pin for quick verification of loop signal output, using a function generator as the input.
A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
|
||
|
