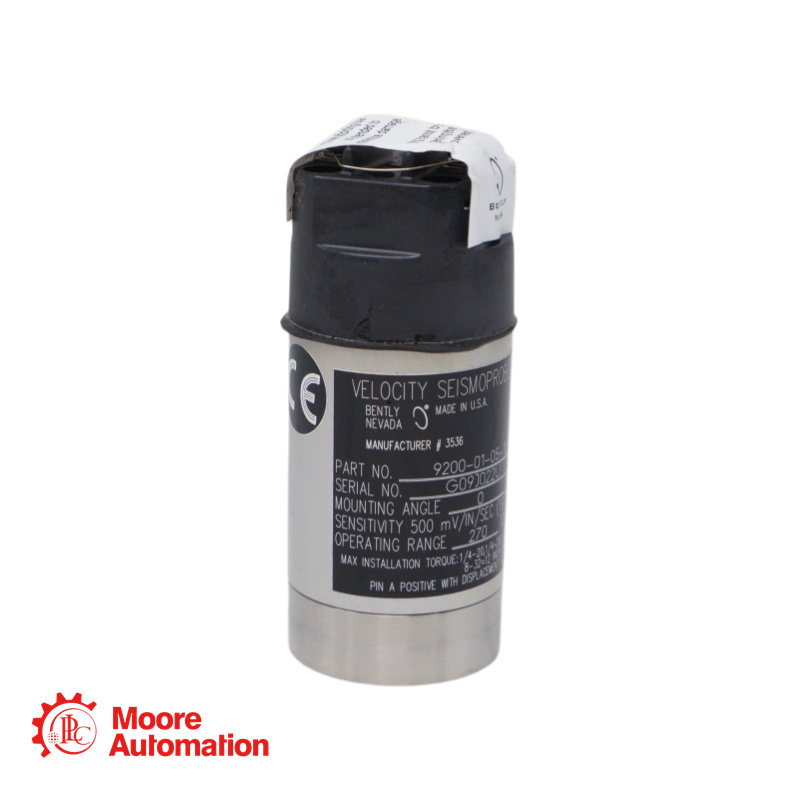

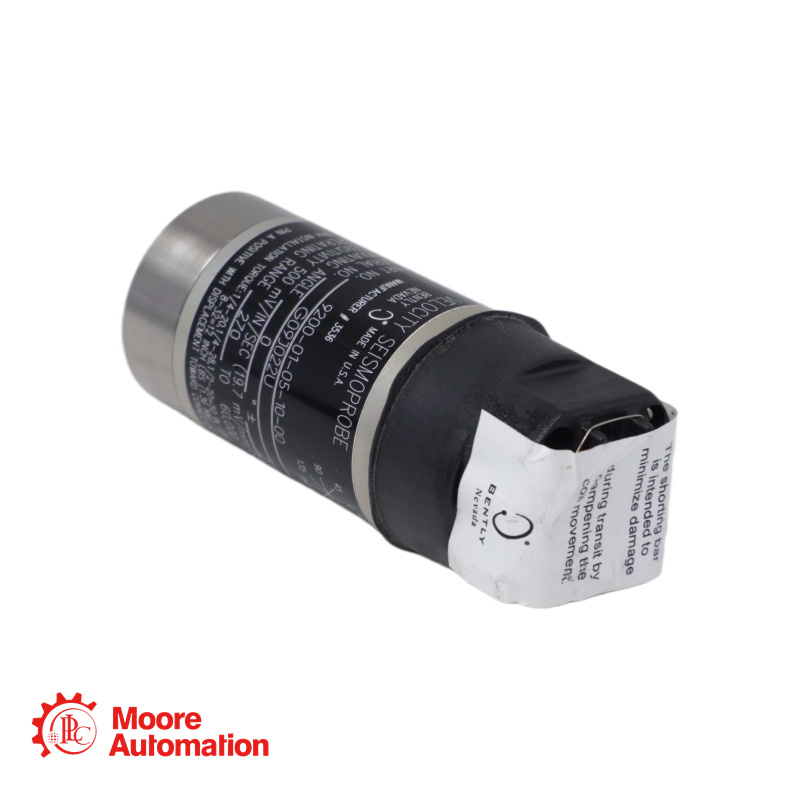

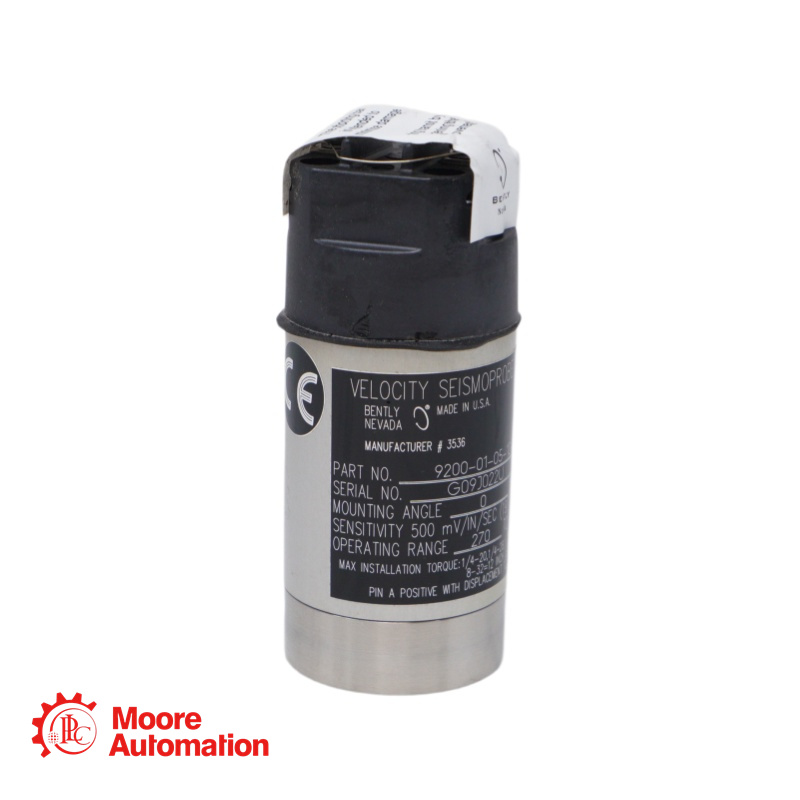

9200-09-01-06 - BENTLY NEVADA Two-wire Transducer

BENTLY NEVADA 9200-09-01-06

Sales Manager: Frida

Email: sales5@mooreplc.com

The 9200-09-01-06 is a two-wire transducer suitable for continuous monitoring or for periodic measurements in conjunction with test or diagnostic instruments. When ordered with the integral cable option, the 9200 has excellent resistance to corrosive environments without need of additional protection.

9200-AA-BB-CC-DD

A: Transducer Mounting Angle/Minimum Operating Frequency Option: 09 0 ±180, 15 Hz (900 cpm)

B: Connector/Cable Option: 01 Top Mount (no cable)

C: Mounting Base Option: 06 Isolated circular 1/4-20 UNC stud

Q: Does the 9200 transducer require an external power supply?
A: No. The 9200 series uses a two-wire design. It is self-generating and operates using a constant current source provided by the monitor system, converting vibration velocity directly into a voltage signal.
Q: What is the main difference between moving-coil and solid-state velocity transducers?
A: Moving-coil transducers (like the 9200) are less sensitive to cross-axis vibration and shock compared to solid-state transducers, which are actually accelerometers with internal integration electronics.
Q: What should I consider regarding the mounting orientation?
A: You must install the transducer within the specific orientation angle designated by its option code (e.g., option "09" is for \(0^{\circ} \pm 180^{\circ}\)). Incorrect orientation will lead to measurement errors or premature wear.
