 /74712-06-02-03-00 Bently Nevada Seismoprobe Velocity Transducer
74712-06-02-03-00
74712-06-02-03-00
74712-06-02-03-00

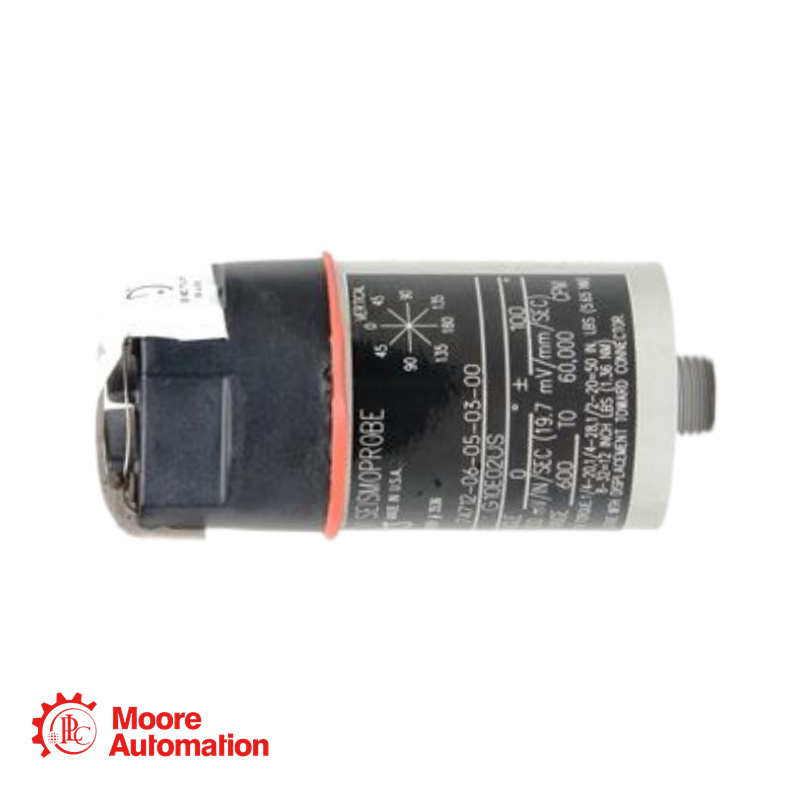

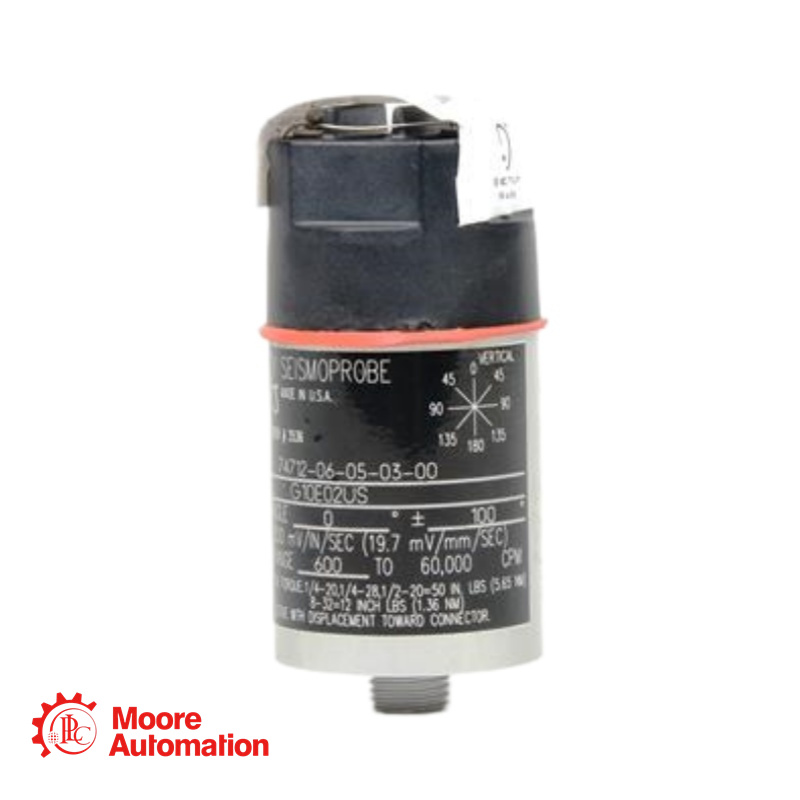

74712-06-02-03-00 Bently Nevada Seismoprobe Velocity Transducer

The Bently Nevada 74712-06-02-03-00 is a high-temperature, two-wire moving-coil velocity transducer from the Seismoprobe family

  • Marque :

    Bently Nevada

  • Numéro d'article :

    74712-06-02-03-00

  • Pays d'origine :

    USA

  • Code SH :

    8537101190

  • La description :

    Seismoprobe Velocity Transducer
Renseignez-vous maintenant

Click Here To Get Price: Frida Zhang (Sales Champion)

sales5@mooreplc.com

+86 15359408275


PRODUCT
INTRODUCTION

Basic Information

Product ID: 74712-06-02-03-00
Product Type: High-Temperature Seismoprobe Velocity Transducer
Measurement Type: Absolute (free space) bearing housing, casing, or structural vibration
Technology: Two-wire moving coil (electrodynamic)

Product Specification

Mounting Angle / Min. Frequency (Option A-06): 0°±100°, 10 Hz (600 cpm)
Mounting Base (Option B-02): Isolated circular base for 1/4-28 UNF stud
Connector (Option C-03): Terminal block top mount
Agency Approvals (Option D-00): No approvals
Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% at calibration angle
Frequency Response: From minimum operating frequency (10 Hz) to 1 kHz (60,000 cpm); +0, -3 dB typical
Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement
Shock Resistance: Withstands 50 g peak maximum acceleration along non-sensitive axis
Transverse Sensitivity: ±10% maximum


OUR
PRODUCT
INTRODUCTION

Product Description

The Bently Nevada 74712-06-02-03-00 is a high-temperature, two-wire moving-coil velocity transducer from the Seismoprobe family, specifically engineered for absolute casing and structural vibration measurements in extreme thermal environments up to +204°C (+400°F). Unlike solid-state accelerometer-based sensors, the moving-coil design inherently rejects high-frequency impulsive excitation, delivering a clean voltage signal directly proportional to vibration velocity without requiring external power.
