729798-01 - LEINE LINDE encoder

LEINE LINDE 729798-01 encoder

Sales Manager: Frida

Email: sales5@mooreplc.com

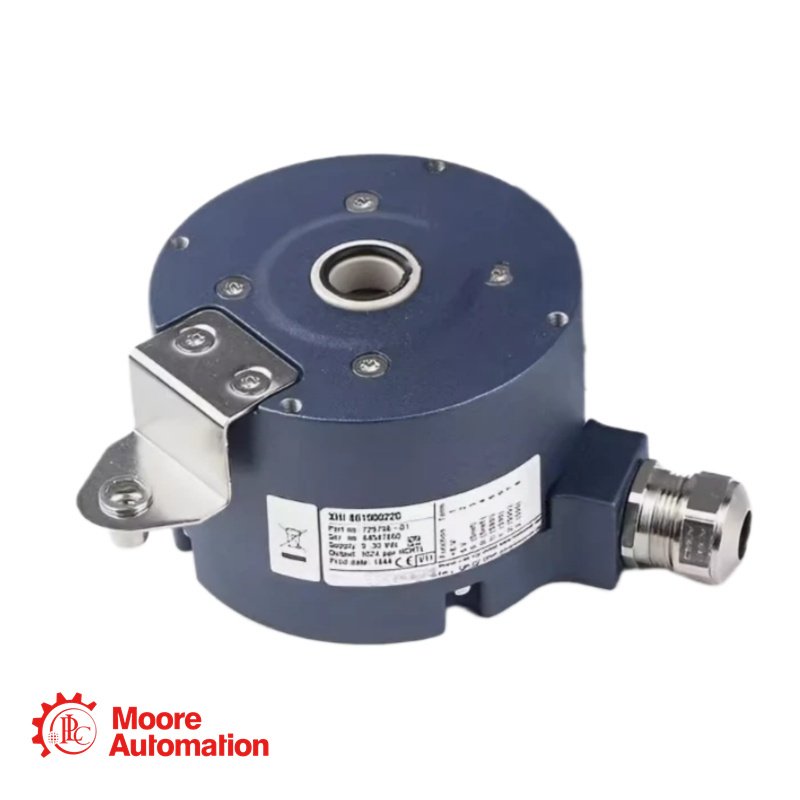

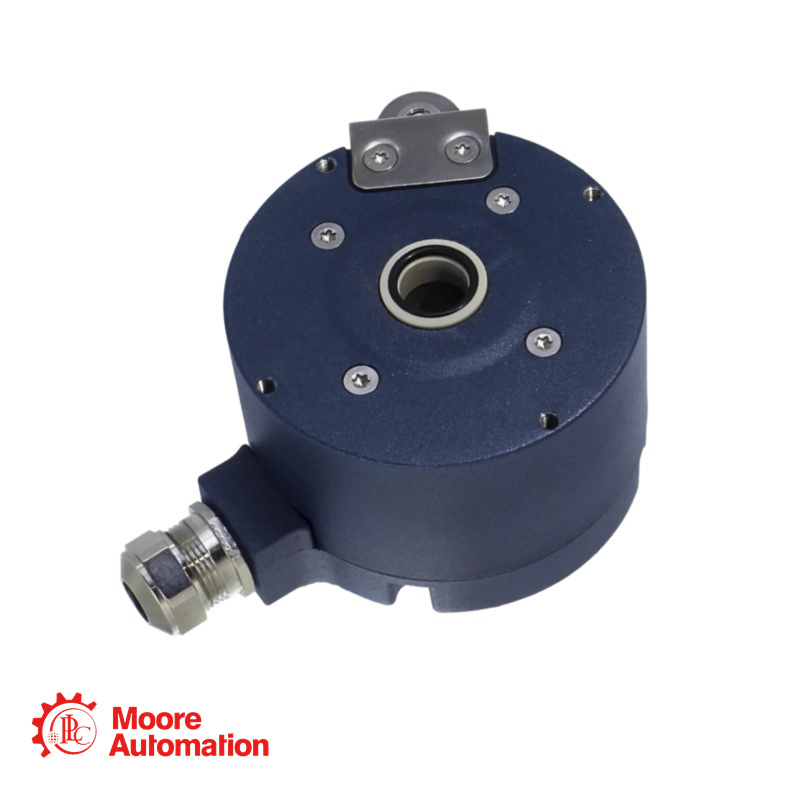

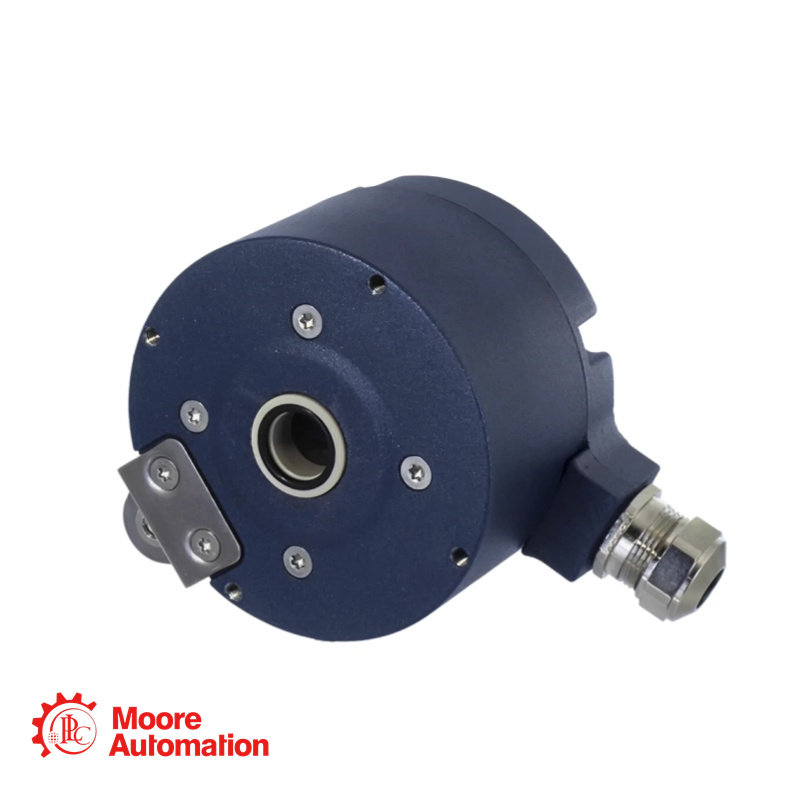

729798-01 is the XHI 861 series heavy-duty incremental hollow shaft rotary encoder manufactured by the renowned Swedish brand Leine Linde. This product is commonly used for high-reliability speed measurement and positioning in heavy industries such as wind power generation, steel, and papermaking.

Operating temperature:-20 °C...+85 °C

Ingress protection class[IEC 60529]:IP67 (IP66 at shaft inlet)

Vibration [IEC 60068-2-64]:≤ 20 g, 55-2000 Hz

Shock [IEC 60068-2-27]:≤ 400 g, 3.5 ms

Shaft load max (axial/radial):500 N / 1200 N

Rotational speed:max 6000 rpm

Shaft material:Stainless steel with insulated peek insert

Cover material:Aluminium (coated)

What are the primary industrial applications for the 729798-01 encoder?

A: Due to its extreme ruggedness and superior shock resistance, this model is widely used in harsh heavy industry applications, such as large industrial electric motors (VFD drives), steel rolling mills, paper machinery, cranes, and wind turbines.

What electrical protections are built into the device?
A: The unit includes robust polarity reversal protection for the power supply inputs and short-circuit protection for all incremental signal outputs. If wires are accidentally swapped or shorted during commissioning, the encoder internal circuits will not burn out.
