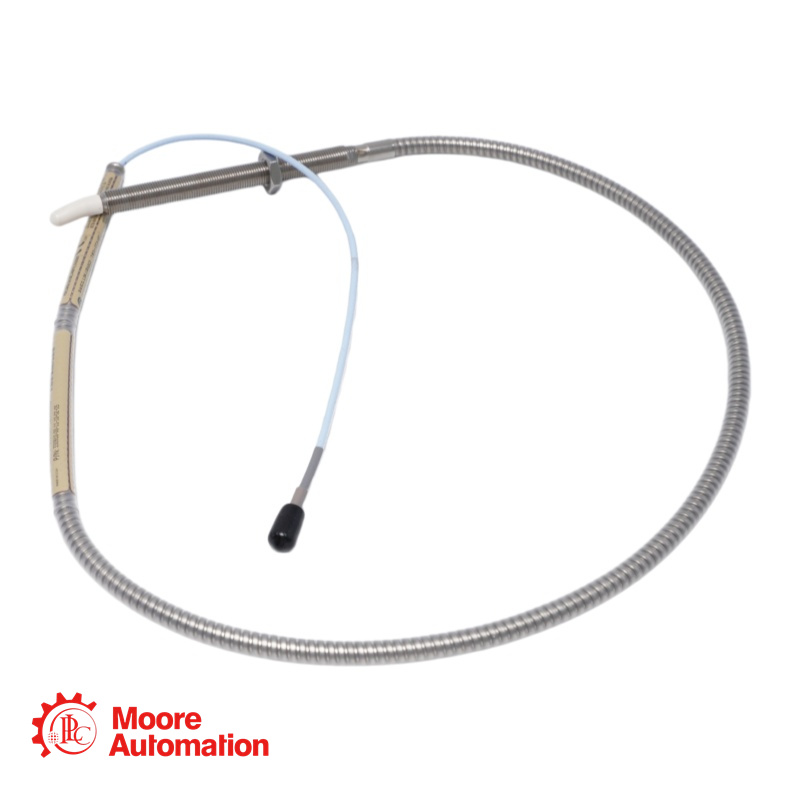

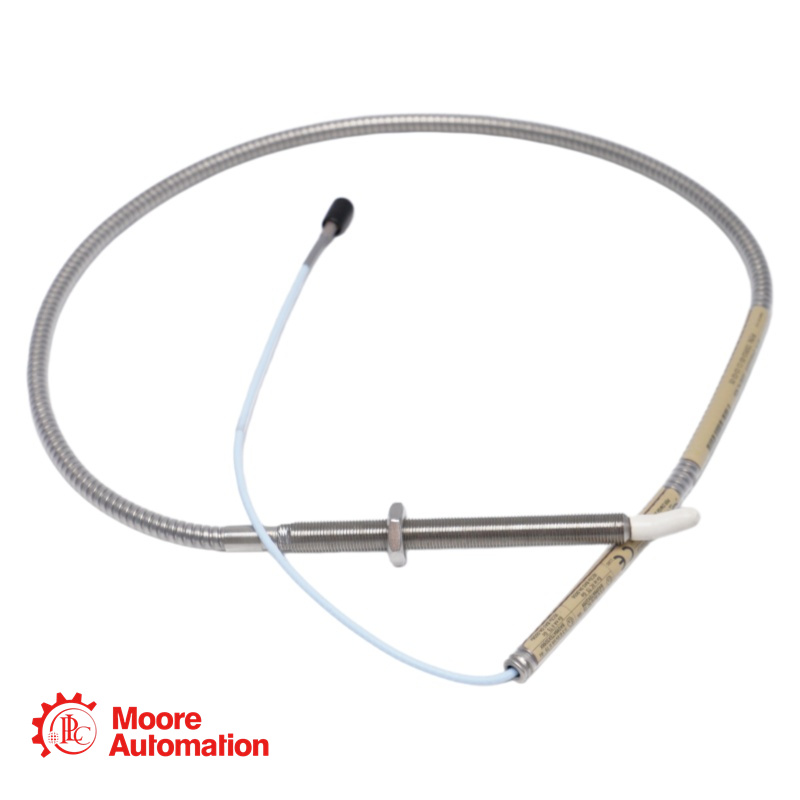

3300 NSv Probe, M10X1 thread, with armor
Marque :
Bently NevadaNuméro d'article :
330910-00-16-10-01-00Lester :
0.1 kgDimension :
18x18x2cmPays d'origine :
USACode SH :
8537101190La description :
NSv Proximity Probe
330910-00-16-10-01-00
The 330910-00-16-10-01-00 is a 3300 NSv Proximity Probe with M10 x 1 threads and armor. It is part of the 3300 XL NSv Proximity Transducer System, which uses eddy current technology to measure static position and dynamic vibration. This system is specifically designed for applications with tight installation requirements, such as centrifugal air compressors, refrigeration compressors, and process gas compressors where counterbore, sideview, or rearview restrictions limit the use of standard 3300 and 3300 XL 5 and 8 mm transducer systems.
The 3300 XL NSv system is also ideal for small target applications, including radial vibration measurements on shafts smaller than 51 mm (2 in) and axial position measurements on flat targets smaller than 15 mm (0.6 in).
Specifications: 330910-00-16-10-01-00
Part Number-AA-BB-CC-DD-EE
Parameter
Specification
Base Model
330910
Probe Type
3300 NSv Proximity Probe, M10 x 1 thread, with armor
Unthreaded Length (Option A)
0 mm (00)
Overall Case Length (Option B)
160 mm (16)
Total Length (Option C)
10: 1.0 meter (39 inches)
Connector and Cable Type (Option D)
01: Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval (Option E)
00: Not required
Electrical Specifications
Parameter
Specification
Linear Range
1.5 mm (60 mils) from approximately 0.25 to 1.75 mm (10 to 70 mils)
Incremental Scale Factor (ISF)
7.87 V/mm (200 mV/mil) +12.5% / -20% including interchangeability error over the 1.5 mm linear range (0°C to 45°C)
Recommended Gap Setting
1.0 mm (40 mils)
Nominal Probe DC Resistance
4.2 Ω ± 0.5 Ω (for 1.0 meter probe length)
Frequency Response
0 to 10 kHz: +0, -3 dB typical, with up to 305 meters of field wiring
330910-00-16-10-01-00 FAQ
Q: What is the overall case length for this probe?
A: The overall case length (Option B) is 160 mm (16). This is longer than the standard 90 mm case length, making it suitable for deeper mounting applications.
Q: What does the 00 in Option A (Unthreaded Length) indicate?
A: The 00 indicates an unthreaded length of 0 mm. This means the threads extend all the way to the probe tip, with no smooth, unthreaded section between the tip and the start of the threads.
Q: Does this probe include a connector protector?
A: Yes. Option D 01 includes a miniature coaxial ClickLoc connector with connector protector. Connector protectors prevent most liquids from entering the ClickLoc connectors and adversely affecting the electrical signal.
Q: What is the total length of this probe?
A: The total length (Option C) is 1.0 meter (39 inches) . This probe is designed for use with extension cables where the combined length matches the Proximitor sensor total length (5 or 7 meters).
Q: What is the recommended gap setting for this probe?
A: The recommended gap setting is 1.0 mm (40 mils) .
|
